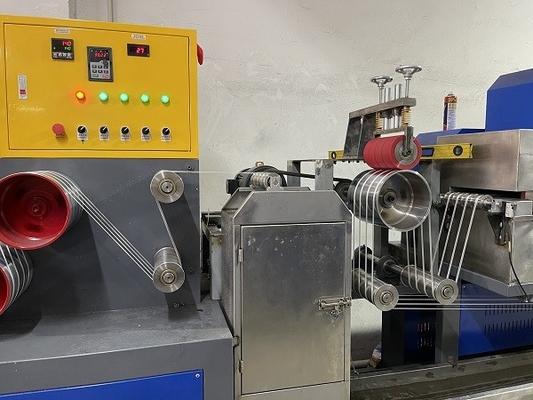

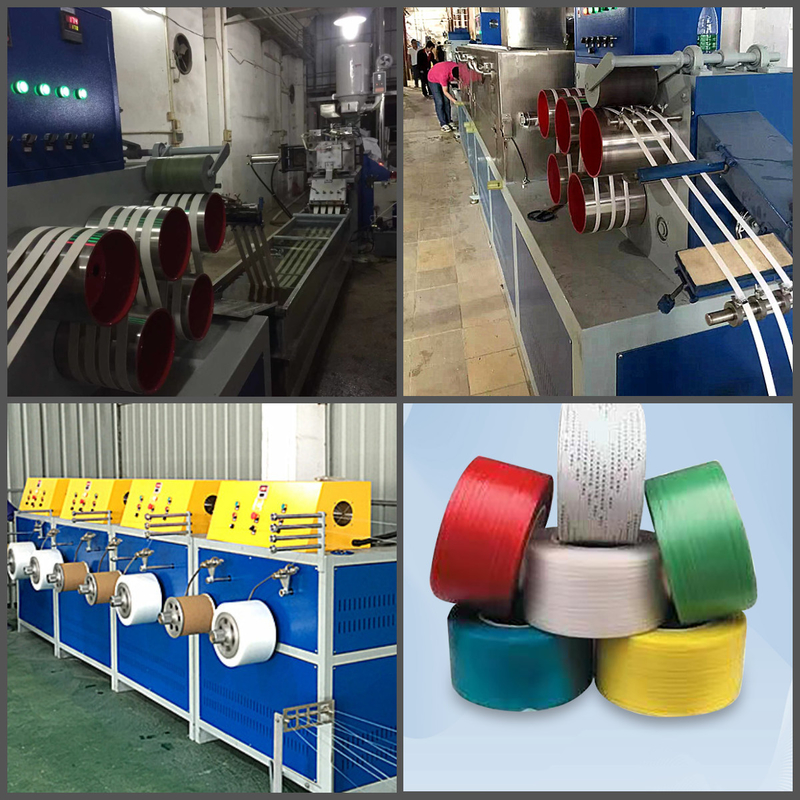

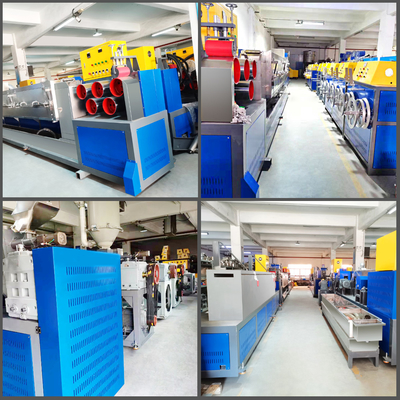

PET Polyester PP Strap Making Machine PLC Control Production Line

PET Polyester PP Strap Making Machine PLC Control Production Line
PET Polyester PP Strap Making Machine PLC Control Production Line
PET Polyester PP Strap Making Machine PLC Control Production Line PET Polyester PP Strap Making Machine PLC Control Production Line PET Polyester PP Strap Making Machine PLC Control Production Line PET Polyester PP Strap Making Machine PLC Control Production Line

Large Image :  PET Polyester PP Strap Making Machine PLC Control Production Line

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JT-PP
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50set/month
Contact Now

PET Polyester PP Strap Making Machine PLC Control Production Line

Description
Name: PP Strapping Tape Production Line Plastic Processed: PP
Processing Type: Extruding Machine Twin Screw Type: Co-rotating Parallel Twin-screw
Winding Machine: Automatic Or Semi-automatic Application: PLC
Highlight:

0.4mm PP Strap Making Machine

,

1.2mm PP Strap Making Machine

,

0.4mm PET Strap Extrusion Line

PET Polyester PP Strap Making Machine PLC Control Production Line



PP strapping production line FOR 100% PP new material or recycled material



Features Of Plastic PP Extrusion Line

1.PP polypropylene strapping tape extrusion line can produce PP new material/recycled material for use. This makes it an ideal solution for companies that want to reduce costs. The equipment is equipped with a high-quality extruder that can produce polypropylene strapping tape with a width of 5-19mm and a thickness of 0.4-1.2mm, with an error range much smaller than the national inspection standard.

(1) Safety and environmental protection:safe for use, not easy to hurt, according with EU environmental directives, for example ROSH.

(2) Low cost:It is the most cost-effective in new environmentally friendly packaging materials products.

(3) Easy to use:Suitable for fully automatic balers, manual balers and other packaging machinery quickly and convenient to use.

(4) Excellent toughness: Between -50 ~ 100 ºC temperature, it is fully capable of normal use, and maintains excellent flexibility.

100% PP new material or recycled material


Specification Of PP Strap Production Line



Model No. PP-2 PP-3 PP-4 PP-6 PP-8 PP-2-2 PP-2-4
Production material PP Recycled /
raw material		 PP Recycled /
raw material		 PP Recycled /
raw material		 PP Recycled PP Recycled PP Recycled PP Recycled
Number of tapes 2 3 4 6 8 4 6
Outgoing bandwidth
(mm)		 5~19 5~19 5~19 9~19 9~19 9~19 9~19
Outlet thickness
(mm)		 0.4-1.2 0.4-1.2 0.4-1.2 0.4-1.2 0.4-1.2 0.4-1.2 0.4-1.2
Extrusion capacity
(kg/h)		 120 180 240 360 480 120 240
Maximum linear speed
(m/min)
≥250
≥250
≥250
≥250
≥250
≥250
≥250
PLC control system PLC control PLC control PLC control PLC control PLC control PLC control PLC control
Screw model 90 100 110 125 135 90/65 110/75
Reducer model 200 200 225 250 280 200/173 225/173
Automatic dryer hopper 100KG 100KG 150KG 200KG 250KG 100/100KG 100/150KG
Screen changer Manual / Auto Manual / Auto Manual / Auto Manual / Auto Manual / Auto Manual / Auto Manual / Auto
Production capacity/24H 2.8 tons 4.3 tons 5.7 tons 8.6 tons 11.5 tons 2.8 tons tons




PET Polyester PP Strap Making Machine PLC Control Production Line 0
FAQ ABOUT PP STRAPPING BAND EXTRUSION LINE

1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw;
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw;

 FQA:

Q: What is the minimum order quantity of the PP strapping tape production line?
A: MOQ: 1 set
Q: What is the extrusion output of the PP strapping tape production line?
A: 80-600KG/H. Different models have different extrusion capacities.
Q: How many strips can the PP strapping tape production line produce?
A: 1-12 strips
Q: What is the price of the PP strapping tape production line?
A: The price varies for different models and can be negotiated.
Q: What is the voltage of the PP strapping tape production line?
A: Standard: 380V/50HZ, which can be customized according to customer requirements.
Q: How long is the delivery date of the PP strapping tape production line?
A: 30-40 Days
