PP Strap Making Machine PP strapping belt production 5mm PP strap for  PLC control system

PP Strap Making Machine PP strapping belt production 5mm PP strap for  PLC control system

DESCRIPTION OF PP STRAP MAKING MACHINE:

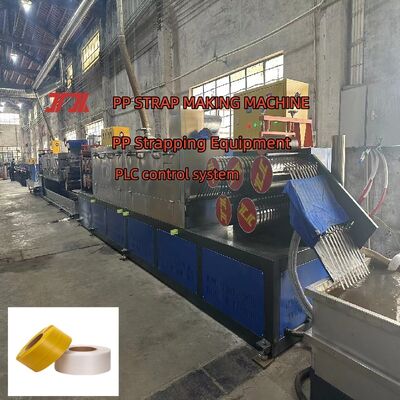

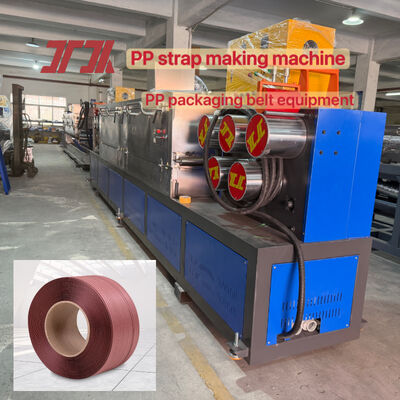

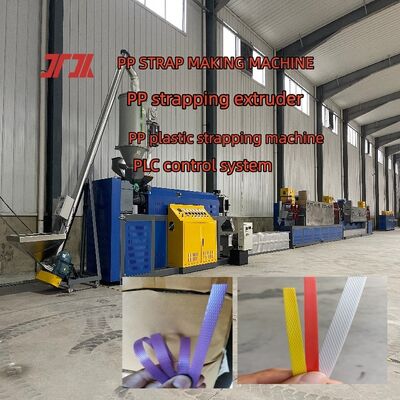

PP strap making machine &PP strapping belt production line is a high-end intelligent extrusion equipment that can produce PP strap: width: 5-19mm, thickness: 0.3-1.2mm

1.Raw materials-----PP strapping equipment can produce plastic raw materials:

100%recycled materials or PP polypropylene new materials to produce strapping belt;

2.Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping belt acceptance standards;

3.Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.

4. PLC system----The equipment adopts an intelligent PLC Chinese/English version control system, which is simple and easy to understand, beautiful and generous, sturdy and durable, long life, and low failure rate. The equipment has an exclusive parameter memory system, which can store data after each specification is produced, and the parameters can be directly adjusted during the next production.

5.Oven----Constant temperature intelligent oven, with multiple heating tubes inside, uses electricity to generate heat energy, reaches the set temperature, and automatically stops heating, with low power consumption and less loss.

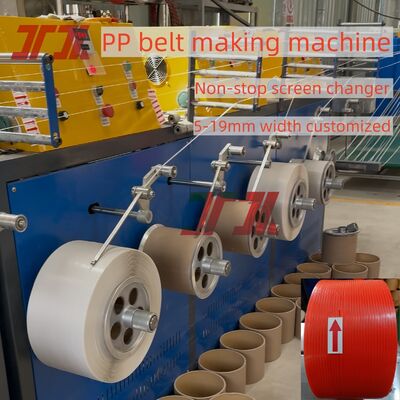

6.Winding machine----can be matched with automatic winding machine (automatic roll changing, automatic belt cutting, automatic stop), servo motor control, no manual operation required.
7.Embossing wheel----TEmbossing wheel---The upper and lower patterns are consistent, the lines are clear, the patterns are neat, the embossing is adjustable, the quality is high-end, the material is SKD-11, wear-resistant and durable.

Key Advantages of PP strap making machine

• Automatic Winding Machine:   Servo-controlled winding with tension feedback keeps each coil evenly wound, cutting manual handling and operator fatigue.
• High Capacity 220-250kg/H:   A high-efficiency screw and barrel set pushes output to 250kg/H, ideal for 24/7 strap production lines.
• Special Custom Screw Barrel:  Wear-resistant nitrided screw and barrel with a tailored compression ratio, matched to your virgin or recycled PP resin formula.

Technical Specifications of PP strap making machine

PP STRAP MAKING MACHINE PROCESS FLOW:

① Raw materials → ② Raw material mixing → ③ Raw material pre-drying → ④ Main machine melting of raw materials - extrusion → ⑤ Material blank (strip blank) cooling and shaping → ⑥ Oven heating and shaping → ⑦ Primary stretching → ⑧ Secondary stretching → ⑨ Embossing → ⑩ Oven tempering and shaping → ⑪ Cooling → ⑫ Finished product winding (online printing of fonts is supported)

Machine Highlights:

Automatic addition of calcium carbonate powder reduces costs

PLC control system, capable of storing production data for 99 specifications

Energy-saving and environmentally friendly, high output, low power consumption

Stable operation, low failure rate

Each unit is driven by a variable-frequency motor and equipped with an intelligent temperature control system, ensuring energy efficiency, uniform plasticization, and consistent product quality. Key advantages include environmental friendliness, energy savings, and high productivity. The equipment meets CE certification standards and utilizes professional-grade 38CrMoALA screws, making it capable of meeting the demands of high-intensity packaging facilities for continuous, round-the-clock production.

 ABOUT AFTER-SALES

We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:

Pre-sales:

1.Layout plan of PP belt making machine.

2.Analysis of the cost of PP strap making machine.

3.Raw materials that can be used for PP strap making machine.

After-sales service:

1.Water and electricity circuits of PP strap making machine, circuit drawings, etc.

2.Installation, commissioning and training of PP strap making machine.

3.Maintenance service of PP strap making machine.

4.Regular maintenance and repair

5.Troubleshooting and diagnosis

6.Software updates and upgrades

7.Spare parts and accessories

8.Training and technical advice

FAQ

Q: What is the voltage of the PP strap extrusion line?
A: 380V/50HZ 3Phase, and we support customization.

Q: Can the production line be customized to the factory length?
A: Yes, we can customize the line length according to the customer factory size.

Q: Where is the equipment produced?
A: We are a manufacturer based in Shenzhen, China.

Q: Do you provide after-sales service?
A: Yes, our engineers provide 24-hour online guidance.

Q: Is the quality stable?
A: We have 30 years of manufacturing experience and our own PP strap production plant, so the process and quality are reliable.

Q: Does the equipment support customization?
A: Yes, as a manufacturing plant we can customize model size, extrusion capacity and voltage to your requirements.
