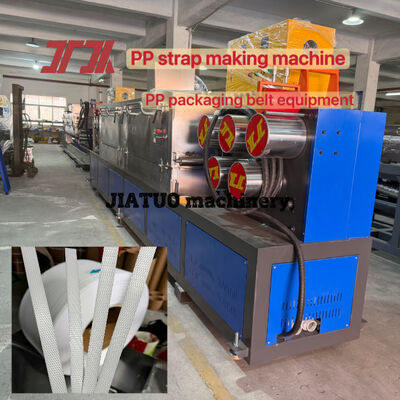

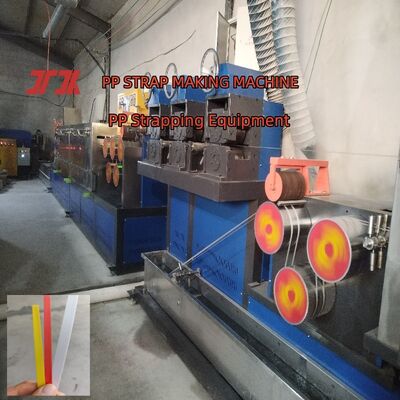

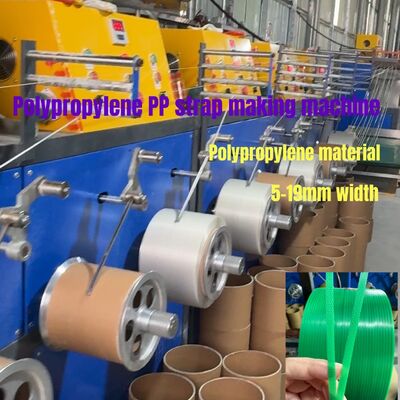

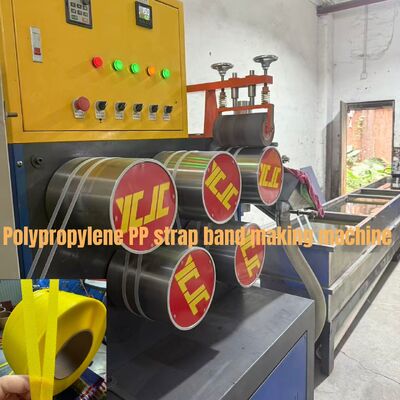

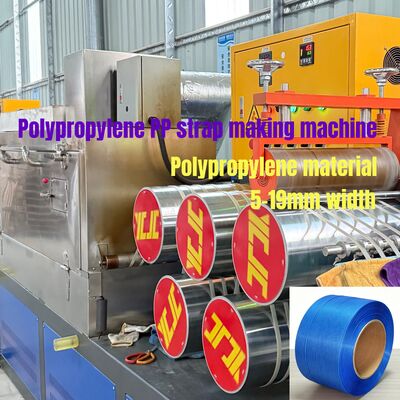

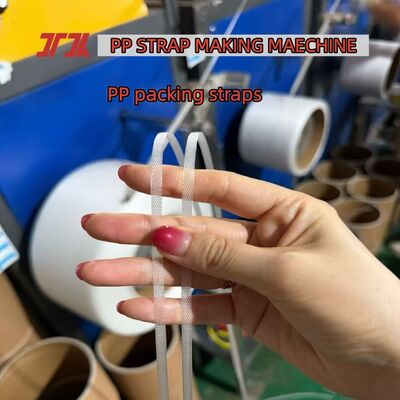

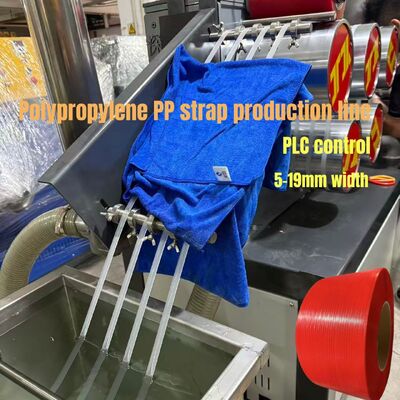

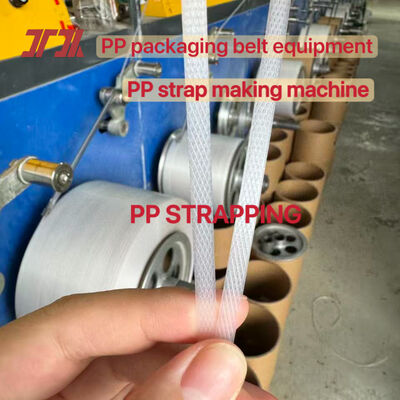

PP strapping production line high-speed PP strap making machine for automatic strapping tools.
DESCRIPTION OF PP STRAP MAKING MACHINE:
Made from 100% virgin or recycled PP polypropylene, the finished PP strapping is suitable for use in semi-automatic/fully automatic/ultra-thin high-speed strapping machines.
PP strap making machine &PP strapping belt production line is a high-end intelligent extrusion equipment that can produce PP strap: width: 5-19mm, thickness: 0.3-1.2mm
KEY PRODUCT ADVANTAGES:
1. High Extrusion Output & Efficient Mass Production-----
Optimized screw extrusion structure ensures high-speed, continuous output and stable 24-hour mass production. Capacity far exceeds that of competing equipment, making it ideal for large-scale factory operations and significantly boosting shipment efficiency.
2. Ultra-low Power Consumption & Cost Savings------
Features a comprehensive variable-frequency energy-saving system and zone-based temperature control, reducing overall energy consumption by 30%. High-efficiency operation at lower power levels cuts long-term electricity costs and increases profit margins.
3. Intelligent, Fully Automated System-----
Centralized control via an intelligent PLC touchscreen, featuring automatic screen changing, automatic winding, and self-diagnostic capabilities. Requires minimal manual supervision, reducing labor management costs while offering ease of operation and high fault tolerance.
4. Eco-friendly & Compliant-----
Closed-loop production prevents pollution; supports waste material recycling. Low-carbon and environmentally friendly, meeting international environmental standards.
5. Broad Compatibility & High Cost-Performance-----
Compatible with various raw materials, including virgin resin, recycled material, and calcium carbonate blends. Capable of producing strapping in multiple specifications. Features low failure rates, simple maintenance, low initial investment, and high returns.
6. Superior Product Quality & Strong Market Competitiveness------
Produces PP strapping with stable tensile strength, a smooth finish, and consistent quality. Compatible with various automated strapping machines and highly recognized in the market.
PARAMETER TABLE
|
Model
|
PP-2
|
PP-4
|
PP-6
|
PP-8
|
PP-10
|
PP-12
|
|
Raw material
|
PP polypropylene new material/recycled material
|
|
Number of tapes
|
2
|
4
|
6
|
8
|
10
|
12
|
|
Width(mm)
|
5-19
|
5-19
|
5-19
|
5-19
|
5-19
|
5-19
|
|
Thickness(mm)
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
|
Line speed(m/min)
|
≧260-300
|
|
PLC control system
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
|
Screw Model
|
90
|
110
|
125
|
135
|
135
|
135
|
|
Reducer model
|
200
|
220
|
250
|
280
|
280
|
280
|
|
Winding machine
|
Automatic winding machine /Semi-automatic winding machine
|
|
Screen Changer
|
Automatic/Manua
|
|
Production capacity 24H
|
2.5-3T
|
6-7T
|
8-9T
|
10-11T
|
12-13T
|
13--14T
|
Process flow of PP packing belt production line
① Feeding →② stirring →③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven preheating →⑦ primary stretching →⑧ secondary stretching →⑨ embossening → ⑩oven tempering and setting →⑪ cooling →⑫ finished product winding
PP STRAP MAKING MACHINE /PP strapping production equipment is a high-speed extrusion machine using 100% PP (polypropylene) fiber-grade raw materials. It can produce PP strapping with a width of 5-19mm.
Raw Materials------ The equipment can use virgin polypropylene (PP) granules or recycled materials to produce strapping, meeting the production needs of different customers and ensuring uniform color and stable performance of the strapping.
High-Precision Screw------- Utilizing a high-quality screw from a well-known brand with exclusive parameter design, it boasts advantages such as high extrusion volume, excellent plasticizing performance, high hardness, and wear resistance. Equipped with a quantitative extrusion system, the produced strapping has uniform width and thickness with minimal error, fully meeting national strapping acceptance standards.
Advanced Dies------- The dies are precisely cut using imported CNC machine tools. High-precision dies ensure stable strapping forming, with width and thickness errors controlled within national standards, effectively improving product quality consistency.
The PP strapping production line is a high-end intelligent extrusion equipment that can produce PP straps with a width of 5-19mm and a thickness of 0.3-1.2mm.
Features of sandwich PP straps:
1. Sandwich PP straps are produced by twin-screw extrusion, with the material fed into the extrusion die.
2. It can produce double-layer sandwich PP strapping.
3. The raw material for sandwich PP strapping is usually stone powder masterbatch, saving costs.
4. Sandwich PP strapping equipment can produce: sandwich PP strapping and all-plastic PP strapping, offering multiple options.
About after-sales:
About after-sales service:
Our PP strapping equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PP strapping equipment.
2. Analysis of finished product manufacturing costs of PP strapping equipment.
3. Analysis of raw materials used in PP strapping equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PP strapping equipment.
2. Installation, commissioning and training of PP strapping equipment.
3. Repair service of PP strapping equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
8. Training and technical consultation
ABOUT US:
Shenzhen Jiatuo Plastic Machinery Co., Ltd. is a manufacturer and supplier of strapping equipment and strapping products, integrating production and sales.
FACTORY SALES:
PP strapping equipment, PET strapping equipment, PP strapping, PET Packing belt, PE stretch film, transparent tape, semi-automatic/fully automatic strapping machines, handheld electric strapping machines, etc.
We currently have 4 companies with strong production capabilities. We have our own sales team, production team, management team, R&D team, quality control team, and after-sales team. We own our own production plant, enabling fast and high-quality delivery. We support customized products. Welcome to inquire.
PET/PP strapping equipment manufacturing plant: 1 pcs
PET packing belt manufacturing plant: 1 pcs
PP strapping manufacturing plant: 1 pcs
Automated equipment factory: 1 pcs
FAQ:
Q: What are the specifications that the PP strapping production line can produce?
A: Width: 5-19mm, thickness: 0.3-1.2mm.
Q: What's the price of this machine please?
A: We have different extrusion capacities and different models, and the corresponding prices are also different.
Q:Can the length of the PP strapping production line be customized?
A: YES
Q:What is the transaction method of PP strapping production line?
EXW ,FOB,CIF
