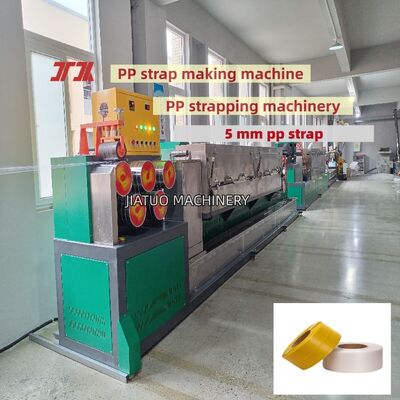

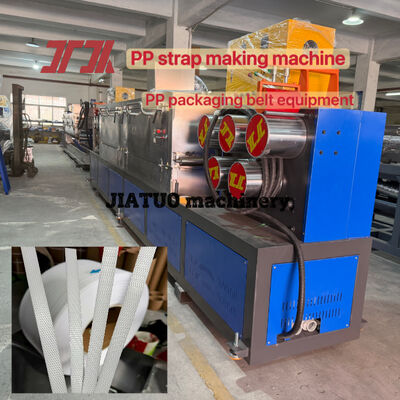

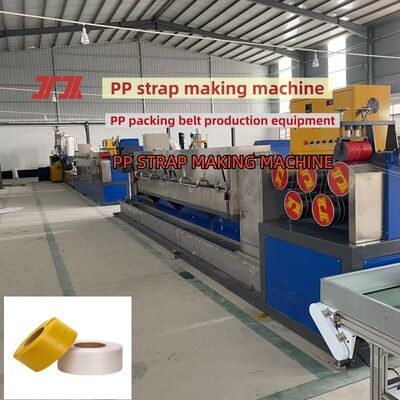

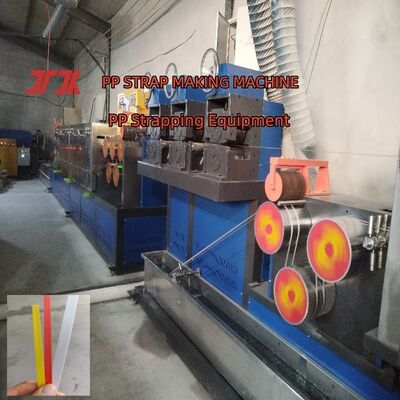

Automatic PP strap making machine PP Strapping Production Line for Automatic Strapping Machines
This high-end intelligent extrusion equipment produces PP strapping belts suitable for semi-automatic, fully automatic, and ultra-thin high-speed strapping machines. Made from 100% virgin or recycled PP polypropylene, the finished strapping meets industry standards for packaging applications.
PP strap making machine &PP strapping production line features a twin-screw extruder and a "sandwich" structure design; it is engineered for manufacturers requiring high-volume production of premium-quality polypropylene (PP) strapping and offers high output alongside full automation.
Utilizing twin-screw co-extrusion technology (sandwich structure) and PLC control, the line boasts a rated output of 80 to 600 kg per hour and produces strapping with widths ranging from 5 mm to 19 mm and thicknesses from 0.4 mm to 1.2 mm.
KEY FEATURES:
1. Applicable Raw Materials
The PP strapping tape production line offers flexible raw material compatibility. It can utilize 100% recycled PP materials or employ virgin PP (polypropylene) resins for production. This broad scope of material sourcing ensures controllable production costs and effectively meets diverse manufacturing requirements.
2. Core Configuration and Equipment Advantages
High-Precision Specialized Screw
The equipment is outfitted with a high-quality, high-precision screw from a renowned brand. Designed with custom-tailored parameters, it boasts exceptional characteristics such as high extrusion output, superior plasticization efficiency, high hardness, and excellent wear resistance. When paired with a quantitative extrusion system, the resulting strapping tape exhibits uniform and consistent width and thickness, with minimal dimensional deviation, fully complying with national industry acceptance standards for strapping belt.
3. Non-Stop Automatic Screen Changer
The system comes standard with a non-stop automatic screen changer, allowing for screen replacement operations without the need to halt equipment operation—thereby significantly boosting overall production efficiency. Utilizing a large-area, four-screen cyclic filtration structure, it delivers superior filtration performance while eliminating the need for frequent screen replacements; this saves both time and labor, effectively minimizing production losses caused by interruptions.
Machine Specifications
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Number of Tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer Model |
200 |
220 |
250 |
280 |
280 |
280 |
| Production Capacity (24H) |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13-14T |
KEY ADVAGTAGES
Raw Material Flexibility
Processes 100% recycled materials or PP polypropylene new materials to produce high-quality strapping belts.
High-Precision Screw System
Features high-quality screws with unique parameter design, offering large extrusion volume, excellent plasticization, high hardness, and wear resistance. Equipped with quantitative extrusion system for consistent width and thickness.
Automatic Screen Changer
Non-stop automatic screen changer maximizes efficiency with 4-net circulation large-area filtration, eliminating frequent screen changes.
Intelligent PLC Control System
Chinese/English version control system with exclusive parameter memory for easy operation and data storage between production runs.
Constant Temperature Oven
Intelligent oven with multiple heating tubes automatically maintains set temperature with low power consumption.

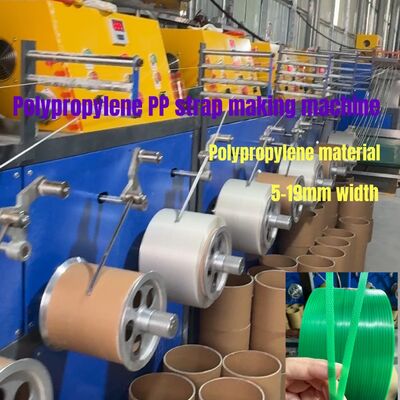

Automatic Winding Machine
Servo motor-controlled automatic winding with roll changing, tape cutting, and automatic stop functions.
Premium Embossing Wheel
SKD-11 material embossing wheels produce clear, consistent patterns with adjustable embossing and high durability.
Production Process Flow
① Feeding → ② Stirring → ③ Pre-drying → ④ Melting and Measuring Extrusion → ⑤ Cooling and Forming → ⑥ Oven Preheating → ⑦ Primary Stretching → ⑧ Secondary Stretching → ⑨ Embossing → ⑩ Oven Tempering and Setting → ⑪ Cooling → ⑫ Finished Product Winding
After-Sales Service
Pre-Sales Support
- PP strapping equipment layout planning
- Finished product manufacturing cost analysis
- Raw materials usage analysis
After-Sales Services
- Equipment installation, commissioning, and training
- Comprehensive technical documentation (waterway diagrams, circuit diagrams, pipeline connections)
- Repair services and regular maintenance
- Fault diagnosis and technical consultation
- Software updates and upgrades
- Spare parts and accessories supply
About Our Company
Shenzhen Jiatuo Plastic Machinery Co., Ltd. is a manufacturer and supplier of strapping equipment and products, integrating production and sales. With 4 specialized factories and comprehensive teams including R&D, production, quality control, and after-sales, we ensure fast delivery and support customized products.
Product Range
- PP and PET strapping equipment
- PP and PET packing belts
- PE stretch film and transparent tape
- Semi-automatic and fully automatic strapping machines
- Handheld electric strapping machines
FAQ
What are the specifications that the PP strapping production line can produce?
Width: 5-19mm, thickness: 0.3-1.2mm.
What's the price of this machine please?
We have different extrusion capacities and models with corresponding price variations.
Can the length of the PP strapping production line be customized?
Yes, customization is available.
What is the transaction method of PP strapping production line?
EXW, FOB, CIF terms available.
