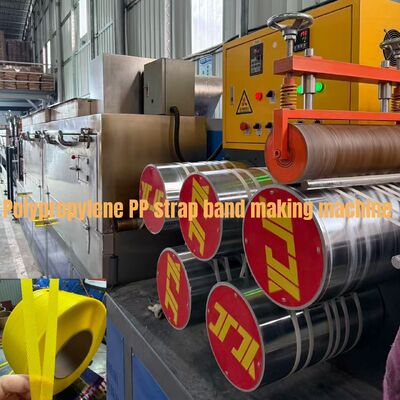

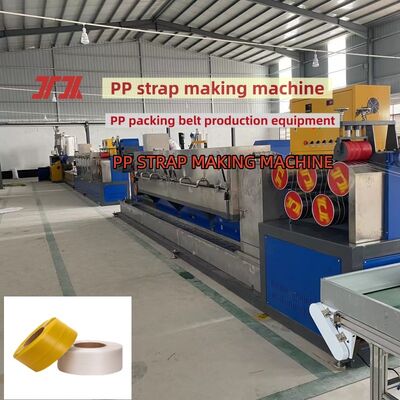

100% Polypropylene PP strapping production line PP strapping machine with automatic screen changer
DESCRIPTION OF PP STRAP MAKING MACHINE:
Made from 100% virgin or recycled PP polypropylene, the finished PP strapping is suitable for use in semi-automatic/fully automatic/ultra-thin high-speed strapping machines.
PP strap making machine &PP strapping belt production line is a high-end intelligent extrusion equipment that can produce PP strap: width: 5-19mm, thickness: 0.3-1.2mm
1.Raw materials-----PP strapping equipment can produce plastic raw materials:
100%recycled materials or PP polypropylene new materials to produce strapping belt;
2.Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping belt acceptance standards;
3.Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.
4. PLC system----The equipment adopts an intelligent PLC Chinese/English version control system, which is simple and easy to understand, beautiful and generous, sturdy and durable, long life, and low failure rate. The equipment has an exclusive parameter memory system, which can store data after each specification is produced, and the parameters can be directly adjusted during the next production.
5.Oven----Constant temperature intelligent oven, with multiple heating tubes inside, uses electricity to generate heat energy, reaches the set temperature, and automatically stops heating, with low power consumption and less loss.

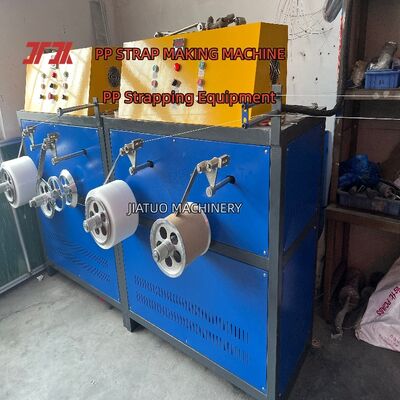

6.Winding machine----can be matched with automatic winding machine (automatic roll changing, automatic tape cutting, automatic stop), servo motor control, no manual operation required.
7.Embossing wheel----TEmbossing wheel---The upper and lower patterns are consistent, the lines are clear, the patterns are neat, the embossing is adjustable, the quality is high-end, the material is SKD-11, wear-resistant and durable.
PARAMETER TABLE
|
Model
|
PP-2
|
PP-4
|
PP-6
|
PP-8
|
PP-10
|
PP-12
|
|
Raw material
|
PP polypropylene new material/recycled material
|
|
Number of tapes
|
2
|
4
|
6
|
8
|
10
|
12
|
|
Width(mm)
|
5-19
|
5-19
|
5-19
|
5-19
|
5-19
|
5-19
|
|
Thickness(mm)
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
|
Line speed(m/min)
|
≧260-300
|
|
PLC control system
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
|
Screw Model
|
90
|
110
|
125
|
135
|
135
|
135
|
|
Reducer model
|
200
|
220
|
250
|
280
|
280
|
280
|
|
Winding machine
|
Automatic winding machine /Semi-automatic winding machine
|
|
Screen Changer
|
Automatic/Manua
|
|
Production capacity 24H
|
2.5-3T
|
6-7T
|
8-9T
|
10-11T
|
12-13T
|
13--14T
|
Process flow of PP packing belt production line
① Feeding →② stirring →③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven preheating →⑦ primary stretching →⑧ secondary stretching →⑨ embossening → ⑩oven tempering and setting →⑪ cooling →⑫ finished product winding
WORKING PROCESS OF STRAPPING EQUIPMENT:
Raw material preparation----Add PP granules into the extruder hopper.
Extrusion molding----PP granules are melted in the extruder and extruded through the mold.
Cooling and shaping----The extruded strapping strap enters the cooling water tank for cooling and shaping.
Traction and stretching---- The traction machine pulls the strapping belt, and the stretching machine performs stretching treatment.
Embossed treatment---- The embossing machine embosses the surface of the strapping belt.
Shaping oven---- Heat and shape the PP strap again to achieve consistent specifications.
Reeling and packaging----The reeling machine winds the strapping tape into a roll and puts it into storage after packaging.
ADVANTAGES:
PP strapping belt equipment is a mechanical equipment used to manufacture polypropylene (PP) strapping belt. It is widely used in the packaging industry and has more advantages:
High degree of automation----PP strapping belt equipment adopts high-speed automation design, PLC control, simple operation and convenient debugging.
High production efficiency----high speed, continuous production, line speed can reach 200-300 m/min.
Stable product quality---Automation control ensures stable product quality, with more than 30 years of experience in manufacturingPP strapping belt equipment .
Energy saving and environmental protection----PP strapping belt equipment adopts energy-saving motors and circulating cooling water systems to reduce energy consumption and pollution.
About after-sales:
About after-sales service:
Our PP strapping equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PP strapping equipment.
2. Analysis of finished product manufacturing costs of PP strapping equipment.
3. Analysis of raw materials used in PP strapping equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PP strapping equipment.
2. Installation, commissioning and training of PP strapping equipment.
3. Repair service of PP strapping equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
8. Training and technical consultation
ABOUT US:
Shenzhen Jiatuo Plastic Machinery Co., Ltd. is a manufacturer and supplier of strapping equipment and strapping products, integrating production and sales.
FACTORY SALES:
PP strapping equipment, PET strapping equipment, PP strapping, PET Packing belt, PE stretch film, transparent tape, semi-automatic/fully automatic strapping machines, handheld electric strapping machines, etc.
We currently have 4 companies with strong production capabilities. We have our own sales team, production team, management team, R&D team, quality control team, and after-sales team. We own our own production plant, enabling fast and high-quality delivery. We support customized products. Welcome to inquire.
PET/PP strapping equipment manufacturing plant: 1 pcs
PET packing belt manufacturing plant: 1 pcs
PP strapping manufacturing plant: 1 pcs
Automated equipment factory: 1 pcs
FAQ:
Q: What are the specifications that the PP strapping production line can produce?
A: Width: 5-19mm, thickness: 0.3-1.2mm.
Q: What's the price of this machine please?
A: We have different extrusion capacities and different models, and the corresponding prices are also different.
Q:Can the length of the PP strapping production line be customized?
A: YES
Q:What is the transaction method of PP strapping production line?
EXW ,FOB,CIF
