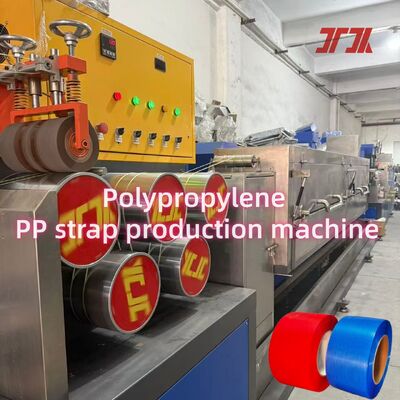

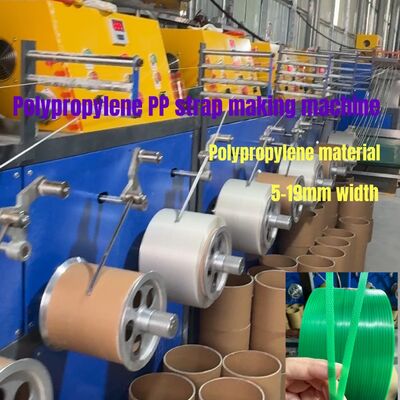

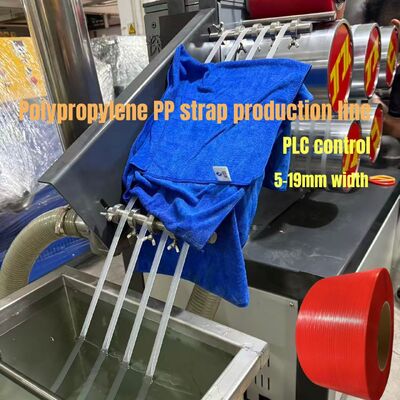

High-speed PP strapping machine 5mm PP strapping production line for automatic strapping tools

High-speed PP strapping machine 5mm PP strapping production line for automatic strapping tools

DESCRIPTION OF PP STRAPPING EQUIPMENT:

PP strapping belt production line is a high-end intelligent extrusion equipment that can produce PP belt: width: 5-19mm, thickness: 0.3-1.2mm

1.Raw materials-----PP strapping equipment can produce plastic raw materials:

100%recycled materials or PP polypropylene new materials to produce strapping belt;

2.Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping belt acceptance standards;

3.Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.

4. PLC system----The equipment adopts an intelligent PLC Chinese/English version control system, which is simple and easy to understand, beautiful and generous, sturdy and durable, long life, and low failure rate. The equipment has an exclusive parameter memory system, which can store data after each specification is produced, and the parameters can be directly adjusted during the next production.

5.Oven----Constant temperature intelligent oven, with multiple heating tubes inside, uses electricity to generate heat energy, reaches the set temperature, and automatically stops heating, with low power consumption and less loss.

6.Winding machine----can be matched with automatic winding machine (automatic roll changing, automatic tape cutting, automatic stop), servo motor control, no manual operation required.
7.Embossing wheel----TEmbossing wheel---The upper and lower patterns are consistent, the lines are clear, the patterns are neat, the embossing is adjustable, the quality is high-end, the material is SKD-11, wear-resistant and durable.

PP STRAP MAKING MACHINE PROCESS FLOW:

① Raw materials → ② Raw material mixing → ③ Raw material pre-drying → ④ Main machine melting of raw materials - extrusion → ⑤ Material blank (strip blank) cooling and shaping → ⑥ Oven heating and shaping → ⑦ Primary stretching → ⑧ Secondary stretching → ⑨ Embossing → ⑩ Oven tempering and shaping → ⑪ Cooling → ⑫ Finished product winding (online printing of fonts is supported)

FEATURES:

• Product Name: PP Strap Making Machine
• Strap Width: 5-19mm
• Screw diameter (mm): 1110*3300mm
• Gearbox model:200#
• Raw material:Polypropylene PP raw material pellets, recycled pellets.
• Motor power: 37kw (Gugao)
• Host inverter:37kw (INVT)
• Screen changer: Non-stop screen changer
• pp strapping band making machine
• strapping band making machine
• pp strap manufacturing machine
• pp strapping band making machine

Technical Parameters of PP Strap Manufacturing Machine:

Applications of PP Strap Manufacturing Machine:

1.The raw materials of the PP strapping production line can be recycled materials or mixed new materials to produce PP strapping.
2.High-precision and high-quality screw, using well-known brands, unique parameter design, large extrusion, good plasticization, high hardness, good wear resistance. Equipped with a quantitative extrusion system. The width and thickness of the belt are the same, and its error range is small, which meets the national acceptance standards for strapping;
3.Foreign high-quality CNC machine tools and high-precision mold parts cutting make the product molding more qualified

KEY FEATURES:
1. Applicable Raw Materials
The PP strapping tape production line offers flexible raw material compatibility. It can utilize 100% recycled PP materials or employ virgin PP (polypropylene) resins for production. This broad scope of material sourcing ensures controllable production costs and effectively meets diverse manufacturing requirements.
2. Core Configuration and Equipment Advantages
High-Precision Specialized Screw
The equipment is outfitted with a high-quality, high-precision screw from a renowned brand. Designed with custom-tailored parameters, it boasts exceptional characteristics such as high extrusion output, superior plasticization efficiency, high hardness, and excellent wear resistance. When paired with a quantitative extrusion system, the resulting strapping tape exhibits uniform and consistent width and thickness, with minimal dimensional deviation, fully complying with national industry acceptance standards for strapping belt.
3. Non-Stop Automatic Screen Changer
The system comes standard with a non-stop automatic screen changer, allowing for screen replacement operations without the need to halt equipment operation—thereby significantly boosting overall production efficiency. Utilizing a large-area, four-screen cyclic filtration structure, it delivers superior filtration performance while eliminating the need for frequent screen replacements; this saves both time and labor, effectively minimizing production losses caused by interruptions.
