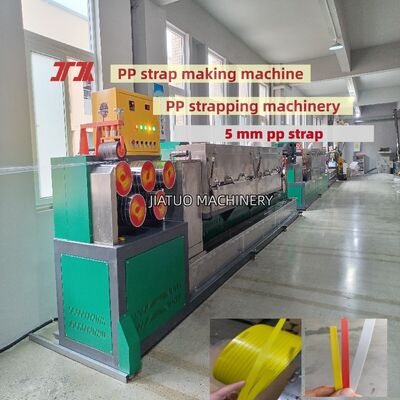

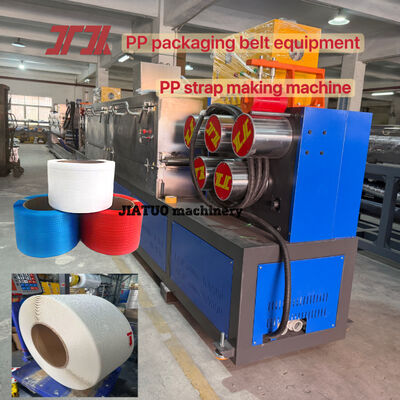

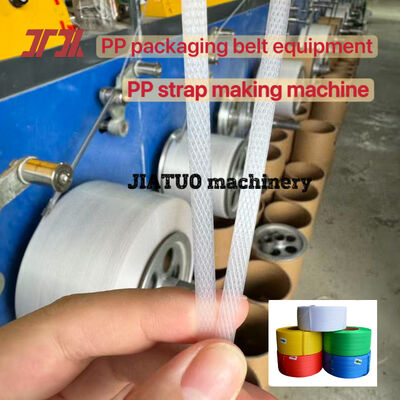

High speed PP strapping production line 12mm PP strap making machine with 100% PP strapping equipment

High speed PP strapping production line 12mm PP strap making machine with 100% PP strapping equipment

PRODUCT DESCRIPTION OF PP STRAP MAKING MACHINE:

PP strapping belt production line is a high-end intelligent extrusion equipment that can produce PP belt: width: 5-19mm, thickness: 0.3-1.2mm

Raw materials-----PP strapping equipment can produce plastic raw materials:

100%recycled materials or PP polypropylene new materials to produce strapping belt;

Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping belt acceptance standards;

Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.

PLC system----The equipment adopts an intelligent PLC Chinese/English version control system, which is simple and easy to understand, beautiful and generous, sturdy and durable, long life, and low failure rate. The equipment has an exclusive parameter memory system, which can store data after each specification is produced, and the parameters can be directly adjusted during the next production.

PP STRAP MAKING MACHINE PROCESS FLOW:

① Raw materials → ② Raw material mixing → ③ Raw material pre-drying → ④ Main machine melting of raw materials - extrusion → ⑤ Material blank (strip blank) cooling and shaping → ⑥ Oven heating and shaping → ⑦ Primary stretching → ⑧ Secondary stretching → ⑨ Embossing → ⑩ Oven tempering and shaping → ⑪ Cooling → ⑫ Finished product winding (online printing of fonts is supported)

Technical Parameters of pp strapping belt making machine:

Core Functions  CORE FUNCTIONS:

1.  High-temperature PP melt, heated and plasticized in the extruder, is uniformly distributed through a precision streamlined flow channel inside the die, precisely shaping the molten raw material into a flat, strip-shaped preform. This strictly limits the width and thickness of the packing strap, providing standardized forming blanks for subsequent cooling, stretching, embossing, and winding processes, ensuring uniform specifications of the finished strip from the source.

 2.The die features an optimized pressure-stabilizing buffer cavity that balances melt pressure fluctuations during extrusion, preventing inconsistent discharge speeds caused by changes in screw speed and material viscosity. Simultaneously, the flow channel undergoes mirror polishing, eliminating dead corners and material accumulation, effectively eliminating surface scratches, bubbles, uneven thickness, and thinness on one side of the packing strap, ensuring uniform density throughout the strip.

PP STRAP MAKING MACHINE /PP strapping production equipment is a high-speed extrusion machine using 100% PP (polypropylene) fiber-grade raw materials. It can produce PP strapping with a width of 5-19mm.

Raw Materials------ The equipment can use virgin polypropylene (PP) granules or recycled materials to produce strapping, meeting the production needs of different customers and ensuring uniform color and stable performance of the strapping.

High-Precision Screw------- Utilizing a high-quality screw from a well-known brand with exclusive parameter design, it boasts advantages such as high extrusion volume, excellent plasticizing performance, high hardness, and wear resistance. Equipped with a quantitative extrusion system, the produced strapping has uniform width and thickness with minimal error, fully meeting national strapping acceptance standards.

Advanced Dies------- The dies are precisely cut using imported CNC machine tools. High-precision dies ensure stable strapping forming, with width and thickness errors controlled within national standards, effectively improving product quality consistency.

SUPPORT AND SERVICES:

PP Strap Making Machine product comes with top-notch technical support and services to ensure your satisfaction. Our team of experts is dedicated to providing you with the best possible experience, including:

• Installation and setup assistance
• Training and support for machine operation
• Regular maintenance and repair services
• Upgrades and customization options
• 24/7 technical support and troubleshooting

FAQ

Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping belt??
A: L:36 M.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.

Q:What does the wrapping machine part of the PP strapping equipment look like?

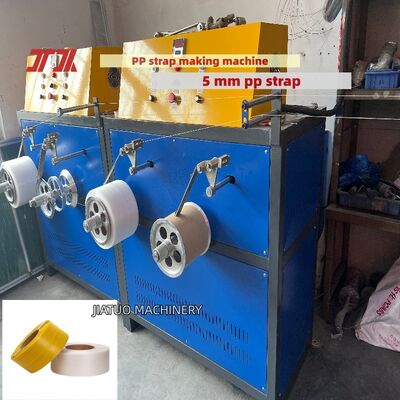

A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
