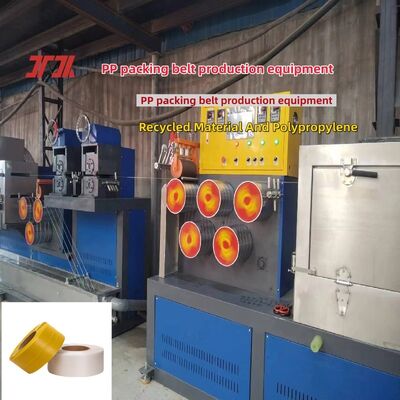

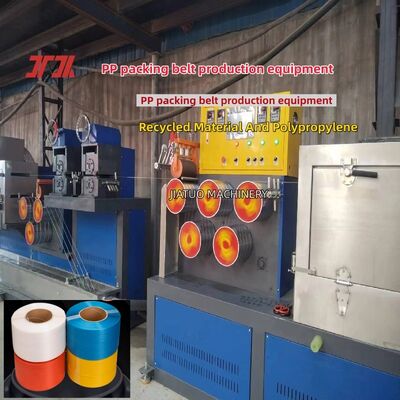

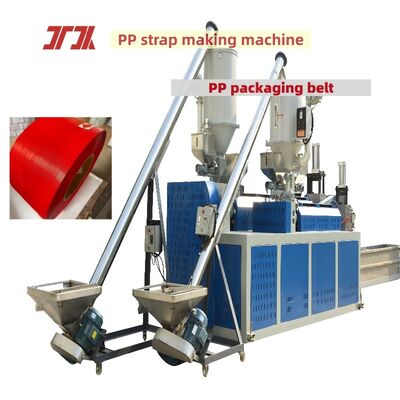

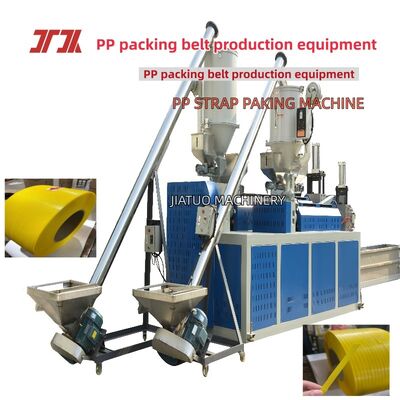

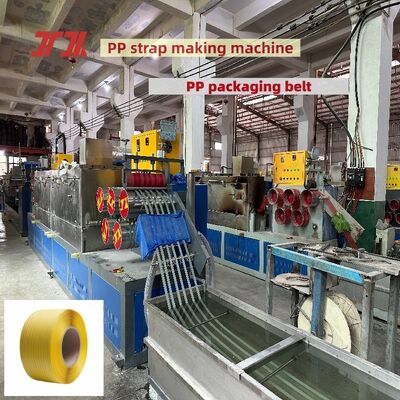

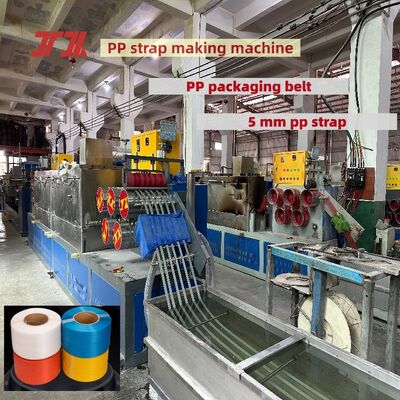

High-speed PP plastic strapping machine 12mm PP strapping machine with a speed of 300-350m/min
DESCRIPTION OF PP PACKAGING BELT PRODUCTION LINE:
PP strap making machune/PP plastic strapping machine is a high-end plastic extrusion equipment used to produce a wide range of PP strapping products. Finished PP strapping can be produced in various colors including transparent, red, yellow, blue, white, and printed with lettering. Its applications are broad, primarily for: cardboard box strapping, appliance strapping, clothing strapping, fruit strapping, e-commerce product strapping, and building material strapping.
KEY HIGHLIGHTS:
Raw Materials-----100% virgin or recycled polypropylene.
Control Method----- PLC control system, configurable for different languages.
Motor----- This equipment uses a high-speed drive motor, ensuring stable and reliable performance with a low failure rate.
EXTRUSION PARAMETERS TABLE
|
Model
|
PP-2
|
PP-4
|
PP-6
|
PP-8
|
PP-10
|
PP-12
|
|
Raw material
|
PP polypropylene new material/recycled material
|
|
Number of tapes
|
2
|
4
|
6
|
8
|
10
|
12
|
|
Width(mm)
|
5-19
|
5-19
|
5-19
|
5-19
|
5-19
|
5-19
|
|
Thickness(mm)
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
|
Line speed(m/min)
|
≧260-300
|
|
PLC control system
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
|
Screw Model
|
90
|
110
|
125
|
135
|
135
|
135
|
|
Reducer model
|
200
|
220
|
250
|
280
|
280
|
280
|
|
Winding machine
|
Automatic winding machine /Semi-automatic winding machine
|
|
Screen Changer
|
Automatic/Manua
|
|
Production capacity 24H
|
2.5-3T
|
6-7T
|
8-9T
|
10-11T
|
12-13T
|
13--14T
|
THE MAIN COMPONENTS OF PP STRAPPING EQUIPMENT:
Feeder---- transfer PP raw materials into the machine.
Extruder----heat and melt the PP raw materials and extrude them into shape.
Molding mold---- make the molten PP strap embryo pass through the mold to form a strip.
Cooling water tank----cool the extruded PP strap embryo to ensure its shaping.
Tractor----pull out the cooled strapping belt to maintain a stable production speed.
Oven---- heat the strapping belt to improve its strength and toughness.
Embossing machine---- emboss the surface of the strapping tape to increase friction and prevent slipping.
Shaping oven----heat again, shape, and make the PP strap more standardized.
Reeler---- reel the strapping tape into rolls for easy storage and transportation.
PP plastic strapping machine is a high-end equipment used to produce PP strapping for a wide range of uses.
Raw materials------100% polypropylene new material or recycled material
Control method------ PLC control system, which can be set to different languages.
Motor------The equipment is driven by High-speed motor, which has stable and reliable performance and low failure rate.
Line speed------ 200-300 m/min
ABOUT AFTER-SALES
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP strap making machine.
2.Analysis of the cost of PP strap making machine.
3.Raw materials that can be used for PP strap making machine.
After-sales service:
1.Water and electricity circuits of PP strap making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP strap making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
ABOUT US:
We have more than 30 years of manufacturing experience in the PP/PET strapping industry, and our R&D and after-sales personnel often go abroad to study;
We are a manufacturing factory with our own production workshop, and all accessories are processed by our own lathes.
We have our own production team, R&D team, after-sales team, sales team, etc.
The quality of the machines we produce is stable and the after-sales service is guaranteed.
FAQ:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
