DESCRIPTION OF PP PACKAGING BELT PRODUCTION LINE:

PP strapping belt production line is a high-end intelligent extrusion equipment that can produce PP belt: width: 5-19mm, thickness: 0.3-1.2mm

1.Raw materials-----PP strapping equipment can produce plastic raw materials:

100%recycled materials or PP polypropylene new materials to produce strapping belt;

2.Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping belt acceptance standards;

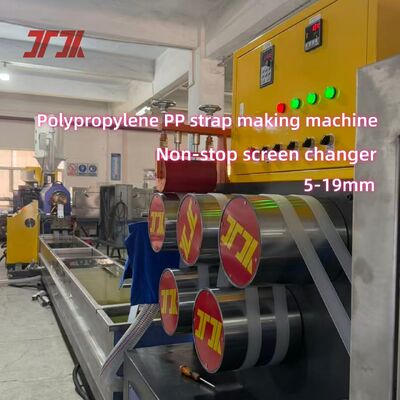

3.Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.

4. PLC system----The equipment adopts an intelligent PLC Chinese/English version control system, which is simple and easy to understand, beautiful and generous, sturdy and durable, long life, and low failure rate. The equipment has an exclusive parameter memory system, which can store data after each specification is produced, and the parameters can be directly adjusted during the next production.

5.Oven----Constant temperature intelligent oven, with multiple heating tubes inside, uses electricity to generate heat energy, reaches the set temperature, and automatically stops heating, with low power consumption and less loss.

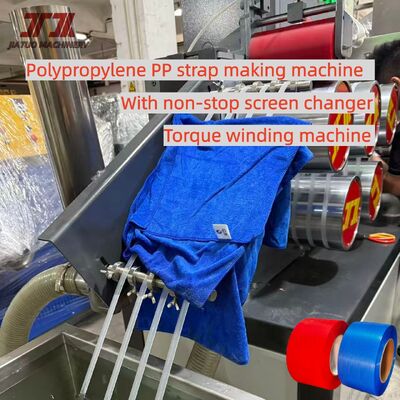

6.Winding machine----can be matched with automatic winding machine (automatic roll changing, automatic tape cutting, automatic stop), servo motor control, no manual operation required.
7.Embossing wheel----TEmbossing wheel---The upper and lower patterns are consistent, the lines are clear, the patterns are neat, the embossing is adjustable, the quality is high-end, the material is SKD-11, wear-resistant and durable.

                                             EXTRUSION PARAMETERS TABLE

THE MAIN COMPONENTS OF PP STRAPPING EQUIPMENT:

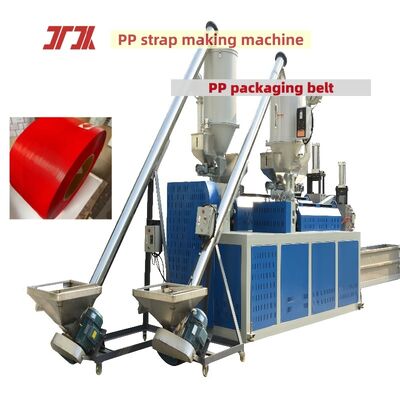

Feeder---- transfer PP raw materials into the machine.

Extruder----heat and melt the PP raw materials and extrude them into shape.

Molding mold---- make the molten PP belt embryo pass through the mold to form a strip.

Cooling water tank----cool the extruded PP belt embryo to ensure its shaping.

Tractor----pull out the cooled strapping belt to maintain a stable production speed.

Oven---- heat the strapping tape to improve its strength and toughness.

Embossing machine---- emboss the surface of the strapping tape to increase friction and prevent slipping.

Shaping oven----heat again, shape, and make the PP belt more standardized.

Reeler---- reel the strapping tape into rolls for easy storage and transportation.

Inspection of PP strap after tempering------Tempering and shaping oven

1. Appearance inspection------

• Check whether there is deformation, cracks or other defects on the strapping surface.

2. Dimension measurement------

• Measure the width, thickness and length of the strapping to ensure that the dimensions meet the standard requirements.

3. Performance test------

• Conduct tensile test and toughness test to ensure that the mechanical properties of the strapping meet the expected standards.

Through the above tempering and shaping steps, the quality and performance of the strapping can be effectively improved, meet the actual use needs, and reduce the bending phenomenon of the PP strap.

ABOUT AFTER-SALES

We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:

Pre-sales:

1.Layout plan of PP belt making machine.

2.Analysis of the cost of PP strap making machine.

3.Raw materials that can be used for PP strap making machine.

After-sales service:

1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.

2.Installation, commissioning and training of PP belt making machine.

3.Maintenance service of PP belt making machine.

4.Regular maintenance and repair

5.Troubleshooting and diagnosis

6.Software updates and upgrades

7.Spare parts and accessories

8.Training and technical advice

About us:

We have more than 30 years of manufacturing experience in the PP/PET strapping industry, and our R&D and after-sales personnel often go abroad to study;

We are a manufacturing factory with our own production workshop, and all accessories are processed by our own lathes.

We have our own production team, R&D team, after-sales team, sales team, etc.

The quality of the machines we produce is stable and the after-sales service is guaranteed.

FAQ:

Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
