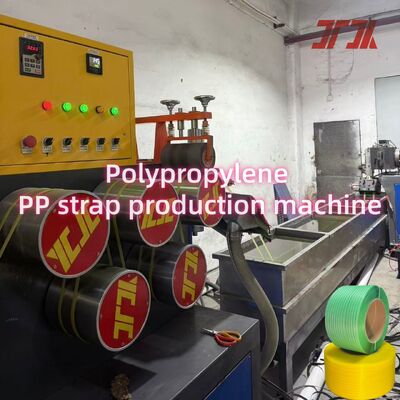

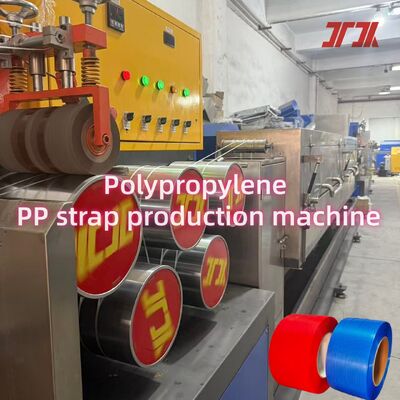

Automatic PP strapping equipment high-speed PP strapping machine with PLC control system
PRODUCT DESCRIPTION FO PP STRAP MAKING MACHINE:
PP strapping belt production line is a high-end intelligent extrusion equipment that can produce PP belt: width: 5-19mm, thickness: 0.3-1.2mm
Raw materials-----PP strapping equipment can produce plastic raw materials:
100%recycled materials or PP polypropylene new materials to produce strapping belt;
Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping belt acceptance standards;

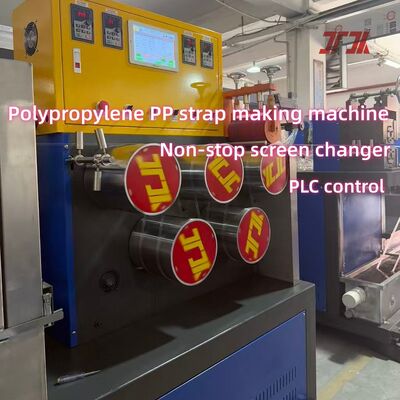

Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.
4. PLC system----The equipment adopts an intelligent PLC Chinese/English version control system, which is simple and easy to understand, beautiful and generous, sturdy and durable, long life, and low failure rate. The equipment has an exclusive parameter memory system, which can store data after each specification is produced, and the parameters can be directly adjusted during the next production.
5.Oven----Constant temperature intelligent oven, with multiple heating tubes inside, uses electricity to generate heat energy, reaches the set temperature, and automatically stops heating, with low power consumption and less loss.
6.Winding machine----can be matched with automatic winding machine (automatic roll changing, automatic tape cutting, automatic stop), servo motor control, no manual operation required.

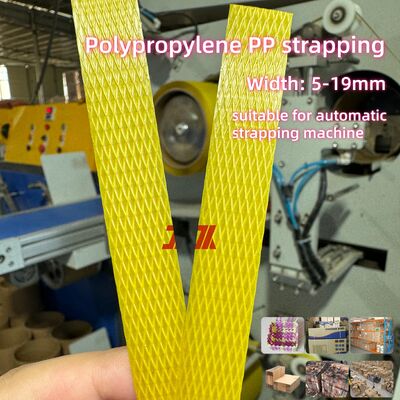

7.Embossing wheel----TEmbossing wheel---The upper and lower patterns are consistent, the lines are clear, the patterns are neat, the embossing is adjustable, the quality is high-end, the material is SKD-11, wear-resistant and durable.
| Model No. |
Screw Size |
No. of strap |
Capacity |
Total Power |
Width |
Thickness |
Installation Dimensions |
| JTPP-90 |
2800mm |
2 |
100kg/h |
80kw |
5-19mm |
0.4-1.2mm |
36*2.0*4.0M |
| JTPP-100 |
2800mm |
3 |
150kg/h |
90kw |
5-19mm |
0.4-1.2mm |
36*2.2*4.0M |
| JTPP-110 |
3300mm |
4 |
200kg/h |
100kw |
5-19mm |
0.4-1.2mm |
38*2.0*4.0M |
| JTPP-110 |
3300mm |
6 |
130kg/h |
100kw |
5-19mm |
0.4-1.2mm |
38*2.0*4.0M |

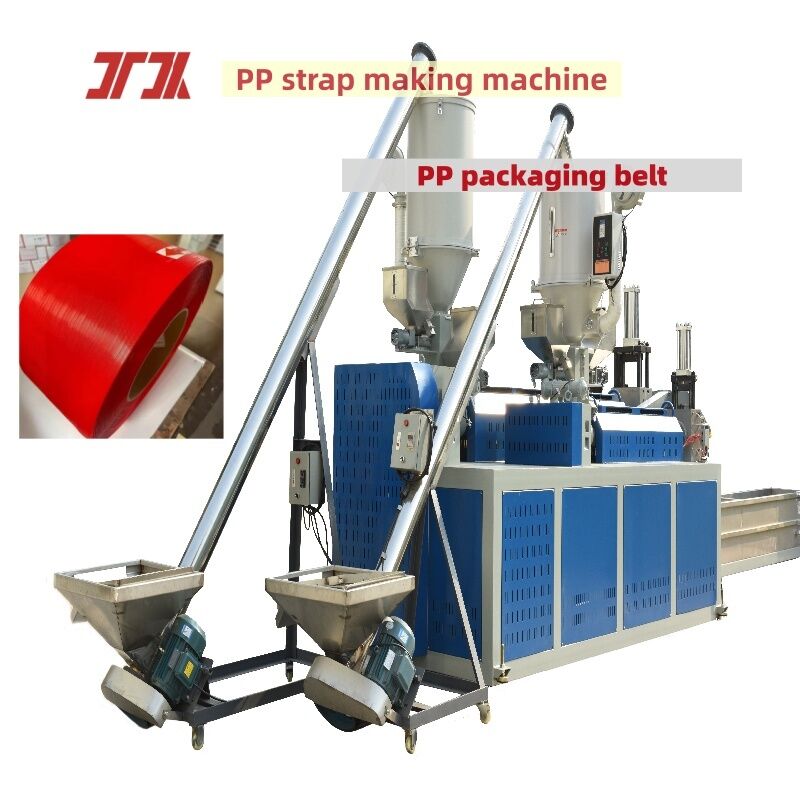

PP STRAP MAKING MACHINE /PP strapping production equipment is a high-speed extrusion machine using 100% PP (polypropylene) fiber-grade raw materials. It can produce PP strapping with a width of 5-19mm.
Raw Materials------ The equipment can use virgin polypropylene (PP) granules or recycled materials to produce strapping, meeting the production needs of different customers and ensuring uniform color and stable performance of the strapping.
High-Precision Screw------- Utilizing a high-quality screw from a well-known brand with exclusive parameter design, it boasts advantages such as high extrusion volume, excellent plasticizing performance, high hardness, and wear resistance. Equipped with a quantitative extrusion system, the produced strapping has uniform width and thickness with minimal error, fully meeting national strapping acceptance standards.
Advanced Dies------- The dies are precisely cut using imported CNC machine tools. High-precision dies ensure stable strapping forming, with width and thickness errors controlled within national standards, effectively improving product quality consistency.
MACHINE HIGHLIGHTS:
Automatic addition of calcium carbonate powder reduces costs
PLC control system, capable of storing production data for 99 specifications
Energy-saving and environmentally friendly, high output, low power consumption
Stable operation, low failure rate
Features of PP strapping production line
1 . This line is specially designed for the production of PP Straps. It can produce 2 or 4 PP Straps at the same time that saves energy by 20%-30%;
2 . Both the Shaping Water Tank and Calibrating Tank are made of stainless steel that the tanks are long-lived;
3 . PLC Controller by touching keys with alternative languages, which is safe and easy to operate that keeps good status of all part and ensures the stable performance of whole line and continuous production of PP Straps.
ABOUT US:
Shenzhen Jiatuo Plastic Machinery Co., Ltd. is a manufacturer and supplier of strapping equipment and strapping products, integrating production and sales.
FACTORY SALES:
PP strapping equipment, PET strapping equipment, PP strapping, PET Packing belt, PE stretch film, transparent tape, semi-automatic/fully automatic strapping machines, handheld electric strapping machines, etc.
We currently have 4 companies with strong production capabilities. We have our own sales team, production team, management team, R&D team, quality control team, and after-sales team. We own our own production plant, enabling fast and high-quality delivery. We support customized products. Welcome to inquire.
PET/PP strapping equipment manufacturing plant: 1 pcs
PET packing belt manufacturing plant: 1 pcs
PP strapping manufacturing plant: 1 pcs
Automated equipment factory: 1 pcs
FAQ
1. how can i get the videos, photos of the PP strap making machine
A:You can contact me online or send an inquiry. Please provide your request details as clearly as possible. So we can send the price to you as soon as possible. For design or further discussion, we can all receive QQ, wechat,Skype or other instant methods to avoid any delay. We can provide you with all the details of our machines. We can manipulate the video for you if you need it.Of course, you can also visit our factory.
2. if we have questions on machine or production, Can you help us?
A: Yes, no problem.
We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.
3. Why choose us?
A: 1.We are an exporter of professional wire drawing machine and rope machine factory
2. We have rich experience for chemical and plastic machinery nearly 30 years.
3. Our quality is praised by our customers and we provide very competitive price for you.
4. We will provide service for the machine all the time.
