Product Details:
|
| Video Outgoing-inspection: | Provided | Strap Tension: | Adjustable |
|---|---|---|---|
| Control System: | PLC Control System | Motor: | 37KW(GUGAO) |
| Winder: | Double Station Winder | Strap Core Type: | Paper/Plastic |
| Warranty: | 1 Year | Material: | PP Recycled Material/New Raw Material |
| Thickness: | 0.4-1.2mm | Width: | 5-19mm |
| Screen Changer: | Automatic/Manual | Screw: | Single Screw / Double Screw |
| Highlight: | Customizable PP strap production line,Automatic winding PP strap machine,5-19mm PP strap making machine |
||

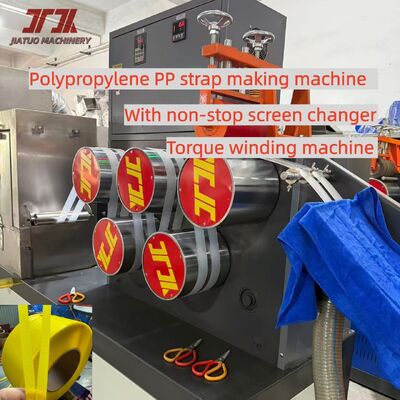

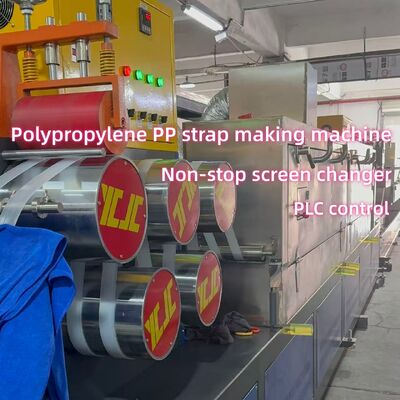

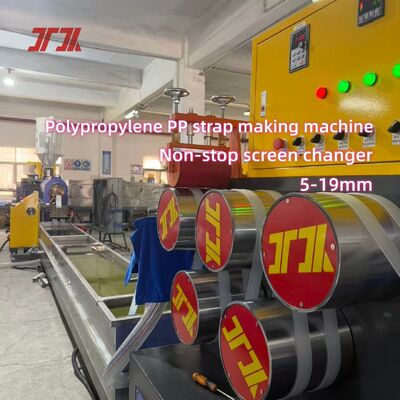

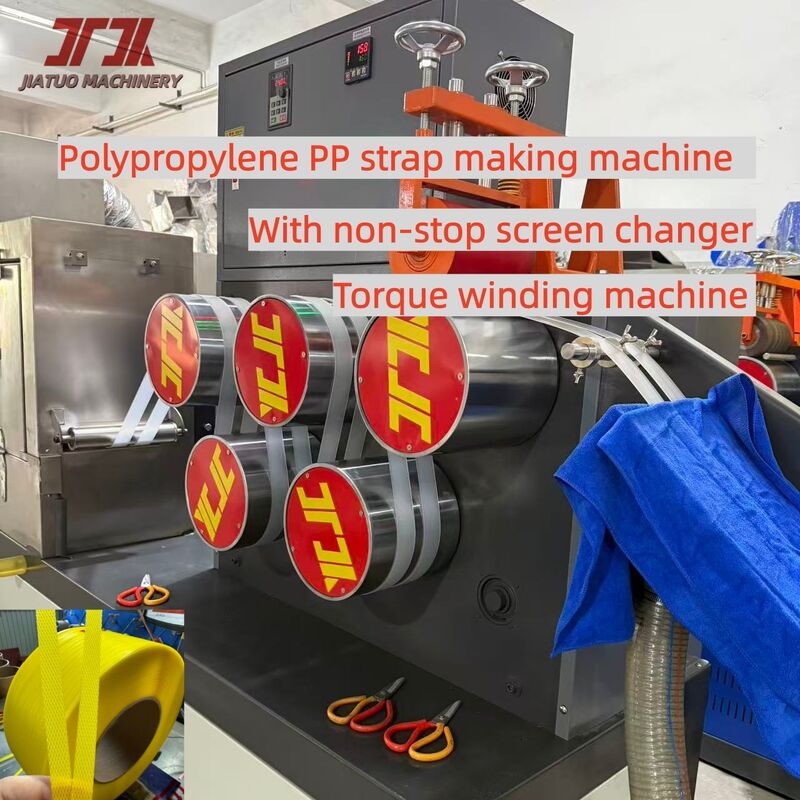

Customizable 5-19mm PP Strap Production Line With Automatic Winding Machine

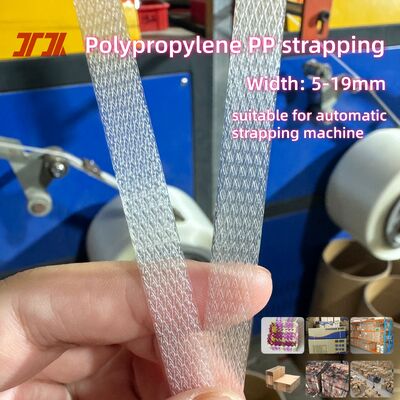

Understand of PP strapping
PP strapping is made of polypropylene. It’s cheap, lightweight, rust-free and flexible, widely used for cartons, books and daily goods bundling.
It works well with automatic strapping machines, supports custom sizes and colors. Compared with PET strapping, PP is more cost-effective but with lower tension, fit medium & light packages only.
We supply PP straps in various widths from 5mm to 19mm, using virgin or 100% recycled PP materials. Custom sizes and bulk orders are welcome.
Technical parameter of PP strap making machine
|
Machine name
|
pp strap production line
|
||
|
Place of origin
|
Shenzhen, China
|
||
|
Certification
|
ISO9001-2000; CE
|
||
|
Raw material
|
pp granules / 100% recycled material
|
||
|
Product width
|
5-19mm
|
||
|
Product thickness
|
0.4-1.2mm
|
||
|
manpower
|
2persons/shift
|
||
|
Machine size
|
28-40*2*4M
|
||
|
Extruder
|
JT-PP90
|
JT-PP110
|
JT-PP125
|
|
Strap QTY
|
2
|
4
|
6
|
|
Max output
|
120-150kg/h
|
250-300kg/h
|
350-380kg/h
|
Raw Material
Supports virgin & recycled PP pellets, cost-effective and marketable.
Upgraded Technology
High-precision straps with tight tolerance, globally recognized.
Extruder
Precise extrusion for consistent thickness.
Special Screw
Good plasticization, even output, wear-resistant and durable.
Application of PP strapping
1. Packaging & Logistics
Carton strapping: Strengthen cartons to avoid splitting in transit
Pallet bundling: Stabilize stacked boxes & sacks on pallets
Long goods binding: Fasten pipes and elongated materials
2. Construction Materials
Brick & tile bundling: Convenient packing for bricks, tiles and blocks
Timber & scaffolding: Secure wooden boards and metal scaffold parts
3. Agriculture
Crop baling: Bundle hay, straw and agricultural waste
Feed & fertilizer sacks: Reinforce bags against leakage
4. Manufacturing & Printing
Industrial parts bundling: Bind metal/plastic rods, sheets and tubes
Printing industry packing: Fasten paper stacks and paper rolls
![]()
FAQ
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.![]()
