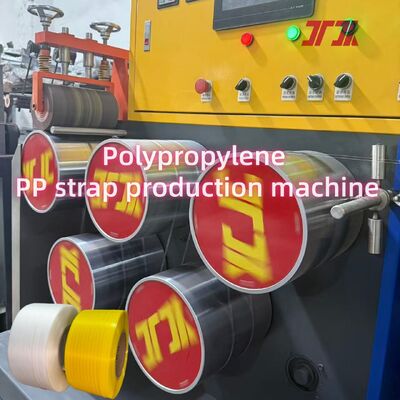

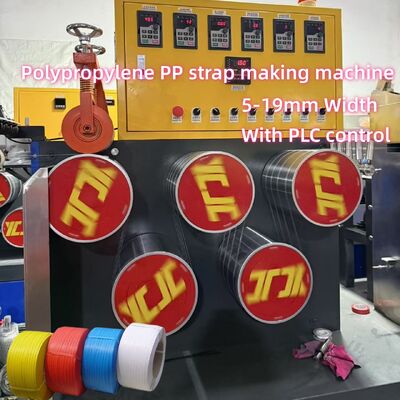

Recycled Material Use PP Strap Making Machine With Single Double Screw Fully Automatic
Technical parameter of PP 2straps output making machine
| 1 |
Materials |
Polypropylene PP raw material pellets, recycled pellets. |
| 2 |
Product |
PP strap (1 mould for 2 straps output) |
| 3 |
Capacity |
100-120kg/h |
| 4 |
Total install power |
80kw, (actual power consumption is 40-50%) |
| 5 |
Strap width |
5mm-19 mm |
| 6 |
Thickness |
0.4 mm-1.2 mm |
| 7 |
Manpower |
2person/shift |
| 8 |
Workshop required |
L (30m) ×W (2m) ×H (4m) |
| 9 |
Power source |
380V, 50Hz, 3Phase (according to customer requirement) |
| 10 |
Electric components |
Schneider |
| 11 |
Inverter |
INVT |
| 12 |
Switches |
Fotek |
| 13 |
Motor power |
GUGAO |
Process flow of PP packing belt production line
①Raw materials →②Pre-drying and Stirring →③Melting raw materials →④Non-stop screen changer to filter raw material impurities→⑤Extrusion→⑥Cooling and forming→⑦Oven heating and shaping →⑦First stretching →⑧(if need printing information on strap, put the printing machine before embossing, only single color can online printing)→⑨Embossed →⑩Oven tempering and shaping second strength →⑪Water tank Cooling →⑫winding finial PP strapping

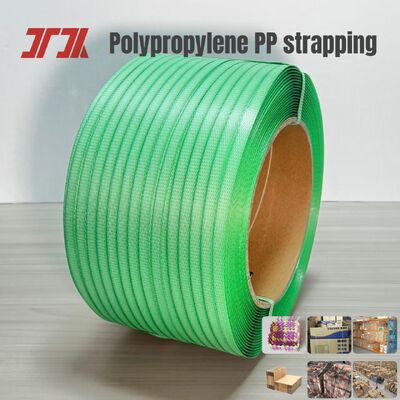

Advantages of PP strapping
1. Jiatuo PP strapping production line can use recycled materials or virgin PP polypropylene materials.
2. The PP strapping equipment uses high-precision, high-quality screws from well-known brands, with unique parameter designs, offering advantages such as high extrusion volume, good plasticity, high hardness, and strong wear resistance.
3. Equipped with a high-precision die head, the produced strapping has consistent width and thickness with a small error range, meeting national packaging strapping acceptance standards.

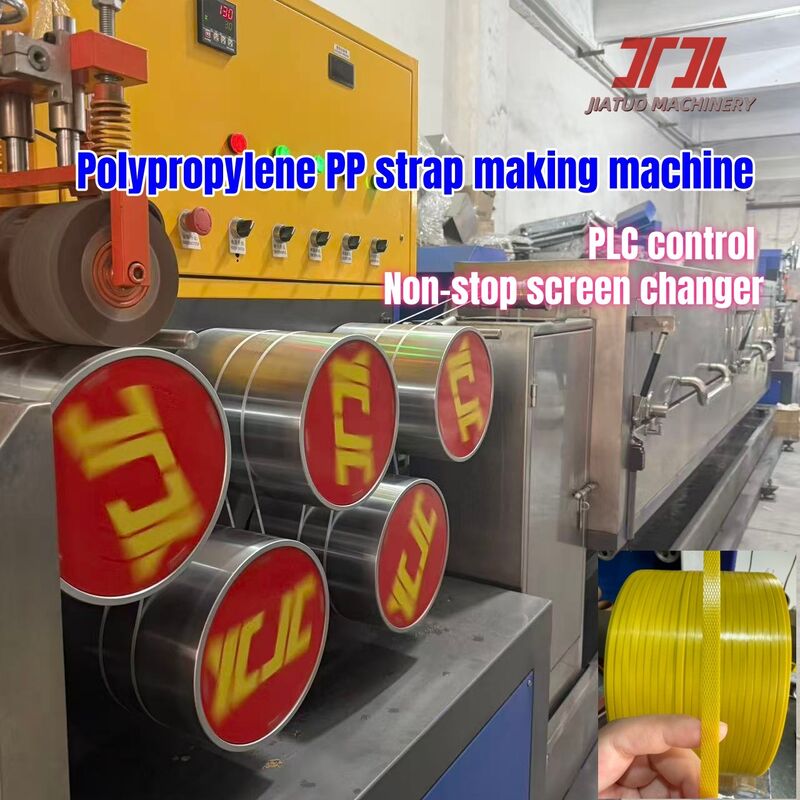

4. Equipped with a non-stop screen changer, allowing for screen replacement without stopping the machine; it features four screen circulation plates with a large filtration area.
Application of PP strapping
1. Packaging & Logistics
Carton Sealing: Reinforces boxes to prevent opening during transit.
Pallet Unitizing: Secures stacked goods (boxes, bags, etc.) on pallets for stable transport.
Bundling: Ties together pipes, tubes, or other long items.
2. Construction & Building Materials
Brick & Tile Strapping: Bundles bricks, tiles, or concrete blocks for easy handling.
Scaffolding & Lumber: Secures wooden planks or metal scaffolding parts.
3. Agriculture
Hay & Straw Baling: Bundles hay, straw, or crop residues.
Fertilizer & Feed Bags: Reinforces sacks to prevent spillage.
Our Services
1.Before order: We will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2.During order: company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers' requirements and provides detail order list and matching manufacturer for reference for customer.
3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer's locale in time when we provide service for client again.
4. After order: we will offer 12months after sales service freely, but our service will be life-long. if some parts are broken, we will send them by express, air or ship as soon as we can.
FAQ
For PP(polypropylene) strapping band extrusion line
- What about the output of PP strapping band extrusion line? 150kg/hr, 250kg/hr, 350kg/hr, 500kg/hr.
- What about the size of strap that the PP strap machine can make? Width: 5-32mm; Thickness: 0.4-1.2mm;
- What about the installation power of the PP strap machine? 90kw/120kw/150kw/250kw;
- What about the maximum tensile strength of the strap? it depend on the material you use
- What about the running speed of machine? 200-300m/min;
- What about the usage of PP strap? Packing boxes, money, paper;
- Will the strap be used for automatic strapping tool or manual tool? Both.
