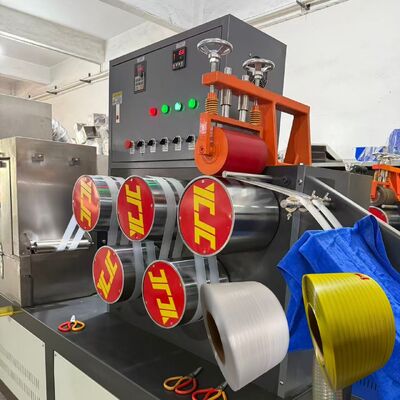

PP Strap Production Line Make PP Packing Belt With Automatic Winder
PP strap making machine production description
- Raw material: PP granules (new + recycled)
- Control system: Automatic PLC program control
- Winder options: Semi-automatic and fully automatic
- Capacity: 100–600kg/h (As customer require 1,2,4,6,8,10,12 straps output)
Technical specification of JIATUO PP strap making machine
| Type |
JTPP-90 |
JTPP-100 |
JTPP-110 |
JTPP-125 |
JTPP-135 |
JTPP-90/65 |
JTPP110/75 |
| Strap of number |
2 |
3 |
4 |
6 |
8 |
2 |
4 |
| Sandwich belt |
Sandwich belt |
| width |
5-19mm |
5-19mm |
5-19mm |
9-19mm |
9-19mm |
9-19mm |
9-19mm |
| Thickness |
0.4-1.2mm |
| Reducer mode |
200 |
200 |
225 |
250 |
280 |
200/173 |
225/173 |
| Screen changer |
Automatic/ Manual |
| Production capacity |
80-120kg/H |
180-200kg/H |
220-250kg/H |
350-370kg/H |
460-500kg/H |
80-120kg/H |
180-200kg/H |
| Screw type |
Single screw |
Double screw |
Advantages of JIATUO PP belt making machine
Product Versatility
Available in the form of PP strapping rolls, plastic strapping, and standard packing straps, catering to diverse packaging needs.
Superior Load-Bearing Strength
Crafted as high-strength PP strapping, it can securely hold heavy loads without snapping or breaking, ensuring stable bundling of goods.
Lightweight Design
Compared with other strapping materials, PP strapping is lightweight, facilitating convenient handling, transportation, and storage.
Cost-Effective Solution
As a budget-friendly alternative to materials like steel strapping, PP strapping features lower production costs, making it a highly economical choice.
Moisture & UV Resistance
It boasts excellent resistance to moisture and UV radiation, preventing degradation or strength loss caused by prolonged exposure to harsh outdoor elements.
Easy Application
This strapping is user-friendly and compatible with both simple hand tools and automated strapping machines, significantly saving time and labor in packaging processes.
Eco-Friendly Recyclability
Fully recyclable, PP strapping can be reprocessed and reused after its initial service life, reducing industrial waste and lowering long-term packaging costs.

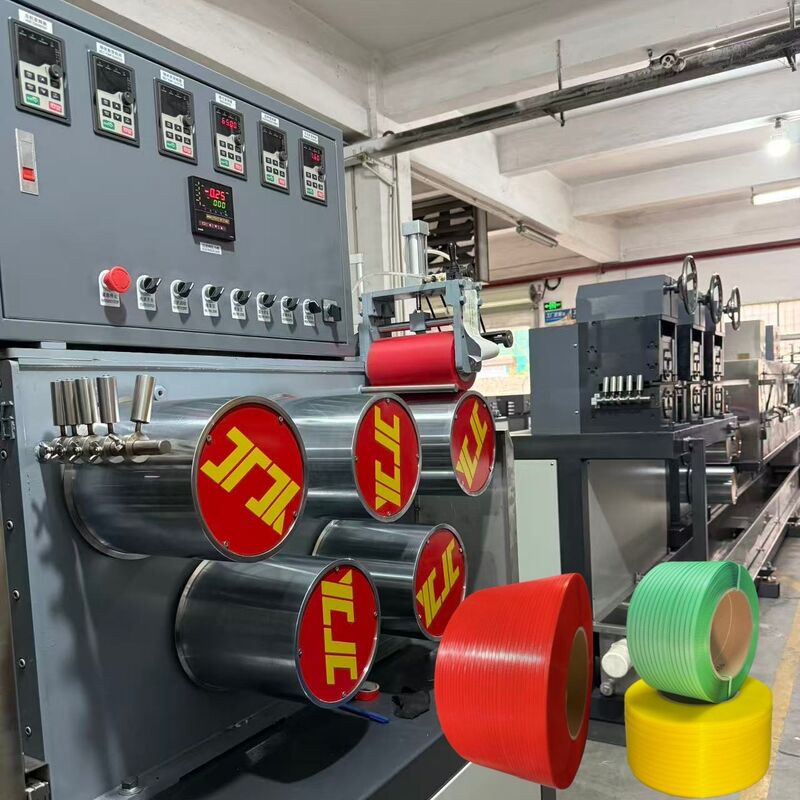

Parts of JIATUO PP strap production line
1. Cooling water tank
----Using 304 stainless steel
----the constant temperature water tank provides stable temperature control, significantly improving the quality of the finished strapping.
2. Haul-off machine
---synchronization PLC control system
3. stretch oven and setting oven
The use of a constant-temperature, sealed oven significantly reduces electricity costs.
4. winding machine
We have 2 kind of winding machine for your choose.
Torque-controlled semi-automatic winding machine
Servo-driven fully automatic winding machine
Application of PP strapping
1. Logistics and Warehousing Industry
2. Food and Beverage Industry
3. Building Materials Industry
4. Paper and Printing Industry
5. Retail and Supermarket Sector
6. Textile and Clothing Industry
7. Electronics and Appliance Industry
8. Agricultural Product Packaging
FAQ
Q1:If you will send engineer coming to our factory to install and test the machines?
A1:Yes. Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q2:If you have CE,SGS,ISO certificate?
A2:Yes, except these, if you also need other certificates,we also can help to apply.
Q3:If we buy your machines, can you offer us wear-out spare pats?
A3:Yes. We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q4:What is the voltage?
A4:380V 50hz 3 phase or any other voltage according to client's requirement.
