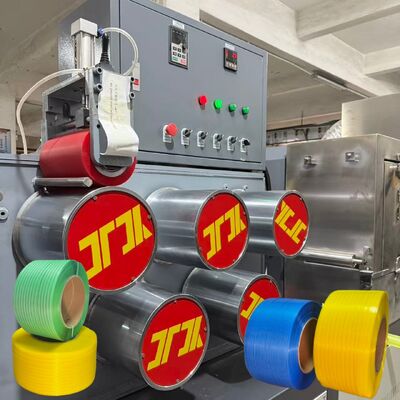

5-19mm Automatic PP Strap Production Line PP strap making machine with PLC Control
Product Description of PP Packing Belt Making Line
Our PP strap production line can manufacture PP strapping tapes in custom colors as requested by customers, including red, green, blue, black, yellow, transparent, white, and more.

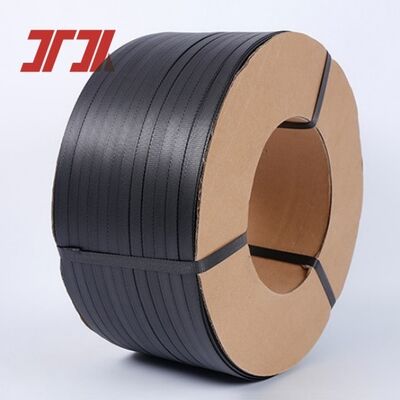

PP strapping, also known as polypropylene strapping, is made primarily from polypropylene drawing resin. It features outstanding performance:
Excellent plasticity
Can be processed into various shapes and sizes, with a width range of 5–19 mm and thickness of 0.3–1.2 mm.
High breaking
tensile strengthProvides strong load-bearing capacity, ideal for a wide range of packaging and securing applications.
Great bending resistance
Does not easily break or deform even after repeated bending.
Low density & lightweight
Convenient for transportation, handling, and daily use.
PP strapping is user-friendly and widely applied across many industries, including logistics, packaging, transportation, electronics, hardware, home appliances, clothing, and more.
Technical Parameter of PP belt extrusion line
| Type |
JTPP-90 |
JTPP-100 |
JTPP-110 |
JTPP-125 |
JTPP-135 |
JTPP-90/65 |
JTPP110/75 |
| Strap of number |
2 |
3 |
4 |
6 |
8 |
2 |
4 |
| Sandwich belt |
Sandwich belt |
| width |
5-19mm |
5-19mm |
5-19mm |
5-19mm |
5-19mm |
5-19mm |
5-19mm |
| Thickness |
0.4-1.2mm |
| Reducer mode |
200 |
200 |
225 |
250 |
280 |
200/173 |
225/173 |
| Screen changer |
Automatic/ Manual |
| Production capacity |
80-120kg/H |
180-200kg/H |
220-250kg/H |
350-370kg/H |
460-500kg/H |
80-120kg/H |
180-200kg/H |
| Screw type |
Single screw |
Double screw |
Process flow of PP packing belt production line
Feeding → stirring → pre-drying → melting and measuring extrusion → embryo (belt embryo) cooling and forming
→ oven preheating → primary stretching → secondary stretching → embossening → oven tempering and setting →
cooling → finished product winding
Tips: if you have a choose of printing that you can printing first and then embossing in the project of eight.
Advantages of PP strap making machine
High Efficiency
High degree of automation with PLC control system, stable and fast production. Line speed: 250–300 m/min.
High Quality
High-speed rotation, high output, low power consumption. The finished PP straps feature excellent toughness and bending resistance, fully compatible with automatic strapping machines.
Eco-friendly
Produced with virgin PP or recyclable materials, non-toxic, odorless, and degradable.
Multi-function & Versatility
Able to produce PP straps in various specifications.Width: 5–19 mm, Thickness: 0.3–1.2 mm.
About After-sales:
1. Pre-sale service
To provide information, market research and forecasting, provide consultancy, offers a variety of convenience and market service and so on.
Pre-sale service's main purpose is to assist the clients prepare the project planning and system requirements analysis, enable our products to maximize meet customer needs, but also to maximize customer investment play the comprehensive economic benefits.
2. After-service
1 Free installation and debugging
2 Provide all kinds of product formula, technology and chemical material manufacturer information
3 According to the customer's requirements, provide technical guidance
4 Technical training for employees of customers
5 Responsible for maintenance service, door to door service if necessary.
