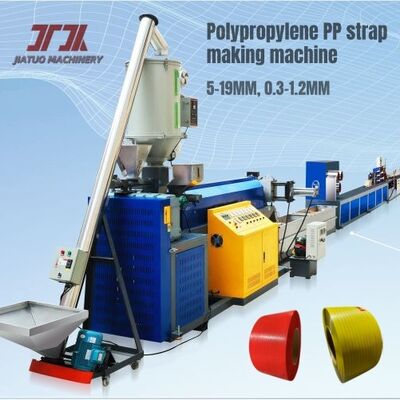

PP Packing Strap Tape Making Machine PP 2Straps Output Production Line With Automatic Winder
Main description of PPStrap Band/Belt Extrusion Line/PPStrap Band/Belt Extrusion Machine
This production line uses 100% recycled polypropylene (PP) pellets as raw material, specializing in the production of fully automatic and manual PP strapping for a wide range of packaging applications. The PP strapping produced has a width of 5–19 mm and a thickness of 0.3–1.2 mm.
The core configuration is equipped with an extruder using a 38CrMoALA alloy screw, specially designed for high-quality strapping production, together with an automatic feeding system. The whole line adopts variable frequency motors and an intelligent temperature control system, which greatly improves energy efficiency while ensuring stable and reliable operation of the extruder.
Technical Parameters of JIATUO PP 2straps output making machine
|
1
|
Materials
|
Polypropylene PP raw material pellets, recycled pellets.
|
|
2
|
Product
|
PP strap (1 mould for 2 straps)
|
|
3
|
Capacity
|
100-120kg/h
|
|
4
|
Total install power
|
55-60kw, (actual power consumption is 40-50%)
|
|
5
|
Strap width
|
5mm-19 mm
|
|
6
|
Thickness
|
0.4 mm-1.2 mm
|
|
7
|
Manpower
|
2person/shift
|
|
8
|
Workshop required
|
L (28m) ×W (2m) ×H (4m)
|
|
9
|
Power source
|
380V, 50Hz, 3Phase (according to customer requirement)
|
|
10
|
Electric components
|
Schneider
|
|
11
|
Inverter
|
INVT
|
|
12
|
Switches
|
Fotek
|
|
13
|
Motor power
|
GUGAO
|
Feature of PP strap production line
Raw Material Flexibility
This production line can produce packaging straps using 100% recycled materials or a blend of recycled and virgin materials. Calcium carbonate can also be added based on customer requirements to lower production costs and improve profit margins.
Optimized Overall Design
The machine features an upgraded, sleek and premium appearance, with a sturdy and durable structure for long service life.
Stable & High-Precision
Forming High-precision die components ensure stable product quality, with width and thickness deviations far below the national standard. The dedicated screen changer greatly reduces screen changing time and improves production efficiency.
High-Performance Screw
Equipped with a high-quality, branded screw with unique parameter design. It offers the advantages of large extrusion output, excellent plasticization, high hardness and superior wear resistance.
Parts of JIATUO PP strap production line
Automatic screen changer
Extrusion die head
Precision molds manufactured by large CNC centers

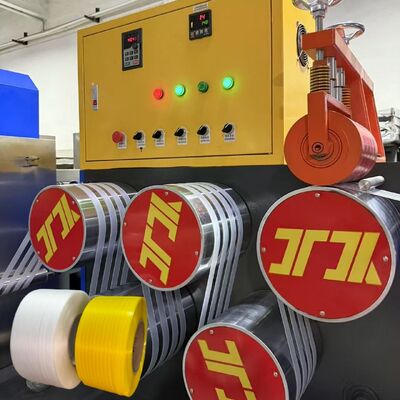

Automatic winder
For our winding machine, there have fully-automatic and semi-automatic to choose. you can choose it as you need!
FAQ
Q1:If you will send engineer coming to our factory to install and test the machines?
A1:Yes. Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q2:If you have CE,SGS,ISO certificate?
A2:Yes, except these, if you also need other certificates,we also can help to apply.
Q3:If we buy your machines, can you offer us wear-out spare pats?
A3:Yes. We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q4:What is the voltage?
A4:380V 50hz 3 phase or any other voltage according to client's requirement.
