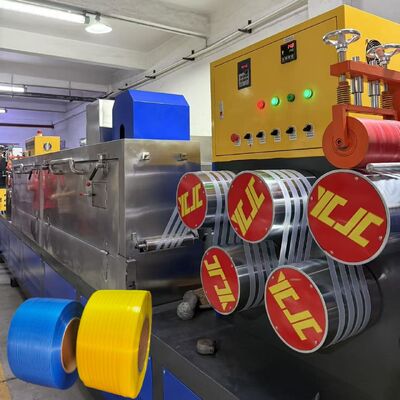

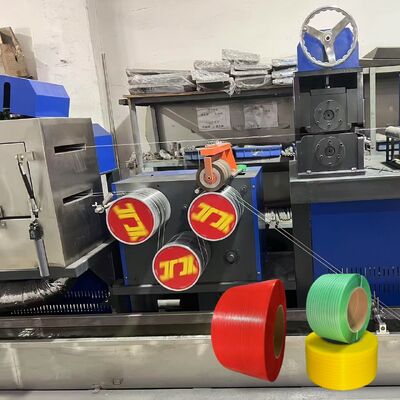

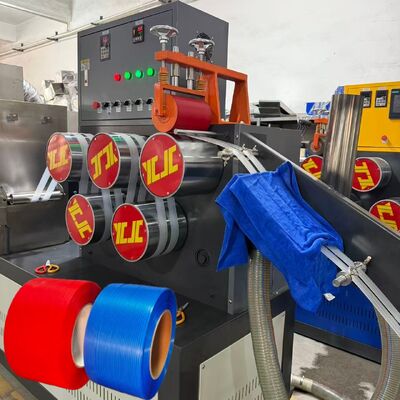

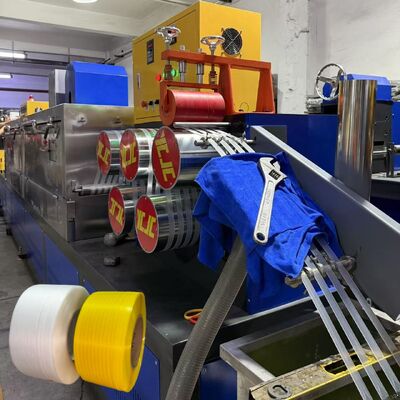

260kg/H Pp Strap Making Machine Packing Straps For Boxes With Non-stop Screen Changer
This is a professional plastic strapping production line, capable of manufacturing PP strapping with customizable width (5–19 mm) and thickness (0.3–1.2 mm) to meet your exact requirements.
It is compatible with both virgin and recycled PP materials. In line with global environmental trends, more manufacturers now opt for 100% recycled PP feedstock — and our machine excels at producing high-quality strapping even with 100% recycled materials.
As a manufacturer with 30 years of expertise in PP/PET strapping machine production, we welcome your inquiries.
Technical specification of JIATUO PP strap making machine
| Type |
JTPP-90 |
JTPP-100 |
JTPP-110 |
JTPP-125 |
JTPP-135 |
JTPP-90/65 |
JTPP110/75 |
| Strap of number |
2 |
3 |
4 |
6 |
8 |
2 |
4 |
| Sandwich belt |
Sandwich belt |
| width |
5-19mm |
5-19mm |
5-19mm |
9-19mm |
9-19mm |
9-19mm |
9-19mm |
| Thickness |
0.4-1.2mm |
| Reducer mode |
200 |
200 |
225 |
250 |
280 |
200/173 |
225/173 |
| Screen changer |
Automatic/ Manual |
| Production capacity |
80-120kg/H |
180-200kg/H |
220-250kg/H |
350-370kg/H |
460-500kg/H |
80-120kg/H |
180-200kg/H |
| Screw type |
Single screw |
Double screw |
Features of the PP Strap Production Line
Flexible Material Compatibility
Virgin/recycled materials or their mixture are applicable; calcium carbonate can be added as required to cut costs, boost profits and enhance market competitiveness.
High Output Efficiency
Max finished product line speed up to 300m/min.
Optimized Machine Design
Sleek, premium-looking and highly durable.
High-Precision Die Components
Stable molding with width/thickness tolerance far below national standards; exclusive screen changer slashes changing time.
Premium Precision Screw
Brand-name parts with unique parameters, featuring high extrusion capacity, excellent plasticization, high hardness and wear resistance.
Precision Embossing Device
Adjustable pressure, clear and neat embossing, product quality comparable to European, American, Japanese and Korean standards.
Parts of JIATUO PP strap production line
1. Extrusion part
specially designed screw and barrel for pp material
2. Mould
----mould design can be 2/4/6/8/10/12/24straps output
3. Cooling water tank
----Using 304 stainless steel
----the constant temperature water tank provides stable temperature control, significantly improving the quality of the finished strapping.
4. Haul-off machine
---synchronization PLC control system
5. stretch oven and setting oven
The use of a constant-temperature, sealed oven significantly reduces electricity costs.
FAQ
Q1:If you will send engineer coming to our factory to install and test the machines?
A1:Yes. Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q2:If you have CE,SGS,ISO certificate?
A2:Yes, except these, if you also need other certificates,we also can help to apply.
Q3:If we buy your machines, can you offer us wear-out spare pats?
A3:Yes. We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q4:What is the voltage?
A4:380V 50hz 3 phase or any other voltage according to client's requirement.
