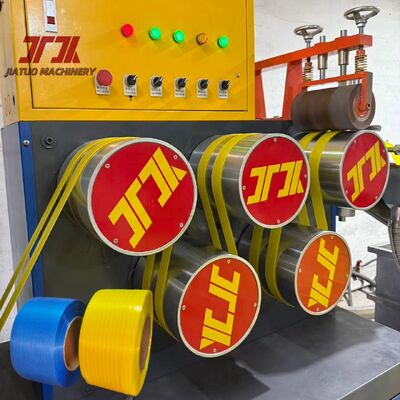

PP Strap Production Line Strap Making Machinery With Precise Double Embossing Machine
PP strap making machine production description
- Raw material: PP granules (new + recycled)
- Control system: Automatic PLC program control
- Winder options: Semi-automatic and fully automatic
- Capacity: 100–600kg/h (As customer require 1,2,4,6,8,10,12 straps output)
Technical specification of JIATUO PP strap making machine
| Type |
JTPP-90 |
JTPP-100 |
JTPP-110 |
JTPP-125 |
JTPP-135 |
JTPP-90/65 |
JTPP110/75 |
| Strap of number |
2 |
3 |
4 |
6 |
8 |
2 |
4 |
| Sandwich belt |
Sandwich belt |
| width |
5-19mm |
5-19mm |
5-19mm |
9-19mm |
9-19mm |
9-19mm |
9-19mm |
| Thickness |
0.4-1.2mm |
| Reducer mode |
200 |
200 |
225 |
250 |
280 |
200/173 |
225/173 |
| Screen changer |
Automatic/ Manual |
| Production capacity |
80-120kg/H |
180-200kg/H |
220-250kg/H |
350-370kg/H |
460-500kg/H |
80-120kg/H |
180-200kg/H |
| Screw type |
Single screw |
Double screw |
Advantages of JIATUO PP belt making machine
- Premium quality orientation: We specialize in manufacturing and exporting high-quality machines. Given the high cost of overseas part replacement and maintenance, we ensure stable operation at the buyer’s facility.
- Top-grade components: All parts—from frame steel to motors, gearboxes, screws, heaters, bearings, electrical components and cables—adopt premium materials, with a service life of over 20 years guaranteed.
- Precision processing: Components are machined via CNC equipment, ensuring high precision for producing consistent-quality packing straps.
- Superior surface treatment: The machine exterior undergoes manual polishing and triple-layer painting, delivering a sleek, durable finish.
- Advanced design: Integrated with the world’s latest strap machine technology, the optimized design enables production of straps for automatic packing systems.
Parts of JIATUO PP strap production line
1. Extrusion part
specially designed screw and barrel for pp material
2. Mould
----mould design can be 2/4/6/8/10/12/24straps output
3. Cooling water tank
----Using 304 stainless steel
----the constant temperature water tank provides stable temperature control, significantly improving the quality of the finished strapping.
4. Haul-off machine
---synchronization PLC control system
5. stretch oven and setting oven
The use of a constant-temperature, sealed oven significantly reduces electricity costs.
6. winding machine
We have 2 kind of winding machine for your choose.
Torque-controlled semi-automatic winding machine
Servo-driven fully automatic winding machine
FAQ
Q1:If you will send engineer coming to our factory to install and test the machines?
A1:Yes. Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q2:If you have CE,SGS,ISO certificate?
A2:Yes, except these, if you also need other certificates,we also can help to apply.
Q3:If we buy your machines, can you offer us wear-out spare pats?
A3:Yes. We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q4:What is the voltage?
A4:380V 50hz 3 phase or any other voltage according to client's requirement.
