5-19mm Width PP Strap Making Machine For Packing Belts With Automatic Winding Machine

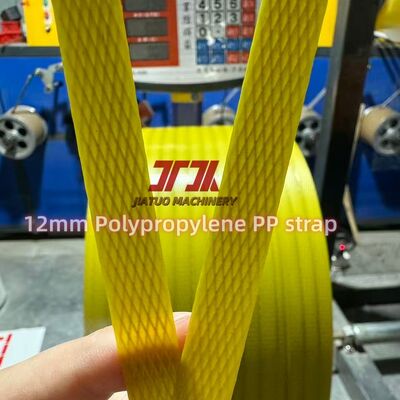

This production line is used for making full automatic PP strapping band and manual PP strap band for packing usge. The width of the strap band is 5-19 mm, Thickness is from 0.3-1.2mm.
Packing belt equipment adopts 38CrMoALA extruderespecially suitable for high-grade packing belt production, extruder hopper type dehumidifying drying system and automatic feeding system, make the performance of the extruder is more stable, the unit all adopts frequency conversion motor drive and automatic intelligent temperature control system, realize the energy saving effect greatly.
Technical specification of JIATUO PP strap making machine
| Type |
JTPP-90 |
JTPP-100 |
JTPP-110 |
JTPP-125 |
JTPP-135 |
JTPP-90/65 |
JTPP110/75 |
| Strap of number |
2 |
3 |
4 |
6 |
8 |
2 |
4 |
| Sandwich belt |
Sandwich belt |
| width |
5-19mm |
5-19mm |
5-19mm |
9-19mm |
9-19mm |
9-19mm |
9-19mm |
| Thickness |
0.4-1.2mm |
| Reducer mode |
200 |
200 |
225 |
250 |
280 |
200/173 |
225/173 |
| Screen changer |
Automatic/ Manual |
| Production capacity |
80-120kg/H |
180-200kg/H |
220-250kg/H |
350-370kg/H |
460-500kg/H |
80-120kg/H |
180-200kg/H |
| Screw type |
Single screw |
Double screw |
Features of the PP Strap Production Line
1. Raw materials can be recycled or virgin materials, or a mixture of both, for strapping production. Calcium carbonate can also be added according to customer requirements to reduce production costs and improve product profitability and market competitiveness.
2. High output, with a finished product line speed of up to 300m/min.
3. Optimized design of the entire machine, resulting in a beautiful, high-end, and durable appearance.
4. High-precision mold components ensure stable product molding quality, with width and thickness variations far below national standards; the unique screen changing device significantly shortens screen changing time.
5. High-precision, high-quality screw, using a well-known brand, with a unique parameter design, offering advantages such as high extrusion volume, good plasticization, high hardness, and high wear resistance.
6. High-precision dedicated embossing device, with adjustable pressure, resulting in clear and beautiful embossing, improving product quality and comparable to products from Europe, America, Japan, and South Korea.
7. Constant tension winding system, with a unique parameter design, meeting high output requirements, excellent winding effect, and flat and beautiful cross-section.
8. Uses a computer programming control system, automatically memorizing strapping tape production specifications, making operation and debugging simple and convenient.
9. Automatic screen changing device without stopping the machine, maximizing efficiency.

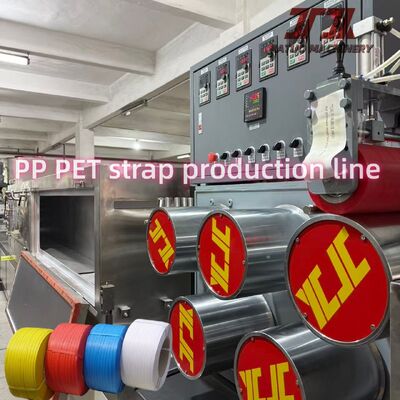

Parts of JIATUO PP strap production line
1. Extrusion part
specially designed screw and barrel for pp material
2. Mould
----mould design can be 2/4/6/8/10/12/24straps output
3. Cooling water tank
----Using 304 stainless steel
----the constant temperature water tank provides stable temperature control, significantly improving the quality of the finished strapping.

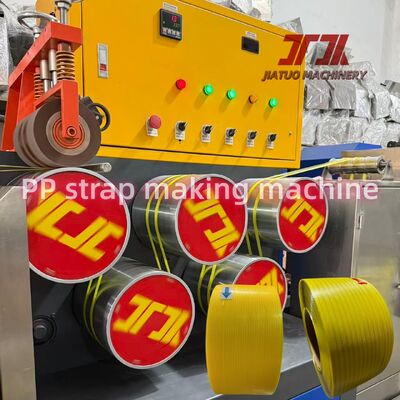

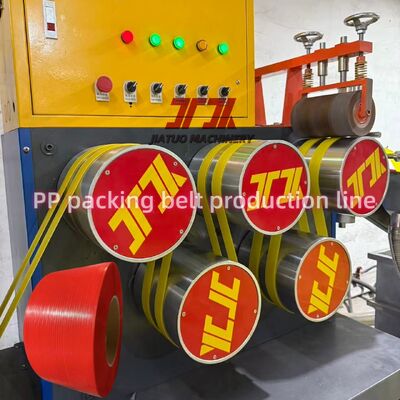

4. Haul-off machine
---synchronization PLC control system
5. stretch oven and setting oven
The use of a constant-temperature, sealed oven significantly reduces electricity costs.
6. winding machine
We have 2 kind of winding machine for your choose.
Torque-controlled semi-automatic winding machine
Servo-driven fully automatic winding machine
FAQ
Q1:If you will send engineer coming to our factory to install and test the machines?
A1:Yes. Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q2:If you have CE,SGS,ISO certificate?
A2:Yes, except these, if you also need other certificates,we also can help to apply.
Q3:If we buy your machines, can you offer us wear-out spare pats?
A3:Yes. We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q4:What is the voltage?
A4:380V 50hz 3 phase or any other voltage according to client's requirement.
