5-19mm Plastic PP Packing Belt Making Machinewith Continuous Screen Changers
Production description of JIATUO PP belt production line

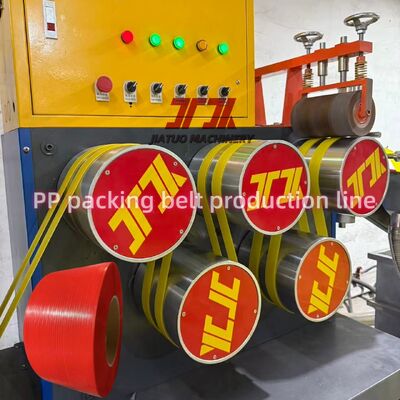

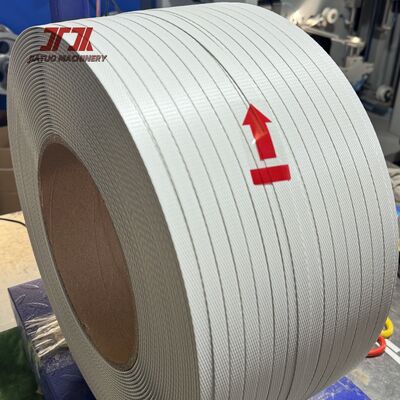

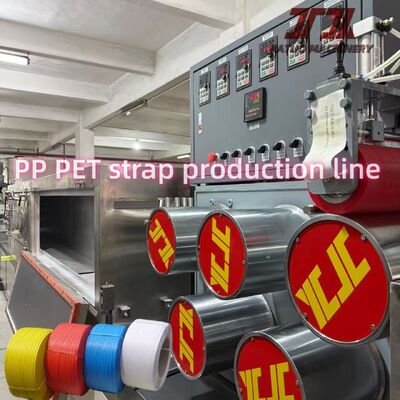

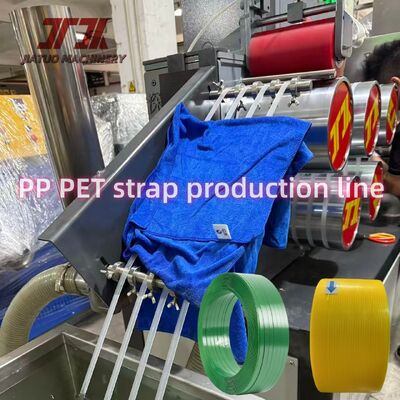

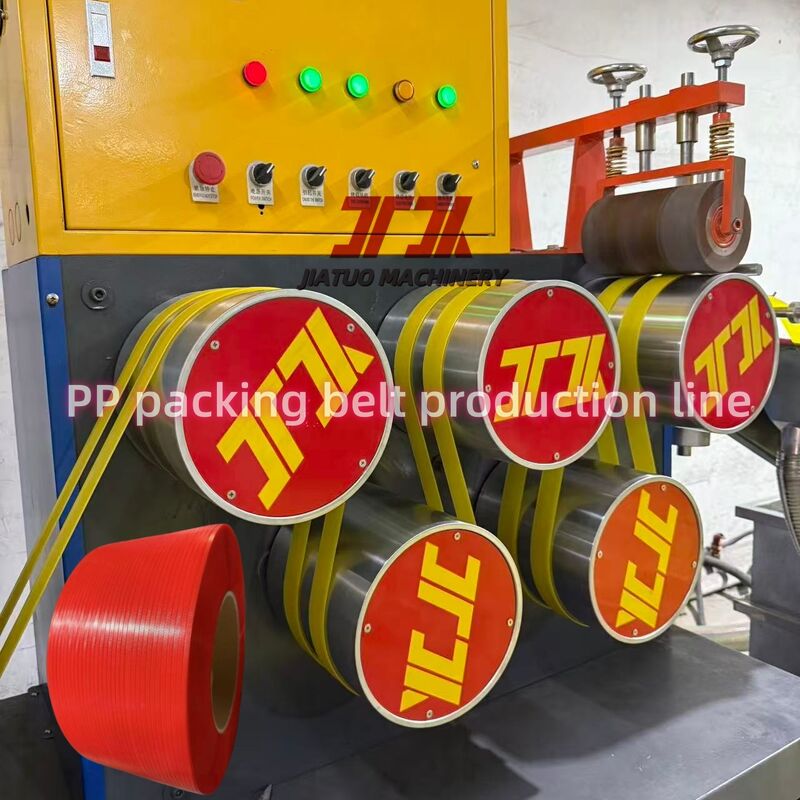

This production line is used to manufacture both fully automatic and manual PP strapping bands for packaging purposes. It utilizes 100% PP recycled, 100% new polypropylene as raw material. The produced strapping bands have a width range of 5-19 mm and a thickness range of 0.3-1.2 mm.
The equipment features an extruder with a 38CrMoALA alloy screw, specifically designed for high-grade strapping production, and includes an automatic feeding system. The entire line employs frequency conversion motor drives and an intelligent automatic temperature control system. This configuration significantly improves energy efficiency while ensuring stable and reliable extruder performance.
Technical specification of PP 4straps output machine
| Model |
Output |
Strap Quantity |
Strap Width |
Running speed |
Raw Material |
| JT-PP90 |
100-120Kg/h |
2straps |
5-19 mm |
200-300m/min |
100% PP recycled material & new raw material |
| JT-PP110 |
230-260Kg/h |
4straps |
5-19 mm |
| JT-PP125 |
350-380Kg/h |
6straps |
5-19 mm |
Advantage of JIATUO PP strap making machine
1. This production line is specifically designed for the production of PP strapping, capable of simultaneously producing 2, 4, 6, 8, 10, or 12 PP straps, saving 50%-60% in energy.
2. Both the forming and calibration water tanks are made of stainless steel, ensuring durability.
3. Utilizing a PLC controller, operated via touch buttons with multiple language options, it is safe and easy to use. Real-time monitoring of component status ensures stable operation of the entire production line, enabling continuous PP strapping production.
4. The use of a non-stop screen changing device significantly improves production efficiency.
5. A precision embossing machine reduces strap sticking and breakage.
Features of PP strap production line
1) PP raw materials do not require separate drying or wetting treatment. The preheating and drying processes are automated, saving significant equipment investment and reducing production costs by 30%;
2) Utilizing recycled polypropylene as raw material significantly reduces costs;
3) Low energy consumption and high production capacity;
4) Easy operation, saving labor costs with an average of only two operators required per production line.
Auxiliary equipment of JIATUO PP strap production line
Standard mixed barrel
This barrel can mixing the material more uniform. It have 2T/3T/4T/6T for choose.
The time required for adding materials was reduced, significantly improving production efficiency.
Film kraft wrapping machine
Use to packing the final strap roll, easy to operation and efficiency.
FAQ
Q1:If you will send engineer coming to our factory to install and test the machines?
A1:Yes. Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q2:If you have CE,SGS,ISO certificate?
A2:Yes, except these, if you also need other certificates,we also can help to apply.
Q3:If we buy your machines, can you offer us wear-out spare pats?
A3:Yes. We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q4:What is the voltage?
A4:380V 50hz 3 phase or any other voltage according to client's requirement.
