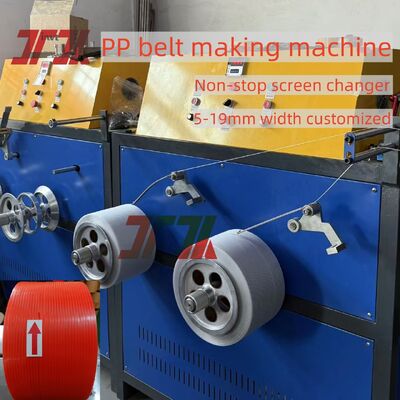

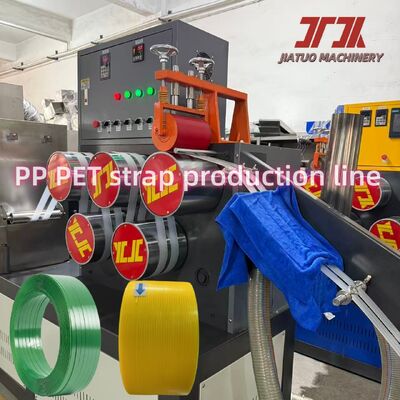

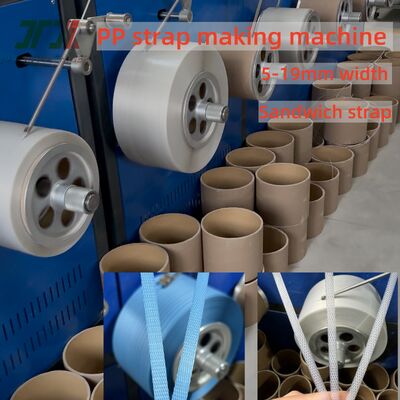

5-19mm 380kg/h Capacity Pp Packaging Tape Production Equipment With Automatic Screen Changer
PP strapping machine,using polypropylene recycling material as raw materials by making them melt directly,which reduces the course of raw material-making.
Low energy consumption, high production capability.
Easy to operate ,save manpower
Strap Size: 5-19mm
Mould design: PP 1/2/3/4/6/8/10/12/24 straps extrusion machine
Technical specification of PP 6straps output machine
|
Name
|
PP strap production line
|
|
Place of origin
|
SHENZHEN,China
|
|
Certification
|
ISO9001-2000;CE;SGS
|
|
Raw material
|
PP new raw material; PP recycled material
|
|
Output
|
350-380Kg/h
|
|
Product width
|
5-19mm
|
|
Machine size
|
L40m*W2M*H4M
|
|
Teducer
|
GUOMAO
|
|
Inverter
|
INVT
|
|
Temperature controller
|
FOTEK
|
Advantage of JIATUO PP strap making machine
Technical and Quality Advantages
Consistent Quality Control: You have direct control over the entire production process (extrusion, orientation, cooling). This allows you to ensure consistent tensile strength, break elongation, and quality, reducing the risk of faulty external supplies.
Integrated Printing (Optional): Many production lines come with or can be equipped with online printers. This allows you to print logos, text, or barcodes directly onto the strap as it's being made, adding value and traceability.
Environmental Advantages
Reduced Carbon Footprint: Eliminates the transportation required to ship finished straps from a distant factory.
Waste Minimization: As mentioned, the ability to recycle in-house production scrap significantly reduces plastic waste.
Parts of JIATUO PP strap production line
1. Extrusion part
specially designed screw and barrel for pp material
2. Mould
----mould design can be 2/4/6/8/10/12/24straps output
3. Cooling water tank
----Using 304 stainless steel
----the constant temperature water tank provides stable temperature control, significantly improving the quality of the finished strapping.
4. Haul-off machine
---synchronization PLC control system
5. stretch oven and setting oven
The use of a constant-temperature, sealed oven significantly reduces electricity costs.
FAQ
Q1:If you will send engineer coming to our factory to install and test the machines?
A1:Yes. Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q2:If you have CE,SGS,ISO certificate?
A2:Yes, except these, if you also need other certificates,we also can help to apply.
Q3:If we buy your machines, can you offer us wear-out spare pats?
A3:Yes. We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q4:What is the voltage?
A4:380V 50hz 3 phase or any other voltage according to client's requirement.
