Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2

Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2
Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2
Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2 Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2 Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2 Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2 Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2

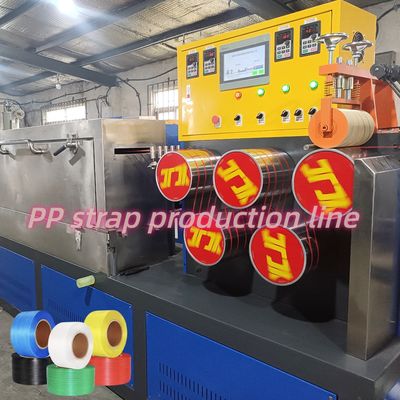

Large Image :  Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2

Product Details:
Place of Origin: SHENZHEN CHINA
Brand Name: JIATUO CHINA
Certification: CE ISO
Model Number: JTPP-90
Document: parameter details of PP Str...ne.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plastic films
Delivery Time: 40-50days
Payment Terms: L/C, T/T
Contact Now

Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2

Description
Screw: Single Screw/ Double Screw Screw Channel Structure: Deep Screw
Automation: Automatic Computerized: PLC Screen Touch Control System
Model: JTPP-90 Screw Dimension: 90/100/110/125/150mm
Straps Of Number: 2/3/4/6/8 Product Type: Extrusion Molding Machine
Inverters: INVT Temperature Control: Taiwan Fotek
Production Capacity: 120-600KGS/H Key Words: Plastic Packing Strapping Machine
Trademark: JIATUO Width: 5-19mm
Thickness: 0.4-1.2mm Production Speed: >250m/min

Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2

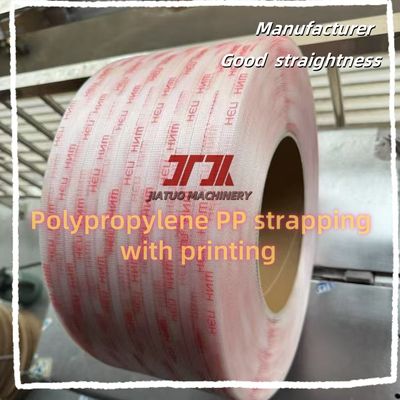

Application of PP strapping


PP packing strip is widely used in packing applications, it can replaced the steel strap for packing application, as its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2 0

Parameter of JIATUO PP strap making machine



Type JTPP-90 JTPP-100 JTPP-110 JTPP-125 JTPP-135 JTPP-90/65 JTPP110/75
Strap of number 2 3 4 6 8

2

Sandwich belt

4

Sandwich belt
width 5-19mm 5-19mm 5-19mm 9-19mm 9-19mm 9-19mm 9-19mm
Thickness 0.4-1.2mm
Reducer mode 200 200 225 250 280 200/173 225/173
Screen changer Automatic/ Manual
Production capacity 80-120kg/H 180-200kg/H 220-250kg/H 350-370kg/H 460-500kg/H 80-120kg/H 180-200kg/H
Screw type Single screw Double screw



Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2 1



 Advantage of JIATUO PP packing belt making machines, PP packing strap extrusion machine



  1. Special design of the screw extrusion technology can be choosing as per customer needs.
  2. Can process 100% recycled PP/PET bottle flakes or pellets.
  3. Plasticization and stable extrusion can with PLC automatic control for the full line.
  4. According different requirements, changing materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
  5. Melt filter with two pistons with air venting design and back flushing.
  6. Number of strap:2,3,4,6,8 Width: 5mm-19mm,Thickness: 0.4mm-1.2mm
  7. Workers: 2 -3 workers per shift, 12 hours/shift, if change the fully automatic winder can just need one person to operate.

FAQ


Q: Why you need to choose CHINA JIATUO PLASTIC MACHINERY Co.,Ltd?
A: Vietnam Daystar is one of the leading manufacturer in China and have nearly 30 years’ experience in this industry.
Q: What kind of products you are manufacturing?
A: We are specilized in PP PET strap making machine for nearly 30years experience. and we have setting our own PP PET strap factories at 2018.
Q: What is your delivery lead time of PP PET strap?
A: It usually take 10-20days, we will clearly advice in our quotation.
Q: What is your trade terms?
A: EXW, FPB,CIF as your require. payment terms is T/T L/C or others.

Fully Automatic PP PET Strap Making Machine PP PET Belt Extrusion Line With Larger Filter 3.5m2 2
