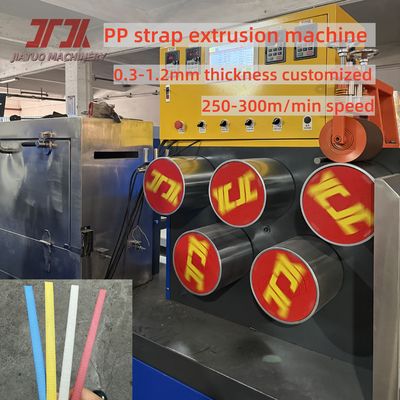

5-19mm Pp Belt Strap Making Machine with PLC control and 250-300m/min running speed
PET/PP strap application

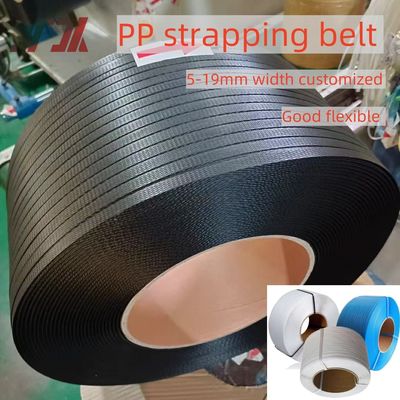

PET/PP strap is used as a new environmentally friendly packaging materials in place of steel strap on the world.
It is easy to transport and pack goods,which can help you reduce costs.
PET/PP strap have been widely used in the steel,chemical fiber,aluminum ingots, paper,brick kiln,screw,tobacco
industry,electronics,textiles and wood,etc.It is more suitable for long-distance transport use.
Parameter of PP belt making machine
| Type |
JTPP-90 |
JTPP-100 |
JTPP-110 |
JTPP-125 |
JTPP-135 |
JTPP-90/65 |
JTPP110/75 |
| Strap of number |
2 |
3 |
4 |
6 |
8 |
2
Sandwich belt
|
4
Sandwich belt
|
| width |
5-19mm |
5-19mm |
5-19mm |
9-19mm |
9-19mm |
9-19mm |
9-19mm |
| Thickness |
0.4-1.2mm |
| Reducer model |
200 |
200 |
225 |
250 |
280 |
200/173 |
225/173 |
| Screen changer |
Automatic/ Manual |
| Production capacity |
80-120kg/H |
180-200kg/H |
220-250kg/H |
350-370kg/H |
460-500kg/H |
80-120kg/H |
180-200kg/H |
| Screw type |
Single screw |
Double screw |
PP strapping making machine of Advantages
1. Smart PLC Control System
Automatically stores last-used parameters for quick setup
Ensures consistent production quality
2. Superior Tensile Strength
5mm width × 0.45mm thickness strap achieves 50kg pull force
Exceeds industry performance standards
3.High-Temperature Resistant Design
Maintains stable operation in demanding environments
4.Energy-Efficient Operation
Low power consumption reduces operating costs
Automated processes minimize labor requirements
5.Premium Quality at Competitive Pricing
Robust construction for long service life
Cost-effective manufacturing solution
6.High-Capacity Production
Stable output of approximately 6 tons per 24 hours
Consistent performance for continuous operation
7.Precision Manufacturing
Width and thickness tolerances surpass industry standards
Ensures uniform product quality

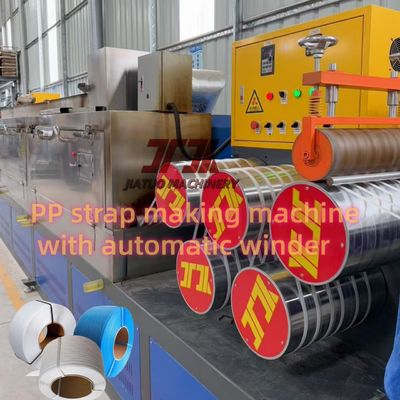

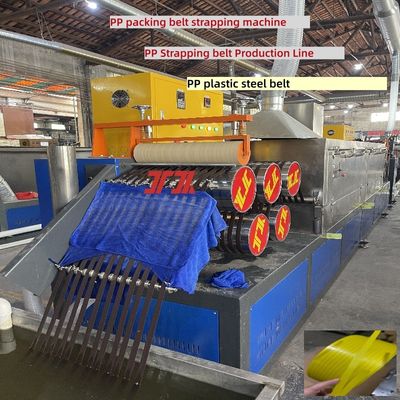

The parts of JIATUO PP strap production line
SINGLE SCREW EXTRUDER
Material of screw and machine barrel: 38CrMoALA
Heating ring material:Cast aluminum
TRACTOR AND HEATING STRECH OVEN
Tractor speed controlled by Inverter
Heating method is controlled by pressure regulator
EMBOSSING MACHINE AND SETTING OVEN
EMBOSSING MACHINE
Embossing Press method: By manual,easy to control and adjust the pressure
Embossing machine speed controlled by Inverter
FAQ
Q: What about the payment terms?
----Always 30% down payment as deposit,70% balance payment after inspection before shipping.
Q: What is your guarantee time?
----Our guarantee time is 12 months.
Q: If you will send engineer coming to our factory to install and test the machines?
----Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q: If you have CE,SGS,ISO certificate?
----Yes,except these,if you also need other certificates,we also can help to apply.
