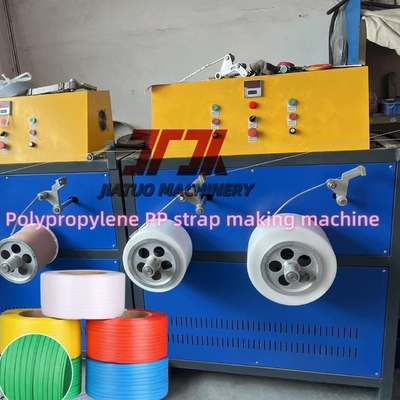

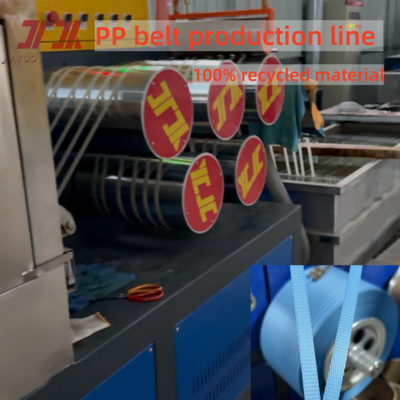

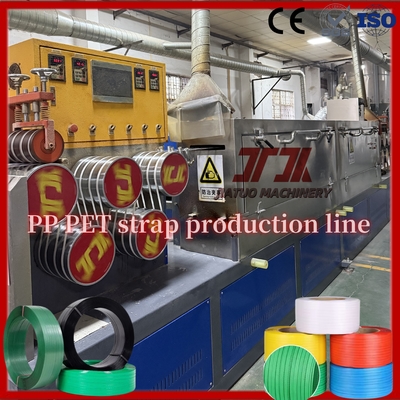

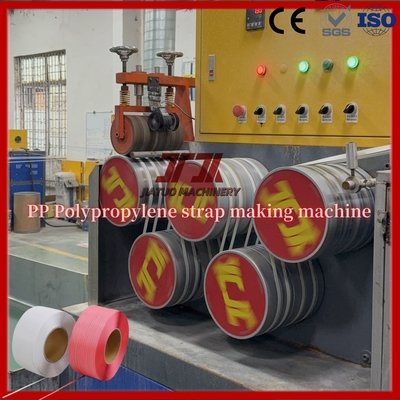

350kg/H Automatic PP Strapping Band Production Line with non-stop Screen Filter

350kg/H Automatic PP Strapping Band Production Line with non-stop Screen Filter

Polypropylene Strapping Band Production Line of Application

This machine can be used to meet the needs of cartons, tobacco, clothing, paper, electronics, wooden boxes, fruit,electrical (such as refrigerators, washing machines, color TV), food and other industries.

It can produce different width and thickness pp straps according to the requirement of the clients.​

It can using the 100% recycled material or mixed the new and recycled material together, which can reduce the product cost and get a good profit.

PP strapping making machine of Advantages

1. Use the PLC computer control system to memory the last parameter

2. Good extension(such as the width of 5mm and the thickness of 0.45mm can arrive at 50KGS pull)

3. High temperature resistant

4. Use less power to save costs and saving labor

5. High and stable production efficiency, it can produce about 9T/24H

6. The errors of the width and thickness over the standard level of industry

The parts of PP strap making machine​

Automatic screen filter changer: We use an automatic screen filter changer, does not need stopping to change of it

Die head:According to the machine to use different die head, 4 output straps making machine can be used to produce 4 moulds with embryo straps at the same time

​  3.Cooling tank: cool down the embryo straps(The best temperature makes 20 degrees below )

 Stretching part: Instantly extends the embryo straps to 10-12 times its lengt,then it undergoes a second stretching to make the packing straps shape with uniform width and thickness

 Shaping part: Re-shaping to reduce the probability of deformation after winding

 Printer machine: you can printer anything on the straps in this part

​

 Winder: rewinding the strapping produced by the machine

                   Paper core specification:200 mm X180 mm(can Customized)

                   Winding specifications:5-19mm

PP strapping finished products

Certifications

  Shenzhen Jiatuo Plastic Machinery Co., Ltd. is a privately-owned enterprise specializing in manufacturing high-end intelligent PP/PET strap making machine and other packaging industry zone, our company was founded in 2012 and has the most advanced computer numerical control machine tools and machining centers, we have passed the ISO9001 quality management system certification and our machines have passed environmental protection testing certification, using the an exclusive memory system.

Packing & Delivery

FAQ

Q1: why should you choose us not other one?
Our company specializes in the production of PP/PET packaging tape line and we have a more than 20 years of industry research and development technology team, PP/PET strap manufacturers, PP/PET strap production line manufacturers.Customers are located in more than 10 countries, provinces and more than 200 production lines, looking foeward to working with you and hand in hand side by side build a dream.

Q2: China is far from our country, if our machine have any question that what would you do it?

We have a warranty by one year, we will conduct a chatting online with you to solve the question if have any question, and we will send the new one to change, if we find the question of the machine is other spare parts was damaged.

By the way our machine of the quality is the best one, we are confident in saying that you can using it without any question over 10 years,we have great after-sales service.
