5-19mm Width GUOMAO Reducer PP Strap Making Machine With PLC Control Memory System And Automatic Winder

Large Image : 5-19mm Width GUOMAO Reducer PP Strap Making Machine With PLC Control Memory System And Automatic Winder

Product Details:

Place of Origin:	CHINA
Brand Name:	JIATUO CHINA
Certification:	IS CEO
Model Number:	JTPP-100
Document:	parameter details of PP Str...ne.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	plastic film
Delivery Time:	30-40days
Payment Terms:	L/C, T/T

Contact Now

5-19mm Width GUOMAO Reducer PP Strap Making Machine With PLC Control Memory System And Automatic Winder

Description

Strap Thickness:	0.4-1.2mm	Strap Width:	5-19mm
Warranty:	1 Year	Key Selling Points:	Leading German And Japanese Advanced Technology
Power Consumption:	80KW	Strap Color:	Red/ Green/ Black/ Yellow/ White
Screw Diameter (mm):	100mm	Applicable Raw Materials:	Recycled Material And Polypropylene
Highlight:	PLC Control PP Strap Making Machine , Automatic Winder PP Strap Machine , Automatic Winder PP Strap Making Machine

5-19mm Width GUOMAO Reducer PP Strap Making Machine With PLC Control Memory System And Automatic Winder

Technical Parameters of 3 straps extrusion line

Product Attributes	Parameters
Extruder	Single or Double Screw
Warranty	1 year
Strap Width	5-19mm
Trademark	JiaTuo China
Applicable raw materials	Recycled Material and Polypropylene new material
Video outgoing-inspection	Provided
Strap Thickness	0.4-1.2mm
Motor	Guomao
Strap Tension	Adjustable
Power Supply	380V/220V

5-19mm Width GUOMAO Reducer PP Strap Making Machine With PLC Control Memory System And Automatic Winder 0

Process flow of PP packing belt production line

①Raw materials add on feeding machine →②Material Barrel Pre-drying and Stirring raw materials →③Main machine melting raw materials →④Non-stop screen changer to filter raw material impurities→⑤High-precision die head flow channel uniform extrusion→⑥Cooling and forming the blank (strip blank) →⑦Oven heating and shaping →⑦five roller wheels first stretching →⑧(if need printing information on strap, put the printing machine before embossing, only single color can online printing)→⑨Embossed →⑩Oven tempering and shaping second strength →⑪Water tank Cooling(Set in the lower part of the setting oven) →⑫winding finial PP strapping

Funtion of PP strip production line

1) PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and
drying that save a large number of equipment investment and reduce the production cost by 30%;
2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
3) Low Energy consumption, but high production capability;
4)Easy to operate, save the manpower and two persons for one production line on average

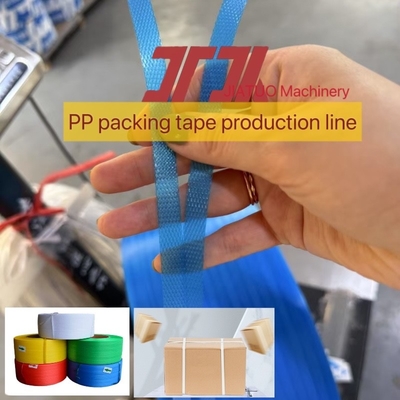

Application of PP strapping

5-19mm Width GUOMAO Reducer PP Strap Making Machine With PLC Control Memory System And Automatic Winder 1

Our Services

1.Before order: We will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2.During order: company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers' requirements and provides detail order list and matching manufacturer for reference for customer.

3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer's locale in time when we provide service for client again.
4. After order: we will offer 12months after sales service freely, but our service will be life-long. if some parts are broken, we will send them by express, air or ship as soon as we can.

FAQ

For PP(polypropylene) strapping band extrusion line

What about the output of PP strapping band extrusion line? 150kg/hr, 250kg/hr, 350kg/hr, 500kg/hr.
What about the size of strap that the PP strap machine can make? Width: 5-32mm; Thickness: 0.4-1.2mm;
What about the installation power of the PP strap machine? 90kw/120kw/150kw/250kw;
What about the maximum tensile strength of the strap? it depend on the material you use
What about the running speed of machine? 200-300m/min;
What about the usage of PP strap? Packing boxes, money, paper;
Will the strap be used for automatic strapping tool or manual tool? Both.
