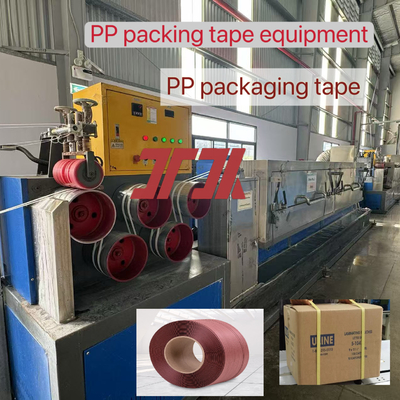

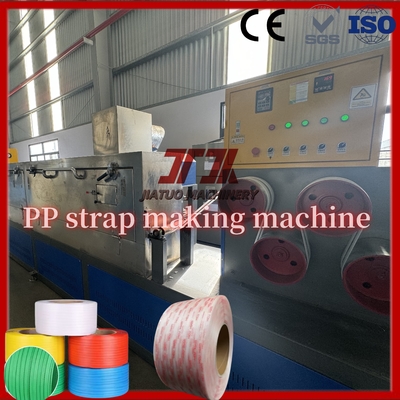

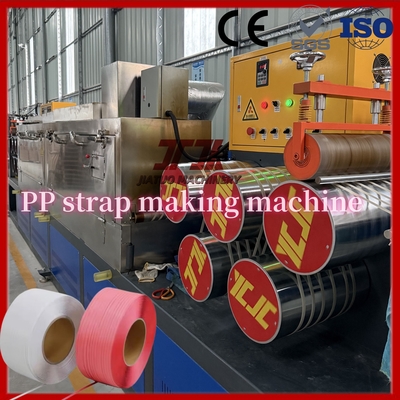

High speed 5-19mm single screw PP strapping tape production line PP strapping tape production equipment with 200-300m/min
Description of PP strapping equipment:
PP strapping tape, also known as polypropylene strapping tape, is a strapping tape made of polypropylene brushed resin as the main raw material. It has superior characteristics:
Good plasticity-----can be formed into various shapes and sizes as needed, width: 5-19mm, thickness: 0.3-1.2mm.
Strong breaking tensile force----has a high load-bearing capacity, suitable for various occasions that require packaging and fixing.
Bending resistance----will not easily break or damage even after multiple bending.
Low density----relatively light weight, easy to carry and use.
PP strapping tape is also very easy to use, so it is widely used in many fields, including but not limited to logistics, packaging, transportation, electronic products, hardware, home appliances, clothing, etc.
EXTRUSION PARAMETERS TABLE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
The difference between PP strapping equipment and PET plastic steel strapping equipment:
1. Raw materials used in PP strapping equipment: PP polypropylene drawing grade raw materials, new materials or recycled materials
2. Raw materials used in PET strapping equipment: bottle flakes or crushed materials after mineral water bottles are crushed
PET belt:
PP belt:
Features of embossing wheel:
1.The packing belt embossing wheel is a device used for embossing a pattern, text or a specific mark on a packing belt (such as PP packing belt, PET packing belt, etc.) . These embossing wheels are usually installed in the embossing device of the Packer, through the contact between the roller and the packing belt, forming the desired indentation or pattern on the packing belt.
2. Embossing wheel after nitriding, heat treatment surface hardness can reach 60 degrees, strong and durable, this embossing machine embossing the surface of the packaging belt lines clear, rough enough, automatic packaging machine using belt force.
3.Embossing machine upper and lower two flower wheel with synchronous gear, ensure up and down synchronous rotation, ensure that the two sides of the flower spinning packaging belt is fully consistent, increase the packaging belt's beauty and transparency. When the upper and lower two flower wheels are assembled, there is a fixed gap which never collides, thus prolonging the service life of the flower wheel.
About After-sales
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP belt making machine.
2.Analysis of the cost of PP tape making machine.
3.Raw materials that can be used for PP tape making machine.
After-sales service:
1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP belt making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
