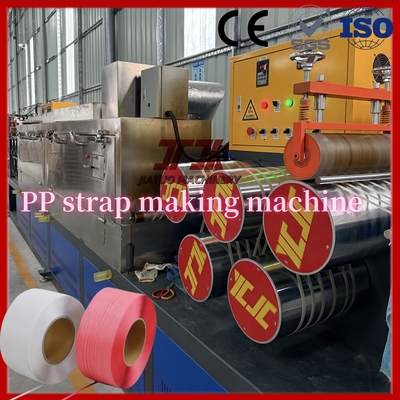

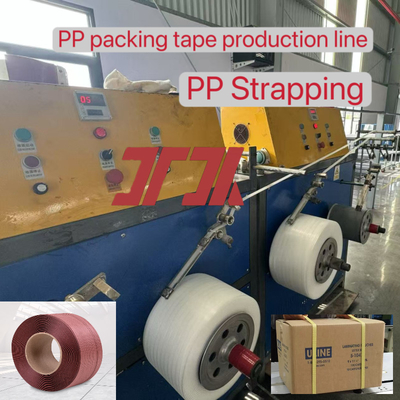

Factory Customized 5-19mm High-speed PP Plastic Strapping Production Line PP Strapping Equipment With Automatic Wrapping Machine

Factory customized 5-19mm high-speed PP plastic strapping production line PP strapping equipment with automatic wrapping machine

Description of PP strapping equipment:

1.The plastic material of the high-speed automatic PP packaging belt production line can be produced with PP recycled materials or mixed new materials.
2.PP strapping belt production line adopts high precision 38CrMoALA material screw, adopts well-known electrical brand, unique PLC parameter design, with large extrusion, good plasticization, high hardness, good wear resistance and other characteristics.
3.PP strapping line is equipped with quantitative extrusion system. The width and thickness of PP belt are the same, and the error range is small, which meets the national acceptance standard of packaging belt.

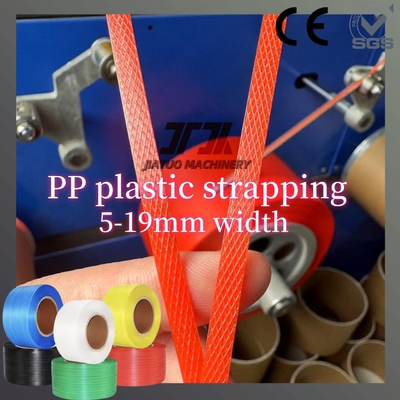

4.PP strapping belt production line can produce 5-19mm width packing belt, can produce full-plastic PP belt, or sandwich co-extruded PP belt.

                                            Technical Parameters of 4 straps extrusion line

Process flow of PP packing belt production line

①Raw materials add on feeding machine →②Material Barrel Pre-drying and Stirring raw materials →③Main machine melting raw materials →④Non-stop screen changer to filter raw material impurities→⑤High-precision die head flow channel uniform extrusion→⑥Cooling and forming the blank (strip blank) →⑦Oven heating and shaping →⑦five roller wheels first stretching →⑧(if need printing information on strap, put the printing machine before embossing, only single color can online printing)→⑨Embossed →⑩Oven tempering and shaping second strength →⑪Water tank Cooling(Set in the lower part of the setting oven) →⑫winding finial PP strapping

Features of embossing wheel:
1.The packing belt embossing wheel is a device used for embossing a pattern, text or a specific mark on a packing belt (such as PP packing belt, PET packing belt, etc.) . These embossing wheels are usually installed in the embossing device of the Packer, through the contact between the roller and the packing belt, forming the desired indentation or pattern on the packing belt.
2. Embossing wheel after nitriding, heat treatment surface hardness can reach 60 degrees, strong and durable, this embossing machine embossing the surface of the packaging belt lines clear, rough enough, automatic packaging machine using belt force.
3.Embossing machine upper and lower two flower wheel with synchronous gear, ensure up and down synchronous rotation, ensure that the two sides of the flower spinning packaging belt is fully consistent, increase the packaging belt's beauty and transparency. When the upper and lower two flower wheels are assembled, there is a fixed gap which never collides, thus prolonging the service life of the flower wheel.

Application of PP strapping

Which are widely used in packaging, printing, textile, ceramics, printing, logistics, home appliances and other industries.

About After-sales

We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:

Pre-sales:

1.Layout plan of PP belt making machine.

2.Analysis of the cost of PP tape making machine.

3.Raw materials that can be used for PP tape making machine.

After-sales service:

1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.

2.Installation, commissioning and training of PP belt making machine.

3.Maintenance service of PP belt making machine.

4.Regular maintenance and repair

5.Troubleshooting and diagnosis

6.Software updates and upgrades

7.Spare parts and accessories

8.Training and technical advice
