High quality 5-15mm single screw PP strapping equipment PP strapping production line with Siemens motor
Introduction of PP strapping production equipment:

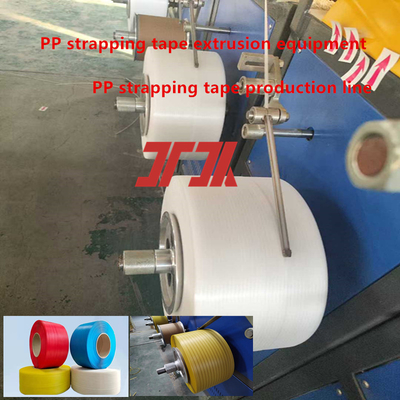

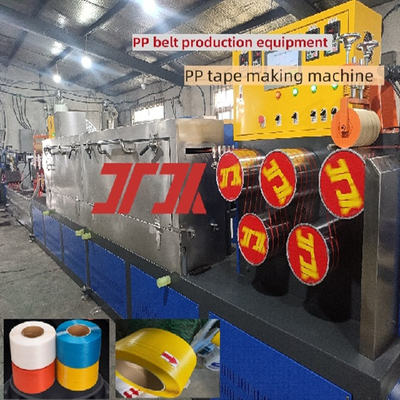

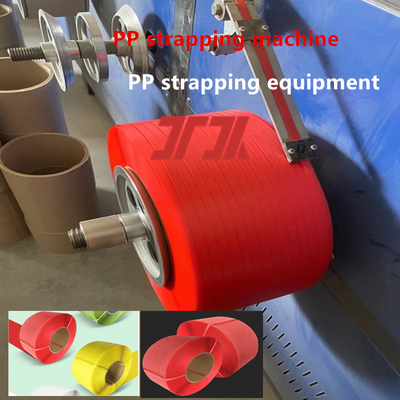

PP strapping tape production line is a high-end intelligent extrusion equipment that can produce PP tape: width: 5-19mm, thickness: 0.3-1.2mm
Raw materials-----PP strapping equipment can produce plastic raw materials:
100%recycled materials or PP polypropylene new materials to produce strapping tape;
Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping tape acceptance standards;
Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.
Embossing wheel----TEmbossing wheel---The upper and lower patterns are consistent, the lines are clear, the patterns are neat, the embossing is adjustable, the quality is high-end, the material is SKD-11, wear-resistant and durable.
Auxiliary equipment:
PP strapping equipment is equipped with 3 sets of auxiliary feeders,
Dyeing masterbatch can be added to change the color of PP strap
Filling masterbatch can be added to reduce the cost of PP strap
Defoaming agent can be added to eliminate moisture in PP raw materials.
EXTRUSION PARAMETERS TABLE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
100% PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Features:
High-quality and durable strapping equipment----Sturdy and durable
Siemens motor, excellent performance, energy-saving and environmentally friendly---Matched Siemens motor
Guomao reducer, stable operation, low failure rate---Guomao reducer
High-speed transmission chain, high tensile strength, low noise---Chain transmission
Special screw for extruder, uniform plasticization---Zhoushan Screw
Automatic screen changer, 24-hour non-stop production---Automatic screen changer
ADVANTAGES
Advanced technology----PP strapping tape production line has advanced technology. After continuous research and development, operation, the products produced are advanced and suitable for various strapping machines;
Low failure rate----PP strapping tape production line has been continuously developed, improved, and tried, the equipment failure rate is low, reducing later maintenance and saving costs by more than 20-30%;
PLC control----Adopting PLC control system, unique built-in memory parameters, the same product does not need to be debugged multiple times.
Automation----PP strapping tape production line has a high degree of automation, does not require multiple manual operations, easy and simple.
Energy saving----PP strapping tape production line adopts energy-saving and environmentally friendly design, with its own temperature control system, no need to heat all the time, saving more than 30-40% of power loss.
About us:
We have more than 30 years of manufacturing experience in the PP/PET strapping industry, and our R&D and after-sales personnel often go abroad to study;
We are a manufacturing factory with our own production workshop, and all accessories are processed by our own lathes.
We have our own production team, R&D team, after-sales team, sales team, etc.
The quality of the machines we produce is stable and the after-sales service is guaranteed.
After sales service
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP belt making machine.
2.Analysis of the cost of PP tape making machine.
3.Raw materials that can be used for PP tape making machine.
After-sales service:
1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP belt making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
FQA:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
