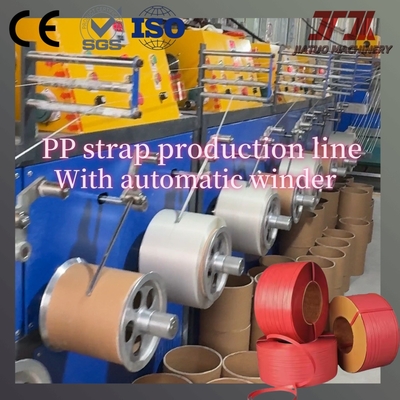

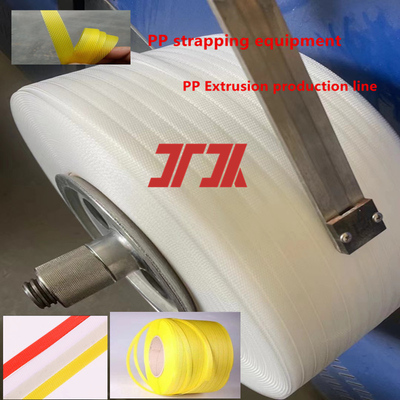

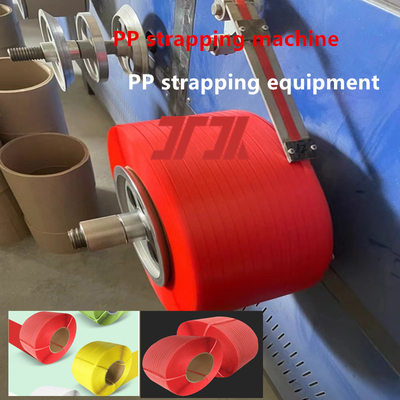

Plastic extruder 5-19mm PP polypropylene strapping tape production line PP strapping tape extrusion machine
Line speed up to 300m/min
Introduction of PP strapping production equipment:
PP strapping tape, also known as polypropylene strapping tape, is a strapping tape made of polypropylene brushed resin as the main raw material. It has superior characteristics:
Good plasticity-----can be formed into various shapes and sizes as needed, width: 5-19mm, thickness: 0.3-1.2mm.
Strong breaking tensile force----has a high load-bearing capacity, suitable for various occasions that require packaging and fixing.
Bending resistance----will not easily break or damage even after multiple bending.
Low density----relatively light weight, easy to carry and use.
PP strapping tape is also very easy to use, so it is widely used in many fields, including but not limited to logistics, packaging, transportation, electronic products, hardware, home appliances, clothing, etc.
Auxiliary equipment:
PP strapping equipment is equipped with 3 sets of auxiliary feeders,
Dyeing masterbatch can be added to change the color of PP strap
Filling masterbatch can be added to reduce the cost of PP strap
Defoaming agent can be added to eliminate moisture in PP raw materials.
EXTRUSION PARAMETERS TABLE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
100% PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Main features:
Raw materials----PP strapping tape production equipment uses PP polypropylene granules, new materials or recycled materials, with low production costs and large demand.
Advanced technology---- PP strapping tape production equipment has been continuously developed, improved, and upgraded, with advanced equipment technology. The PP strapping tape produced has a small error range and high precision, which is well received by customers.
Extruder---- PP strapping tape equipment uses metering extrusion, and the flow channel is uniform, so that each PP tape produced has the same thickness.
Screw---- PP strapping tape equipment uses a special screw for extruder, which has good plasticization, uniform extrusion, wear resistance, and long service life.
ADVANTAGES
1. Flexible Extrusion Technology – Equipped with both twin-screw and single-screw extrusion systems, allowing customization based on production needs.
2. Cost-Efficient Material – Uses 100% recycled material, reducing raw material costs while supporting sustainability.
3. Fully Automated PLC Control – Ensures precise and efficient production with minimal manual intervention.
4. Stable and Uniform Extrusion - Pressure sensors and precision die head design ensure stable plasticization and consistent output.
5. Advanced Drying System – High-performance dehumidifier ensures optimal material dryness, resulting in strapping with high tensile strength and superior impact resistance.
6. Energy saving and environmental protection---Energy saving and environmental protection oven, saving more than 30% of electricity
7. High speed --- High speed operation machine, line speed can reach 300 meters/minute, advance production by more than 40%, and reduce manual operation by 1-2 people.
Application of PP strapping
Packaging and Logistics:
PP strapping is widely used to secure cartons, boxes, and packages, ensuring safe and stable transportation of goods.
Printing and Paper Industry:
It is ideal for bundling paper rolls, newspapers, and magazines, facilitating efficient storage and shipment.
Food and Beverage Industry:
PP strapping effectively secures bottled beverages, canned goods, and other packaged food items, maintaining product integrity during transit.
Agriculture:
It is commonly used for bundling crops, hay bales, and other agricultural products, providing durability and ease of handling.
After sales service
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP belt making machine.
2.Analysis of the cost of PP tape making machine.
3.Raw materials that can be used for PP tape making machine.
After-sales service:
1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP belt making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
FQA:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
