100% Recycled Material Using PP Strapping Band Making Machine With Automatic Winder 5-19mm Width Customized
Specification of PP straps double output making machine
| Item |
Product name |
Detailed parameters |
| 1 |
Materials |
PP polypropylene new material/100% recycled material |
| 2 |
Product |
PP strap |
| 3 |
Capacity |
120-150kg/h |
| 4 |
Total install power |
80kw, (Operating power 50-55%) |
| 5 |
Strap width |
5mm-19 mm |
| 6 |
Thickness |
0.4 mm-1.2 mm |
| 7 |
Manpower |
1-2person/shift |
| 8 |
Workshop required |
L (28m) ×W (2m) ×H (4m) |
| 9 |
Power source |
380V, 50Hz, 3Phase |
| 10 |
Electric components |
Schneider |
| 11 |
Inverter |
INVT |
| 12 |
Switches+Thermostat |
Taiwan Fotek |
| 13 |
Motor power |
Gugao |
| 14 |
Solid state relay |
Taiwan Fotek |
| 15 |
Bearing |
FSB |
Feature of PP strap making machine
1. Better tensile strength: the PET strap production line has the tensile strength of the steel belt, and the ductility is good, and the anti-impact performance is better. It is not easy to break, and it can ensure the safety of product transportation.
2. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ℃, can be used under the environment of 120 ℃ for a long time not to distort,it has a good stability.
3. Environmentally friendly: the steel belt will rust due to exposure to the air, and the rust is highly permeable to the packaging. PET packing tape is beautiful and not rusted, but avoid unnecessary worry. It can also be recycled.
4. Good flexibility and safe operation: the PET packing strip has no sharp edge with steel belt, it will not scratch the package, and it will not hurt the hand. You don't need a special tool when you cut it, even if it's tight, it doesn't hurt when you cut it.
5.High quality packaging ideal products: PET packaging with all kinds of bright colors, shiny, high quality, the most ideal packaging products of high-end packaging
PLC control system
Using the microcomputer processing to adjust the extruder speed, maintain pressure stability, orderly supply logistics to optimize the feeding process. Ensure the smoothness of die extrusion.
Mold: Made of high quality die steel, compact structure, reasonable connection, easy to replace. We can produce 8-19mm products without changing the die head. 5mm need fixed die head.

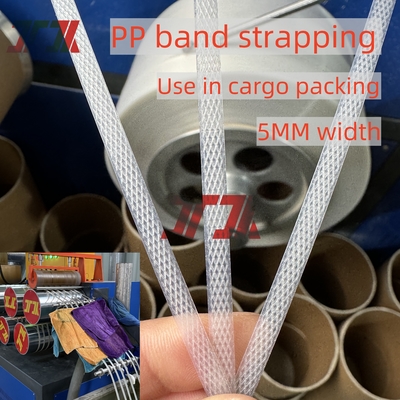

Application of PP strapping
PP Packing Strap (PP Plastic Belt) is a globally recognized packaging material that serves as a high-strength alternative to traditional steel straps.
With years of technological advancements and cost reductions, PP packing straps are now widely adopted across multiple industries, including:
Steel & Aluminum
Chemicals & Synthetic Fibers
Paper & Packaging
Brick & Ceramics
Fasteners & Hardware
Tobacco & Electronics
Textiles & Wood Processing
As the leading steel strap substitute, PP packing straps deliver exceptional strength while offering greater efficiency and cost-effectiveness.
FAQ
Q: What will you do for the order?
A: Our service likes below:
---------Before order: We will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
------During order: company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers' requirements and provides detail order list and matching manufacturer for reference for customer.
After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer's locale in time when we provide service for client again.
------ After order: we will offer 12months after sales service freely, but our service will be life-long. if some parts are broken, we will send them by express, air or ship as soon as we can
