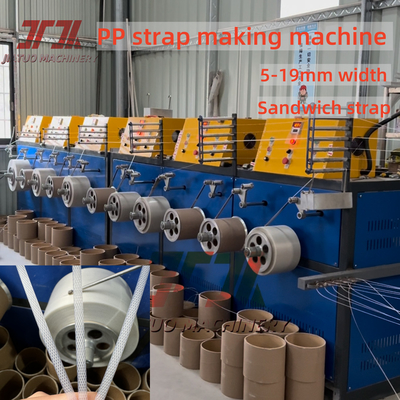

5-19mm Width PP Plastic Strapping Making Machine With Eco-Friendly Strap And 0.3mm Width Small Tolerance

5-19mm Width PP Plastic Strapping Making Machine With Eco-Friendly Strap And 0.3mm Width Small Tolerance

Polypropylene Strapping Band Production Line of Application

• This machine can be used to meet the needs of cartons, tobacco, clothing, paper, electronics, wooden boxes, fruit,electrical (such as refrigerators, washing machines, color TV), food and other industries.

• It can produce different width and thickness pp straps according to the requirement of the clients.​

• It can using the 100% recycled material or mixed the new and recycled material together, which can reduce the product cost and get a good profit.

PP strapping making machine of Advantages

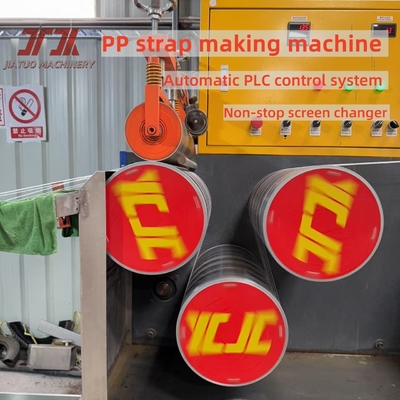

1. Smart PLC Control System

Automatically stores last-used parameters for quick setup

Ensures consistent production quality

2. Superior Tensile Strength

5mm width × 0.45mm thickness strap achieves 50kg pull force

Exceeds industry performance standards

3.High-Temperature Resistant Design

Maintains stable operation in demanding environments

4.Energy-Efficient Operation

Low power consumption reduces operating costs

Automated processes minimize labor requirements

5.Premium Quality at Competitive Pricing

Robust construction for long service life

Cost-effective manufacturing solution

6.High-Capacity Production

Stable output of approximately 6 tons per 24 hours

Consistent performance for continuous operation

7.Precision Manufacturing

Width and thickness tolerances surpass industry standards

Ensures uniform product quality

The parts of PP strap making machine

​ 1.Mainframe part

• Single Screw Extruder:we using the Material 38crmoaAL, it mainly used stirring and melting of raw materials, Extruded into embryo strap

• Barrel:Drying the raw material and giving the screw a melt

​

• Automatic screen filter changer: We use an automatic screen filter changer, does not need stopping to change of it. 4 sets net filter mesh using can be change.

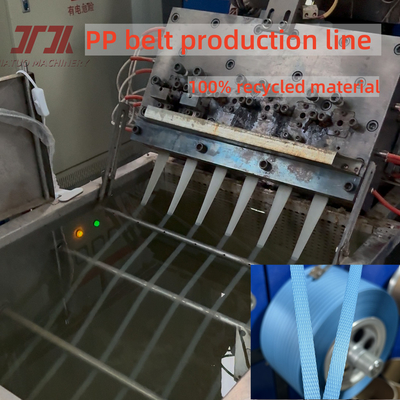

• Die head:According to the machine to use fixed mould or adjustment mould which can make 5-19mm width, for example: 4 output straps making machine can be used to produce 4 moulds with embryo straps at the same time. we have 1/2/4/6/8/12 straps output in the same time, depend on the capacity you need.

2.Cooling tank: cool down the embryo straps(The best temperature makes 20 degrees below )

3.Stretching part: Instantly extends the embryo straps to 10-12 times its lengt,then it undergoes a second stretching to make the packing straps shape with uniform width and thickness

4.Shaping part: Re-shaping to reduce the probability of deformation after winding

​

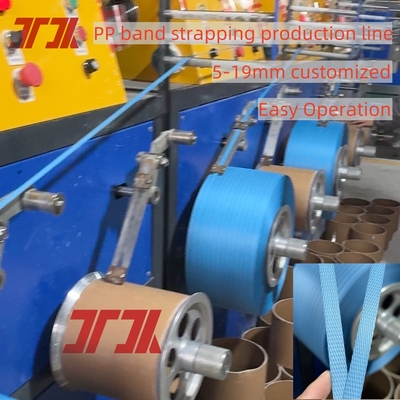

5.Winder: rewinding the strapping produced by the machine, can be choose semi-automatic winder and fully automatic winder.

                   Paper core specification:200 mm X180 mm(can Customized)

                   Winding specifications:5-19mm

PP strapping finished products

Certifications:

  Shenzhen Jiatuo Plastic Machinery Co., Ltd. is a privately-owned enterprise specializing in manufacturing high-end intelligent PP/PET strap making machine and other packaging industry zone, our company was founded in 2012 and has the most advanced computer numerical control machine tools and machining centers, we have passed the ISO9001 quality management system certification and our machines have passed environmental protection testing certification, using the an exclusive memory system.

Packing & Delivery

FAQ

Q: What about the payment terms?
----Always 30% down payment as deposit,70% balance payment after inspection before shipping.

Q: What is your guarantee time?
----Our guarantee time is 12 months.

Q: If you will send engineer coming to our factory to install and test the machines?
----Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.

Q: If you have CE,SGS,ISO certificate?
----Yes,except these,if you also need other certificates,we also can help to apply.
