High Output 125kg/H Packing PP 2 Straps Making Machine Supplier With Adjustment Grooves And Mould
Technical Parameters of PP 2straps making machine
|
Item
|
Value
|
|
Application
|
Straps
|
|
Plastic Processed
|
PP
|
|
Condition
|
New
|
|
Screw Design
|
Single-screw or double screw
|
|
Screw Material
|
38CrMoALA
|
|
Screw diameter (mm)
|
90 (Can be choose)
|
|
Screw L/D Ratio
|
28:1
|
|
Running Speed
|
220-300m/min
|
|
Place of Origin
|
China Shenzhen
|
Feature of PP strap production line
1. High Production Capacity
These machines are designed for high-speed production, capable of producing large quantities of PP strapping in a short time.
2. Automated Operation
Modern PP strapping machines are fully automated, reducing the need for manual intervention and ensuring consistent quality.
3. Precision Extrusion
The machines use advanced extrusion technology to produce strapping with uniform thickness, width, and tensile strength.
4. Customizable Width and Thickness
PP strapping machines can be adjusted to produce strapping bands of various widths and thicknesses to meet specific customer requirements.
5. Material Efficiency
These machines are designed to minimize material waste, ensuring efficient use of raw materials and reducing production costs.

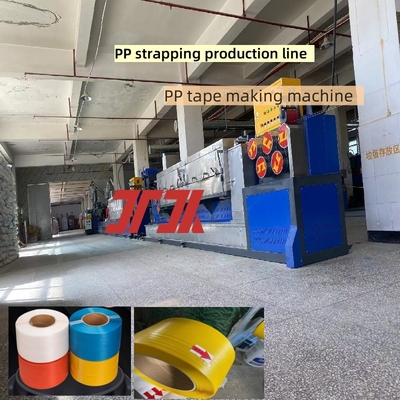

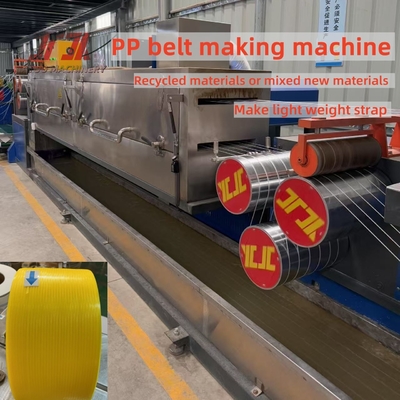

Product Description of PP strap production line
PP (Polypropylene) strapping making machine are specialized equipment designed to produce high-quality PP strapping bands used for bundling and securing loads

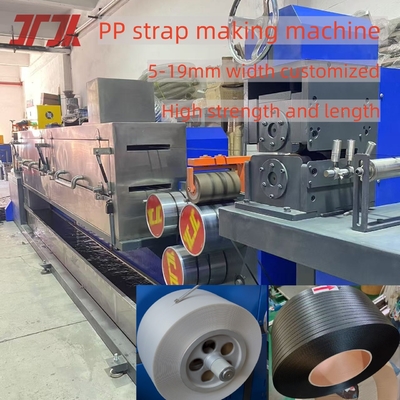

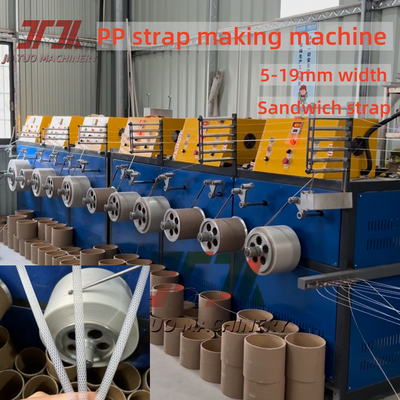

JIATUO PP strap making machine has a high production capacity of 5-19mm width and 0.5-1.2mm thickness, and the length of the strips is long enough to achieve cost savings.
PP Packing Belt Production Line – Process Flow
-
Raw Material Feeding →
-
Mixing & Stirring →
-
Pre-Drying →
-
Melting & Precision Extrusion →
-
Cooling & Belt Embryo Formation →
-
Oven Preheating →
-
Primary Stretching →
-
Secondary Stretching →
-
Embossing (Surface Patterning) →
-
Tempering & Heat-Setting →
-
Final Cooling →
-
Finished Product Winding
Tips: if you have a choose of printing that you can printing first and then embossing in the project of eight.

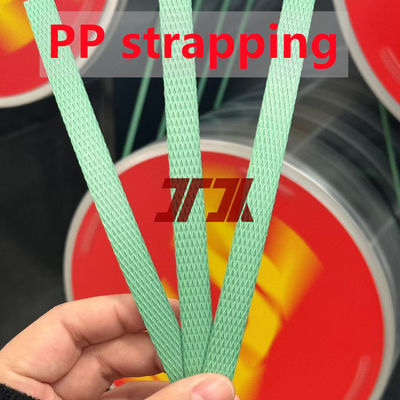

Applications of PP strap
1. The packing belt used for binding cement brick factory has high tensile strength and high temperature and cold resistance.
2. The packing belt used in aluminum steel strapping factory has high tensile strength, high temperature and cold resistance, and is not easy to break.
3. Chemical fiber packing belt, not easy to break, Packing belt for heavier products,pulling force up to 1000KG.
After Service
1.Free installation and debugging
2.Provide all kinds of product formula, technology and chemical material manufacturer information
3.According to the customer's requirements, provide technical guidance
4.Technical training for employees of customers
5. Responsible for maintenance service, door to door service if necessary.
