380kg/H Capacity PP Belt Strapping Extruder Production Line With 5-19mm Customized

380kg/H Capacity PP Belt Strapping Extruder Production Line With 5-19mm Customized
380kg/H Capacity PP Belt Strapping Extruder Production Line With 5-19mm Customized
380kg/H Capacity PP Belt Strapping Extruder Production Line With 5-19mm Customized 380kg/H Capacity PP Belt Strapping Extruder Production Line With 5-19mm Customized 380kg/H Capacity PP Belt Strapping Extruder Production Line With 5-19mm Customized 380kg/H Capacity PP Belt Strapping Extruder Production Line With 5-19mm Customized 380kg/H Capacity PP Belt Strapping Extruder Production Line With 5-19mm Customized

Large Image :  380kg/H Capacity PP Belt Strapping Extruder Production Line With 5-19mm Customized

Product Details:
Place of Origin: CHINA
Brand Name: JIATUO CHINA
Certification: IS CEO
Model Number: JTPP-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plastic film
Delivery Time: 30-40days
Payment Terms: L/C, T/T

380kg/H Capacity PP Belt Strapping Extruder Production Line With 5-19mm Customized

Description
Strap Color: Single/Multi-Color Strap Speed: >260m/min
Strap Core Diameter: 406*150mm / 200*180mm Strap Thickness: 0.4-1.2mm
Strap Tension: Adjustable Strap Width: 5-19mm
Power Supply: 380V/220V Exchange Filter: Fully Automatic
Screw Size: Single And Double Screw Production Capacity: 2.8T-12T/24hours
Highlight:

5-19mm PP Belt Strapping Extruder

,

380kg/H PP Belt Strapping Extruder

,

Customized PP Belt Strapping Extruder

380kg/H Capacity PP Belt Strapping Extruder Production Line With 5-19mm Customized



Specification of PP straps double output making machine



Item Product name Detailed parameters
1 Materials PP polypropylene new material/recycled material
2 Product PP strap
3 Capacity 120-150kg/h
4 Total install power 80kw, (Operating power 50-55%)
5 Strap width 5mm-19 mm
6 Thickness 0.4 mm-1.2 mm
7 Manpower 1-2person/shift
8 Workshop required L (28m) ×W (2m) ×H (4m)
9 Power source 380V, 50Hz, 3Phase
10 Electric components Schneider
11 Inverter INVT
12 Switches+Thermostat Taiwan Fotek
13 Motor power Gugao
14 Solid state relay Taiwan Fotek
15 Bearing FSB

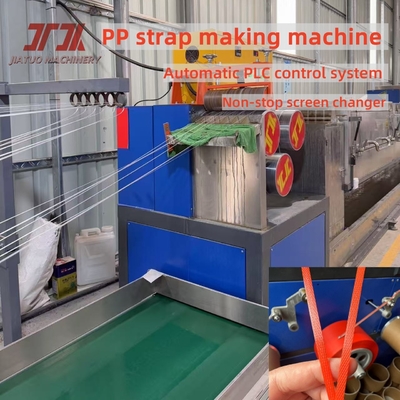

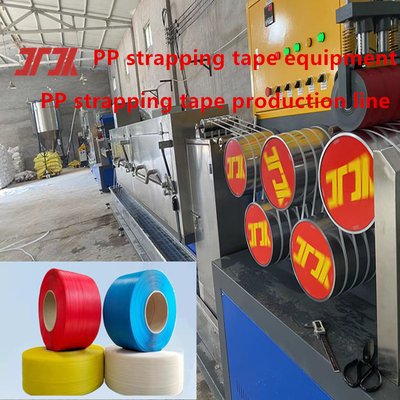

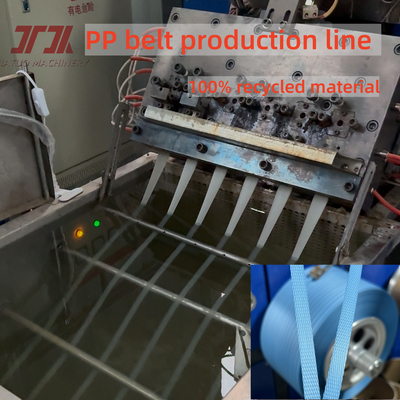

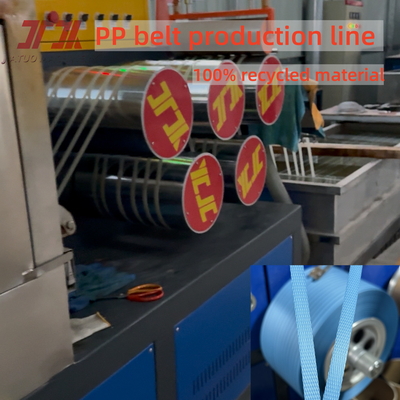

Description of PP belt making machine

1. Mainly for making PP strapping, which is widely use in packing industry, for example: cartons, fruit, agriculture industry etc.

2.The raw material can be 100% recycled material, which can reduce the Pproduce cost and get a good profit.

3.The PP bale is the substitution of the steel strap and has a lot of advantages such as good extension, high temperature resistant, easy use.


Feature of PP strap making machine

1. Production of raw materials can be used to produce packaging belts with recycled materials or mixed new materials. It is also possible to add calcium carbonate according to customer conditions to reduce production costs, increase product profit, and market competitiveness.
2. The output is high, and the finished line speed can reach 260m/min.
3. The appearance of the whole machine has been optimized, beautiful and high-grade, durable and durable.
4. High-precision die parts make the product forming quality stable, width and thickness fluctuations are far less than the national standard; unique network changing device greatly reduces the network changing time.
5. High-precision high-quality screw, using well-known brand, unique parameter design, with the advantages of large extrusion, good plasticization, high hardness and high wear resistance.



Application of PP strapping



PP packing strap, also known as PP plastic belt, is a world widely used new type package material substitute for steel belt.
With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum
industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry.
It is most widely used steel belt substitute with high strength.



380kg/H Capacity PP Belt Strapping Extruder Production Line With 5-19mm Customized 0



FAQ



Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or Made in China trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
