Customized plastic machinery PP belt making machine PP plastic belt equipment for high-end extrusion equipment
PRODUCT DESCRIPTION:
PP strapping tape, also known as polypropylene strapping tape, is a strapping tape made of polypropylene brushed resin as the main raw material. It has superior characteristics:
Good plasticity-----can be formed into various shapes and sizes as needed, width: 5-19mm, thickness: 0.3-1.2mm.
Strong breaking tensile force----has a high load-bearing capacity, suitable for various occasions that require packaging and fixing.
Bending resistance----will not easily break or damage even after multiple bending.
Low density----relatively light weight, easy to carry and use.
PP strapping tape is also very easy to use, so it is widely used in many fields, including but not limited to logistics, packaging, transportation, electronic products, hardware, home appliances, clothing, etc.
Features:
The PP strapping tape production line can produce PP strapping tapes of different colors according to customer requirements, including: red, green, blue, black, yellow, transparent, white, etc.
The PP strapping tape production line can use twin-screw extrusion or single-screw extrusion according to customer requirements, and can produce all-plastic PP tapes or sandwich PP tapes.
Technical Parameters:
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |

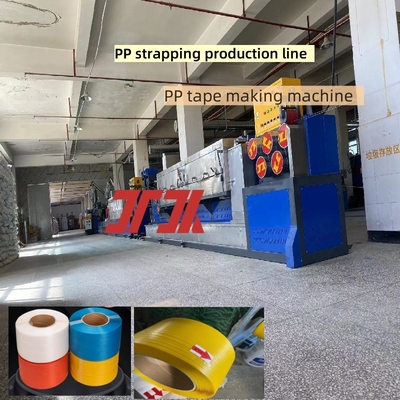

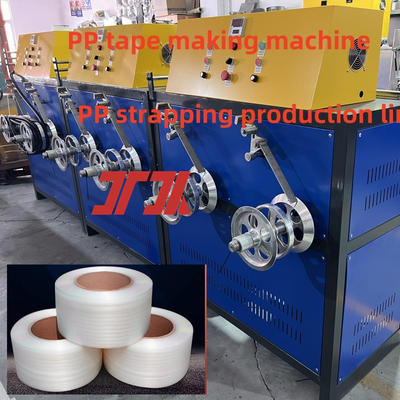

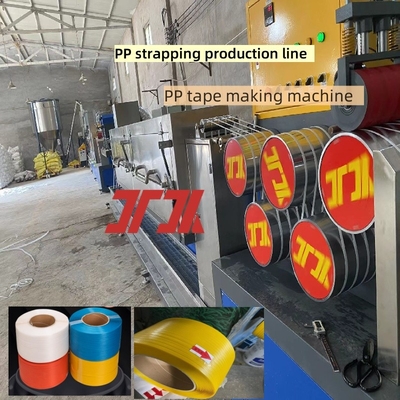

The main components of PP strapping equipment:
Feeder---- transfer PP raw materials into the machine.
Extruder----heat and melt the PP raw materials and extrude them into shape.
Molding mold---- make the molten PP tape embryo pass through the mold to form a strip.
Cooling water tank----cool the extruded PP tape embryo to ensure its shaping.
Tractor----pull out the cooled strapping tape to maintain a stable production speed.
Oven---- heat the strapping tape to improve its strength and toughness.
Embossing machine---- emboss the surface of the strapping tape to increase friction and prevent slipping.
Shaping oven----heat again, shape, and make the PP tape more standardized.
Reeler---- reel the strapping tape into rolls for easy storage and transportation.
Applications:
Our PP strapping equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PP strapping equipment.
2. Analysis of finished product manufacturing costs of PP strapping equipment.
3. Analysis of raw materials used in PP strapping equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PP strapping equipment.
2. Installation, commissioning and training of PP strapping equipment.
3. Repair service of PP strapping equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
8. Training and technical consultation
FQA:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
