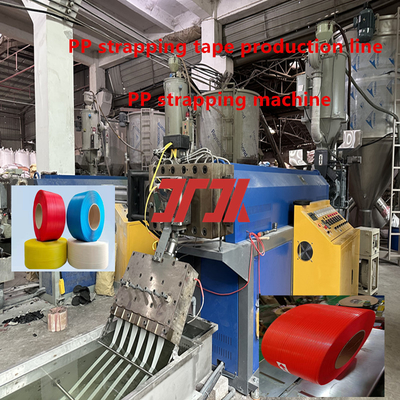

100-150Kg/H PP Strapping Band Extruder Making Machine With 5-19mm Width And Non-Stop Screw Changer

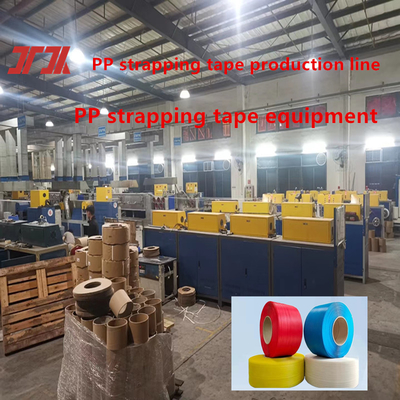

Process flow of PP packing belt production line
① Feeding →② mixture material→③ pre-drying →④ melting and measuring extrusion →⑤ belt embryo cooling and forming →⑥ oven pre-heating →⑦ primary stretching →⑧ secondary stretching →⑨ embossing → oven tempering and setting → cooling → finished product winding
Tips: if you have a choose of printing that you can printing first and then embossing in the project of eight.
Specification of PP straps double output making machine
| Item |
Product name |
Detailed parameters |
| 1 |
Materials |
PP polypropylene new material/recycled material |
| 2 |
Product |
PP strap |
| 3 |
Capacity |
120-150kg/h |
| 4 |
Total install power |
80kw, (Operating power 50-55%) |
| 5 |
Strap width |
5mm-19 mm |
| 6 |
Thickness |
0.4 mm-1.2 mm |
| 7 |
Manpower |
1-2person/shift |
| 8 |
Workshop required |
L (28m) ×W (2m) ×H (4m) |
| 9 |
Power source |
380V, 50Hz, 3Phase |
| 10 |
Electric components |
Schneider |
| 11 |
Inverter |
INVT |
| 12 |
Switches+Thermostat |
Taiwan Fotek |
| 13 |
Motor power |
Gugao |
| 14 |
Solid state relay |
Taiwan Fotek |
| 15 |
Bearing |
FSB |

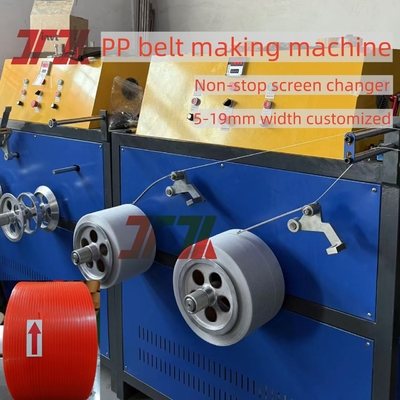

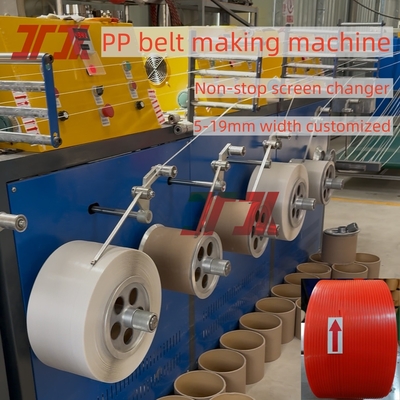

Advantage of automatic screen changer
1. Improved Product Quality: Effectively filter impurities and particles from molten PP materials, ensuring smooth and defect-free surfaces of the strapping, enhancing both appearance and performance.
2. Extended Equipment Lifespan:Prevent impurities from entering production machinery, reducing wear and tear on key components such as extruders and molds, minimizing equipment failures, and extending service life.
3. Stable Production Process:Ensure uniform and stable material flow through continuous filtration, avoiding production interruptions or fluctuations caused by clogging, thereby improving efficiency.
4.Reduced Production Costs:Lower defect rates caused by impurities, reduce material waste and equipment maintenance costs, and optimize overall production expenses.
5. Easy Operation:automatic screen changer doesn't need stop machine to change filter designs are easy to install, replace, and clean, improving production line efficiency.
Application of PP strapping
1.Recycling Industry: PP strapping is used to compress and bundle recyclable materials like cardboard, paper, plastic bottles, and aluminum cans for efficient handling and transportation.
2. Logistics and Transportation: used to secure cargo in trucks, containers, and ships to prevent movement during transit.
3.Retail and Supermarkets: used to bundle products like water bottles, canned goods, and other retail items for display or transportation.
4. Furniture Industry: used to bundle furniture components like legs, frames, and cushions for storage or shipping.
FAQ
Q: What will you do for the order?
A: Our service likes below:
---------Before order: We will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
------During order: company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers' requirements and provides detail order list and matching manufacturer for reference for customer.
After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer's locale in time when we provide service for client again.
------ After order: we will offer 12months after sales service freely, but our service will be life-long. if some parts are broken, we will send them by express, air or ship as soon as we can
