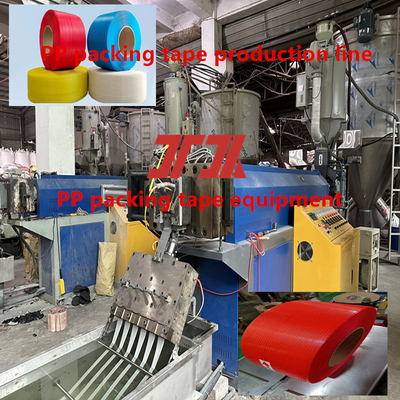

High-speed 5-19mm PP strapping belt production line PP Strapping belt equipment PP servo winding machine
Product Description of pp strap manufacturing machine:
Raw materials-----PP strapping equipment can produce plastic raw materials:
100%recycled materials or PP polypropylene new materials to produce strapping tape;
Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping tape acceptance standards;
Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.
EXTRUSION PARAMETERS TABLE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
>=260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Drying barrel (kg) |
100 |
150 |
200 |
200 |
200 |
200 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
The PP strapping tape production equipment is equipped with a PLC control system and a metering extrusion flow channel to ensure that the produced tapes are of high quality and consistent specifications.
Screw----Twin screw extrusion or single screw extrusion can be used according to customer requirements.
Main features of PP strapping production line
High efficiency----high degree of automation, PLC control system, fast production speed, line speed 200-300 m/min.
High quality----high speed rotation, high output, low power consumption, the finished PP straps produced have good toughness and bending resistance, which meet the requirements of fully automatic strapping machines.
Environmental protection----Use PP new materials or recyclable materials for production, non-toxic, odorless and degradable.
Multi-function----Can produce different specifications of width, thickness, length and weight. Width: 5-19mm, thickness: 0.3-1.2mm.
FQA:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
