Double Screw Plastic PP Packing Band Belt Extruder Making Machine with Good Flexibility
JIATUO Plastic machinery company has nearly 20 years of experience in the packaging belt equipment manufacturing industry in China, with a professional R & D team, sales team, production plant. Our processing equipment imported from Germany, technical stuff often go abroad for further study. The company has more than 50 patents. In China's packaging industry, our company has a good reputation, advanced technology, high-end products, has always been in the first place, we can provide customers with better quality equipment, production of higher-end products.
Technical parameter of PP double strap making equirement
|
Item
|
Value
|
|
Application
|
strap
|
|
Plastic Processed
|
PP strapping
|
|
Condition
|
New
|
|
Screw Design
|
Single-screw/Double screw
|
|
Screw Material
|
38CrMoALA
|
|
Screw diameter (mm)
|
90mm
|
|
Screw L/D Ratio
|
33
|
|
Screw Speed (m/min)
|
>260m/min
|
|
Production capacity
|
125-150KG/h
|
|
Place of Origin
|
China Shenzhen
|
|
Certification
|
CE; ISO; SGN
|
|
Brand Name
|
JIATUO
|
|
Voltage
|
380V 50HZ
|
|
Dimension(L*W*H)
|
20mx2.5mx2.2m
|
|
Power (kW)
|
80KW
|

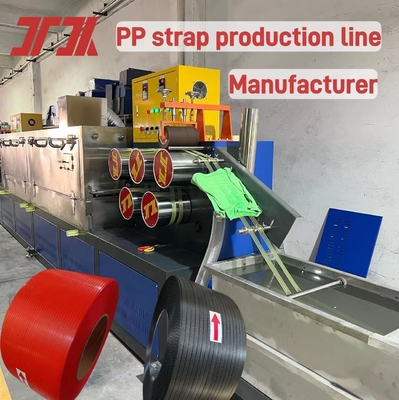

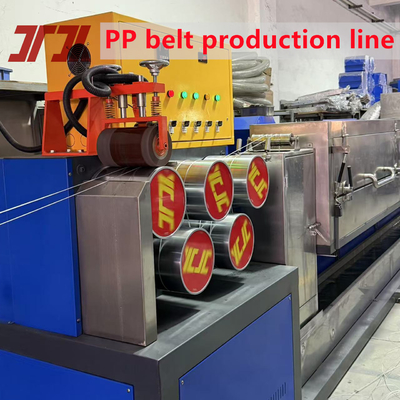

Process flow of PP packing belt production line
Feeding → stirring → pre-drying → melting and measuring extrusion → embryo (belt embryo) cooling and forming → oven preheating → primary stretching → secondary stretching → embossening → oven tempering and setting → cooling → finished product winding
Tips: if you have a choose of printing that you can printing first and then embossing in the project of eight.

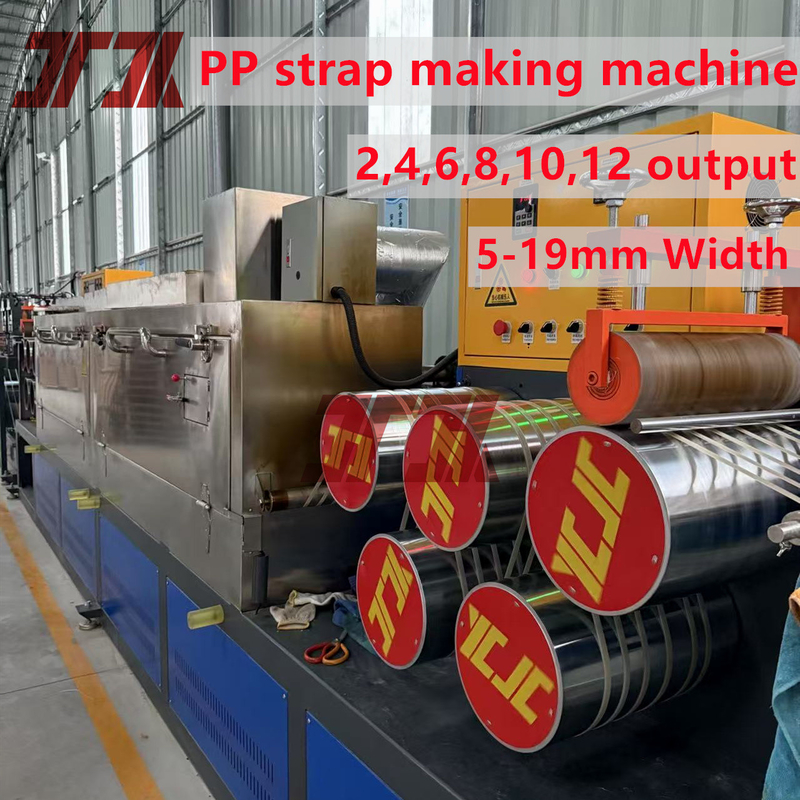

Feature of PP strap making machine
1. High Production Efficiency
Designed for high-speed production, enabling large volumes of PP strapping to be manufactured quickly.
Capable of continuous operation to meet high-demand requirements.
2. Precision Extrusion Technology
Advanced extrusion systems ensure consistent thickness, width, and strength of the PP strapping.
Produces strapping with uniform quality for reliable performance.
3. Customizable Strapping Dimensions
Adjustable settings to produce strapping in various widths and thicknesses to meet specific customer needs.
4. Energy Efficiency
Equipped with energy-saving mechanisms to reduce power consumption and lower operational costs.
5. User-Friendly Interface
Features an intuitive control panel or touchscreen for easy operation and monitoring of production parameters.
After service
1. Pre-sale service
To provide information, market research and forecasting, provide consultancy, offers a variety of convenience and market service and so on.
Pre-sale service's main purpose is to assist the clients prepare the project planning and system requirements analysis, enable our products to maximize meet customer needs, but also to maximize customer investment play the comprehensive economic benefits.
2. After-service
1 Free installation and debugging
2 Provide all kinds of product formula, technology and chemical material manufacturer information
3 According to the customer's requirements, provide technical guidance
4 Technical training for employees of customers
5 Responsible for maintenance service, door to door service if necessary.

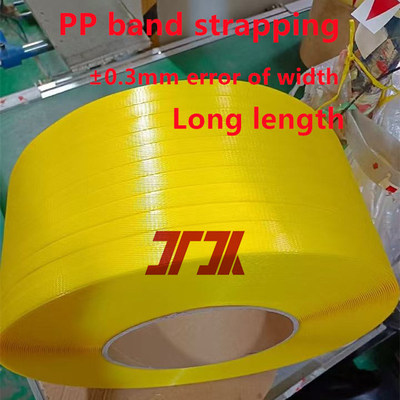

Application of PP strip
1. Logistics and Transportation
In the logistics and transportation industry, PP packing belts play a crucial role. They are extensively used to secure packages of various sizes and weights. Whether it's cartons filled with consumer goods, industrial products, or even large - scale machinery parts, PP packing belts can firmly bind these items together. Their high tensile strength ensures that the packages remain intact during long - distance transportation, handling, and storage.
2.Agriculture
The agricultural industry benefits from PP packing belts in multiple ways. They are used to bundle hay bales, which makes it easier to handle, transport, and store the hay for livestock feed. In addition, when packaging agricultural products like sacks of grains or bags of fertilizers, PP packing belts provide a reliable way to keep the packages sealed. Their durability ensures that the agricultural products are protected from environmental factors such as rain and humidity during storage and transportation in rural areas.
3.E - commerce Packaging
With the booming development of e - commerce, PP packing belts have become an essential part of the packaging process. E - commerce sellers use these belts to secure packages before shipping them to customers. The lightweight nature of PP packing belts helps to reduce shipping costs, while their strong binding ability ensures that the products are well - protected during the complex delivery process involving sorting, transportation, and handling at different courier facilities.
