Energy Efficiency PP Packing Strap Extruder Production Line With Automated Operation 5-19mm

Energy Efficiency PP Packing Strap Extruder Production Line With Automated Operation 5-19mm
Energy Efficiency PP Packing Strap Extruder Production Line With Automated Operation 5-19mm Energy Efficiency PP Packing Strap Extruder Production Line With Automated Operation 5-19mm Energy Efficiency PP Packing Strap Extruder Production Line With Automated Operation 5-19mm Energy Efficiency PP Packing Strap Extruder Production Line With Automated Operation 5-19mm Energy Efficiency PP Packing Strap Extruder Production Line With Automated Operation 5-19mm

Large Image :  Energy Efficiency PP Packing Strap Extruder Production Line With Automated Operation 5-19mm

Product Details:
Place of Origin: CHINA
Brand Name: PP strap making machine
Certification: IS CEO
Model Number: JTPP-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plastic film
Delivery Time: 30-40days
Payment Terms: L/C, D/A, D/P, T/T

Energy Efficiency PP Packing Strap Extruder Production Line With Automated Operation 5-19mm

Description
Video Outgoing-inspection: Provided Strap Tension: Adjustable
Control System: PLC Control System Motor: 37KW(Siemens)
Key Selling Points: Leading German And Japanese Advanced Technology Winder: Double Station Winder
Strap Core Type: Paper/Plastic Warranty: 1 Year
Material: PP Recycled Material/New Raw Material Thickness: 0.4-1.2mm
Width: 5-19mm Screen Changer: Automatic/Manual

Energy Efficiency PP Packing Strap Extruder Production Line With Automated Operation 5-19mm

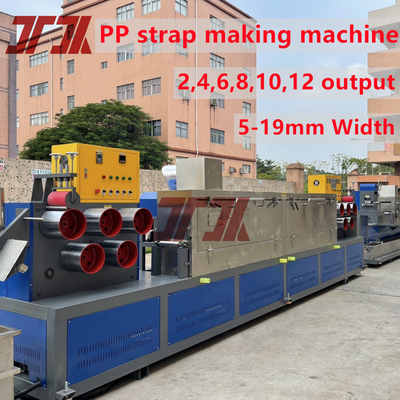

Technical Parameters of PP strap 4output production machine

Screw model 110
Number of strap 4 straps
Width 5-19mm
Thickness 0.3-1.2mm
Screen changer Automatic/Manual
Control system PLC control(Chinese and English)
Production capacity 250-300kg/H
Reducer Brand GUOMAO
Motor Brand Siemens

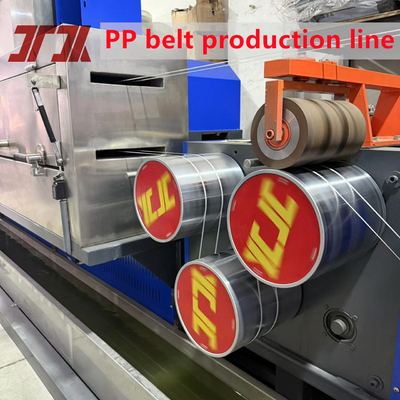

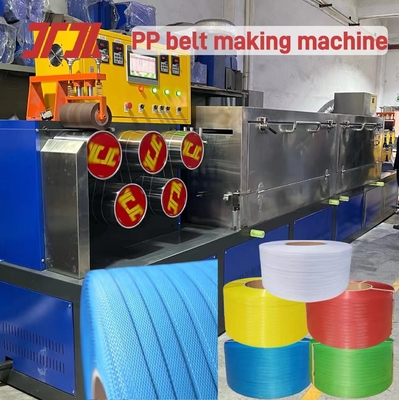

Application of PP belt production line

High tensile strength, limited elongation, good impact resistance, economic, convenient operation and safety.
It is an ideal substitution of traditional steel strap.
Packing for paper, wood, cotton, fiber, metal, aluminum-plastic profile products and various pallets.

Energy Efficiency PP Packing Strap Extruder Production Line With Automated Operation 5-19mm 0

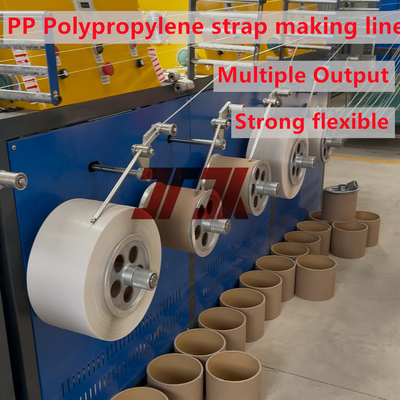

Feature of PP strap production line


1.Compact Design
PP strapping machines have a compact design, saving space in the production facility.

2.Safety Features
Equipped with safety mechanisms such as emergency stop buttons and protective guards to ensure safe operation.

3.High Tensile Strength Production
These machines are capable of producing strapping with high tensile strength, making it suitable for heavy-duty applications.

4.Elastic Recovery
The machines can produce strapping with excellent elastic recovery properties, ensuring that the strapping maintains tension over time.

5.Resistance to UV and Moisture
PET strapping machines can produce strapping that is resistant to UV rays and moisture, making it suitable for outdoor use.



Energy Efficiency PP Packing Strap Extruder Production Line With Automated Operation 5-19mm 1


Why choose us:



1. The final straps can be packed automatically
2. We major in PP Strap Production Line for 20 years
3. Always have sample machine in our workshop
4. Can take customers to see the running machines
5. Can test the machine for customers



Energy Efficiency PP Packing Strap Extruder Production Line With Automated Operation 5-19mm 2
