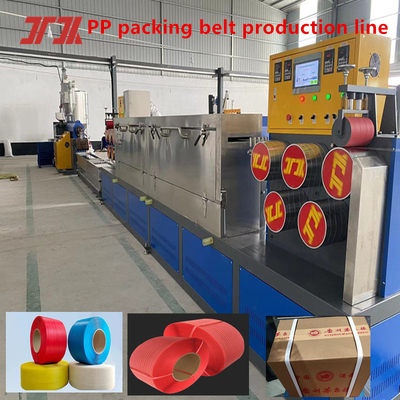

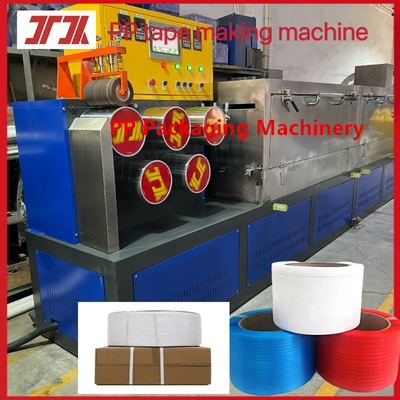

Plastic extruder Packaging tape equipment PP strapping tape production line PP strapping tape equipment with 5-19mm width
Product Description of PP packing belt production equipment:
High output, the finished product line speed can reach 200-350m/min.
The main components of PP strapping equipment:
Feeder: transfer PP raw materials into the machine.
Extruder: heat and melt the PP raw materials and extrude them into shape.
Molding mold: make the molten PP tape embryo pass through the mold to form a strip.
Cooling water tank: cool the extruded PP tape embryo to ensure its shaping.
Tractor: pull out the cooled strapping tape to maintain a stable production speed.
Oven: heat the strapping tape to improve its strength and toughness.
Embossing machine: emboss the surface of the strapping tape to increase friction and prevent slipping.
Shaping oven: heat again, shape, and make the PP tape more standardized.
Reeler: reel the strapping tape into rolls for easy storage and transportation.
PP strapping equipment parameters
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
>=260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Drying barrel (kg) |
100 |
150 |
200 |
200 |
200 |
200 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
PP strapping equipment production process:
Feeding → stirring → pre-drying → melting and measuring extrusion → embryo (belt embryo) cooling and forming → oven preheating → primary stretching → secondary stretching → embossening → oven tempering and setting → cooling → finished product winding
Applications of PP packing belt production equipment:
The PP strapping tape production line can produce PP strapping tapes of different colors according to customer requirements, including: red, green, blue, black, yellow, transparent, white, etc.
The PP strapping tape production line can use twin-screw extrusion or single-screw extrusion according to customer requirements, and can produce all-plastic PP tapes or sandwich PP tapes.
Features of the oven:
1. There is a high-power heating tube inside the oven, and the hot air circulation method makes full use of heat energy to reduce power loss.
2. High-temperature resistant silicone seals keep the oven super tight
3. Special high-efficiency all-stainless steel electric heating tube, fast heating, long-lasting and durable
4. Reheating makes the PP strapping tape shrink in the oven, and the straightness of the strapping tape produced is more standardized and the shrinkage rate is smaller.
Support and Services of PP packing belt production equipment:
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP belt making machine.
2.Analysis of the cost of PP tape making machine.
3.Raw materials that can be used for PP tape making machine.
After-sales service:
1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP belt making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
FAQ:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
