Plastic Machinery PP Plastic Making Machine With Automatic Winder 5-19mm

Plastic Machinery PP Plastic Making Machine With Automatic Winder 5-19mm
Plastic Machinery PP Plastic Making Machine With Automatic Winder 5-19mm
Plastic Machinery PP Plastic Making Machine With Automatic Winder 5-19mm Plastic Machinery PP Plastic Making Machine With Automatic Winder 5-19mm Plastic Machinery PP Plastic Making Machine With Automatic Winder 5-19mm Plastic Machinery PP Plastic Making Machine With Automatic Winder 5-19mm Plastic Machinery PP Plastic Making Machine With Automatic Winder 5-19mm

Large Image :  Plastic Machinery PP Plastic Making Machine With Automatic Winder 5-19mm

Product Details:
Place of Origin: CHINA
Brand Name: JIATUO CHINA
Certification: IS CEO
Model Number: JTPP
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plastic film
Delivery Time: 30-40days
Payment Terms: L/C, T/T

Plastic Machinery PP Plastic Making Machine With Automatic Winder 5-19mm

Description
Strap Color: Single/Multi-Color Strap Speed: >250m/min
Strap Core Diameter: 406*150mm / 200*180mm Strap Thickness: 0.4-1.2mm
Strap Tension: Adjustable Strap Width: 5-19mm
Power Supply: 380V/220V Exchange Filter: Fully Automatic
Screw Size: Single And Double Screw Production Capacity: 2.8T-12T/24hours
Highlight:

Plastic Machinery PP Plastic Making Machine

,

Automatic Winder PP Plastic Making Machine

,

5-19mm PP Plastic Making Machine

Plastic machinery PP plastic making machine with automatic winder

Technical Parameters of PP strap 4output production machine
Screw model 110
Number of strap 4 straps
Width 5-19mm
Thickness 0.3-1.2mm
Screen changer Automatic/Manual
Control system PLC control(Chinese and English)
Production capacity 250-300kg/H
Reducer Brand GUOMAO
Motor Brand Siemens

Plastic Machinery PP Plastic Making Machine With Automatic Winder 5-19mm 0

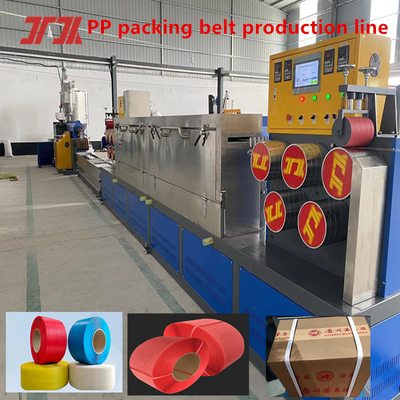

Feature of PP strap production line

1. High Degree of Automation
Equipped with PLC control systems and automatic monitoring devices, the production line can realize automatic operation from raw material feeding to finished product winding. The PLC system can accurately control the production process parameters, such as extrusion speed, cooling time, and winding tension. The automatic monitoring devices can detect any abnormal conditions in real - time, such as material blockage or equipment failure, and immediately send out alarms, which not only improves production efficiency but also reduces labor intensity and human - error - related production problems.

2. Flexible Production Adaptability
This production line can be easily adjusted to produce packing belts of different specifications. By changing the die and adjusting relevant process parameters, it can produce PP packing belts with different widths (ranging from 5mm to 19mm) and thicknesses (ranging from 0.4mm to 1.2mm). This flexibility enables manufacturers to meet the diverse needs of different customers and application scenarios, such as packaging for the logistics, food, and electronics industries.

3. Energy - Saving Design
Adopting energy - efficient motors and advanced heating elements, the production line consumes less energy during operation. In addition, the optimized mechanical structure reduces friction and energy loss, making the production line more environmentally friendly and cost - effective in the long run.


Plastic Machinery PP Plastic Making Machine With Automatic Winder 5-19mm 1



Application of PP strip



1. Logistics and Transportation
In the logistics and transportation industry, PP packing belts play a crucial role. They are extensively used to secure packages of various sizes and weights. Whether it's cartons filled with consumer goods, industrial products, or even large - scale machinery parts, PP packing belts can firmly bind these items together. Their high tensile strength ensures that the packages remain intact during long - distance transportation, handling, and storage.


2.Agriculture
The agricultural industry benefits from PP packing belts in multiple ways. They are used to bundle hay bales, which makes it easier to handle, transport, and store the hay for livestock feed. In addition, when packaging agricultural products like sacks of grains or bags of fertilizers, PP packing belts provide a reliable way to keep the packages sealed. Their durability ensures that the agricultural products are protected from environmental factors such as rain and humidity during storage and transportation in rural areas.

3.E - commerce Packaging
With the booming development of e - commerce, PP packing belts have become an essential part of the packaging process. E - commerce sellers use these belts to secure packages before shipping them to customers. The lightweight nature of PP packing belts helps to reduce shipping costs, while their strong binding ability ensures that the products are well - protected during the complex delivery process involving sorting, transportation, and handling at different courier facilities.



Why choose us:

1. The final straps can be packed automatically
2. We major in PP Strap Production Line for 15 years
3. Always have at least 3 sets of sample machine in our workshop
4. Can take customers to see the running machines
5. Can test the machine for customers
