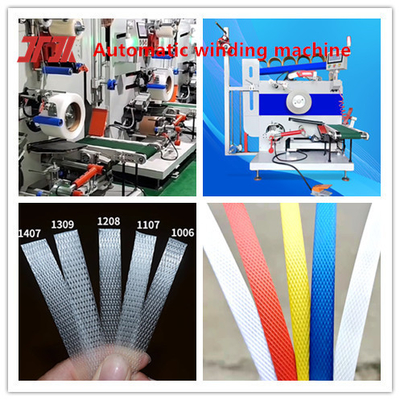

Plastic packaging machinery PP strapping tape extruder PP strapping tape production line Automatic winding machine
Product Description of PP strapping band making machine:
PP strapping tape production line, PP strapping tape equipment, PP strapping machine is a high-end machine that can produce PP strapping tapeThe PP strapping tape production line is a high-end intelligent equipment with a PLC control system, a special screw for the extruder, a non-stop screen changer, etc. The PP strapping tapes produced are of consistent specifications and beautiful appearance, and are widely used in many industries.
Screw----PP polypropylene belt production machine is made of high-quality materials, screw material is 38CrMoALA, to ensure durability and long-lasting performance. In addition, this machine comes with video factory inspection, which makes for easy and accurate quality control.
PLC------PP strapping equipment adopts advanced technology to ensure high efficiency and precision of production. The machine is easy to operate, and the PLC touch screen control system is ideal for various specifications, supports multiple languages, and is easy to debug.
Raw materials--------PP polypropylene new granular material or recycled material
PP strapping equipment parameters
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Different extruder models and output can be customized according to customer requirements.

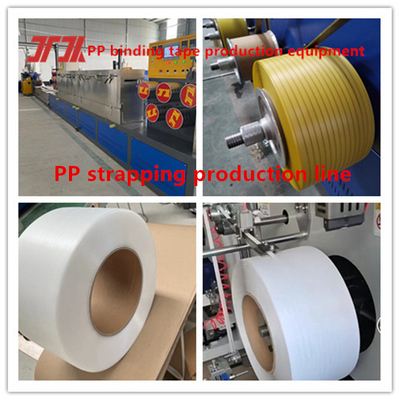

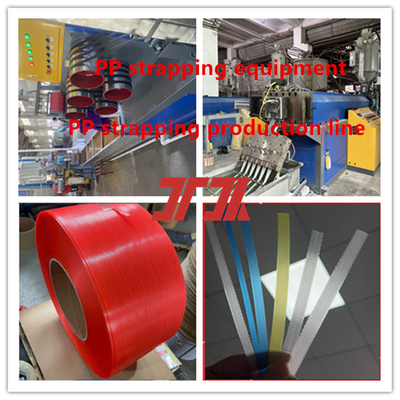

PP strap band extrusion line
PP packing strap making machine
PP strap manufacturing machine
PP strapping roll manufacturing machine
Applications of PP strapping band making machine:
Features of embossing wheel:
1. The embossing wheel is nitrided and heat-treated to achieve a surface hardness of 60 degrees, which is strong and durable. The surface texture of the strapping tape pressed out by this embossing machine is clear and rough enough, and the automatic strapping machine uses strong belt feeding.
2. The upper and lower flower wheels of the embossing machine are equipped with synchronous gears to ensure synchronous rotation of the upper and lower wheels, ensuring that the flower spinning on both sides of the strapping tape is completely consistent, increasing the beauty and transparency of the strapping tape.
3. When assembling the upper and lower flower wheels, a fixed gap is left to prevent collision, which extends the service life of the flower wheels.
The difference between PP strapping equipment and PET plastic steel strapping equipment:
1. Raw materials used in PP strapping equipment: PP polypropylene drawing grade raw materials, new materials or recycled materials
2. Raw materials used in PET strapping equipment: bottle flakes or crushed materials after mineral water bottles are crushed
.
FAQ:
Q: What are the specifications that the PP strapping production line can produce?
A: Width: 5-19mm, thickness: 0.3-1.2mm.
Q: What's the price of this machine please?
A: We have different extrusion capacities and different models, and the corresponding prices are also different.
Q:Can the length of the PP strapping production line be customized?
A: YES
Q:What is the transaction method of PP strapping production line?
EXW ,FOB,CIF
