Plastic packaging machinery PP strapping equipment PP strapping production line for fully automatic strapping machine
Product Description of PP strapping band making machine:

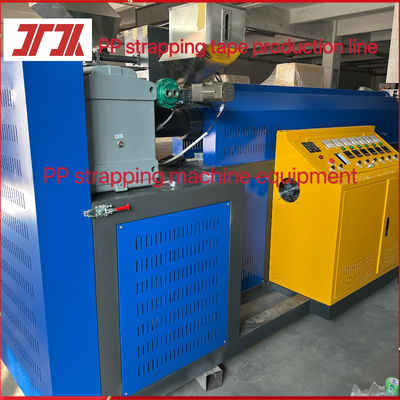

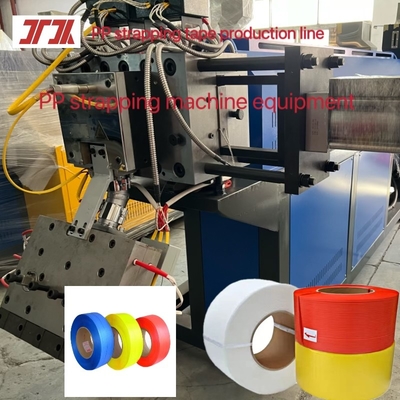

PP strapping belt production line, PP plastic belt equipment, is a high-end intelligent extrusion equipment with PLC control system, special screw for extruder, 24-hour non-stop screen changer, etc. The finished PP strapping belts produced are of consistent specifications, beautiful and generous, and are widely used in many industries.
1, Special twin screw extrusion technology and single screw extrusion technology, can be choose as per customer needs
2, 100% Polypropylene New or recycled material
3, Even plasticization and stable extrusion with PLC automatic control for the full line
4, As per different requirements, changing A coating materials for make strap have better and special function. Foe example, the strap for packing cotton, can be from enhancing the breaking strength and joint strength when welding strap
5, Melt filter with two pistons with air venting design and backflusing
6, Number of strap: 1, 2, 4, 6
PP strapping equipment parameters
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Winding machine |

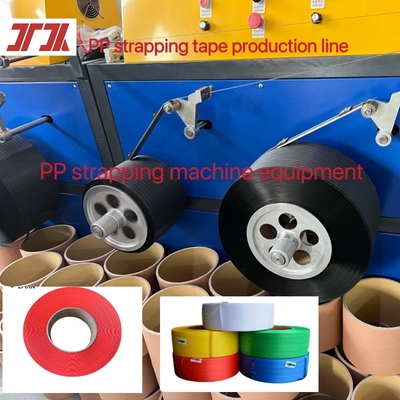

Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Different extruder models and output can be customized according to customer requirements.
PP strap band extrusion line
PP packing strap making machine
PP strap manufacturing machine
PP strapping roll manufacturing machine
Applications of PP strapping band making machine:
Features of embossing wheel:
1. The embossing wheel is nitrided and heat-treated to achieve a surface hardness of 60 degrees, which is strong and durable. The surface texture of the strapping tape pressed out by this embossing machine is clear and rough enough, and the automatic strapping machine uses strong belt feeding.
2. The upper and lower flower wheels of the embossing machine are equipped with synchronous gears to ensure synchronous rotation of the upper and lower wheels, ensuring that the flower spinning on both sides of the strapping tape is completely consistent, increasing the beauty and transparency of the strapping tape.
3. When assembling the upper and lower flower wheels, a fixed gap is left to prevent collision, which extends the service life of the flower wheels.
PP strapping equipment uses raw materials: PP polypropylene drawing grade raw materials, new materials or recycled materials
Main business: PP strapping equipment, PET plastic steel strapping equipment, PP strapping, PET plastic steel strapping, PE stretch film, transparent tape, various strapping machines, etc. The company operates with integrity and quality first.
We currently have 4 companies with strong production strength. We have our own sales team, production team, management team, R&D team, quality control team, after-sales team, etc. We have our own production plant, can quickly deliver according to quality, support customized products, welcome to consult.
FAQ:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping tape??
A: L:36 M.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP strapping equipment look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
