Supply PP plastic extruder PP strapping equipment PP packaging equipment for PLC control system
Specification of PP strap double output making machine
1.PP polypropylene strapping tape extrusion line can produce PP new material/recycled material for use. This makes it an ideal solution for companies that want to reduce costs. The equipment is equipped with a high-quality extruder that can produce polypropylene strapping tape with a width of 5-19mm and a thickness of 0.4-1.2mm, with an error range much smaller than the national inspection standard.
2.The cooling system of the PP strapping production line adopts a circulating water source, a unique circulating cooling process, and multiple sets of shaping guide rails, which make the strapping cooling, shrinking and shaping more fully, the product more stable, and the size more accurate.
3.The oven part of the PP strapping production line adopts a hot air circulation method, with six heating tubes inside, and a unique oven hot air circulation method, which makes full use of heat energy to reduce power loss, and high-temperature resistant silicone seals to keep the oven super tight.
4.The whole machine of the PP strapping production line adopts a PLC control system, a PLC touch screen control system, which replaces the potentiometer to control the speed regulation, can memorize the production parameters, and is more convenient to operate. PLC touch screen control system, which replaces the potentiometer to control the speed regulation, can memorize the production parameters, and is more convenient to operate.
PP strapping equipment extrusion capacity
| Name |
PP strapping production line |
| Number of strap |
4 straps |
| Width |
5-19mm |
| Thickness |
0.3-1.2mm |
| Screen changer |
Automatic/Manual |
| Control system |
PLC control(Chinese and English) |
| Production capacity |
250-300kg/H |
| Reducer Brand |
GUOMAO |
| Motor Brand |
Gugao |
| Material |
PP polypropylene recycled material/new material |
| Control system |
PLC control (English and Chinese) |
Feature of PP strap production line
1. Capacity: 125-150kg/H
2. It can process multi-materials like new PP material, recycled PP material, CACO3 etc.
3. Automatic temperature controller in whole line, frequency inverter technology;
4. The screw and barrel's design adopts gradual-change type and latest reduction ratio in order to enhance plasticization and stable output;
5. Overseas service, installation, staff trainning and technical support.

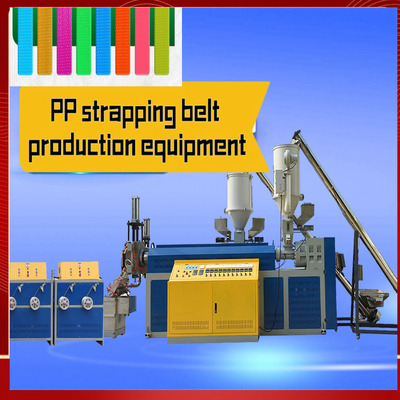

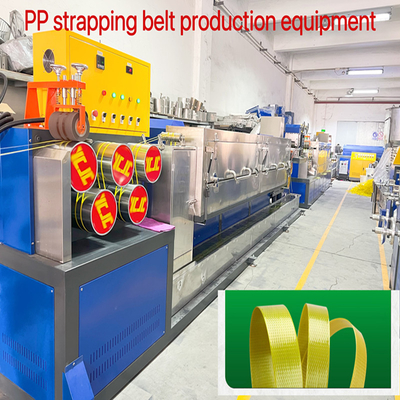

The extrusion Line consist of the following parts
Screw extruder--Die head and mould(two strips)---Cooling water tank---First haul-off---Thermal oven---Second haul-off---Embosser---calibrating---haul off--winder
Advantages of PP strap production line
1-100% recycled PP materials and new raw materials
2-Good dehumidifier drying system to ensure the material equal dry to produce high quality strapping
3-Special design hot forming tensile tank to make good forming, equal width, straight strap.
FAQ:
- Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping tape??
A: L:36 M.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP strapping equipment look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
-
