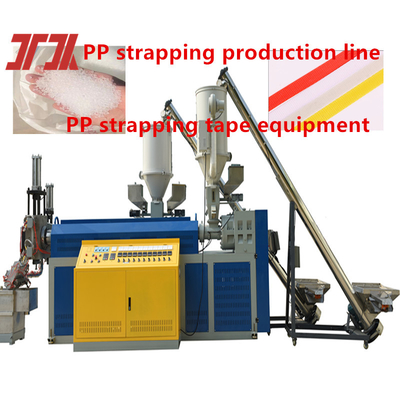

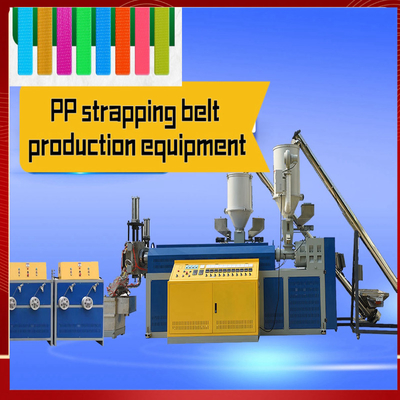

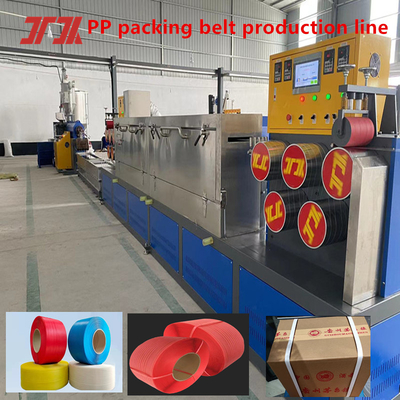

Packaging machinery PP strapping production line PP strapping equipment for PLC control system
Product Description of PP strapping equipment:
The PP strapping tape production line is a high-end intelligent equipment with a PLC control system, a special screw for the extruder, a non-stop screen changer, etc. The PP strapping tapes produced are of consistent specifications and beautiful appearance, and are widely used in many industries.
1. Raw materials-----PP strapping equipment can produce plastic raw materials: recycled materials or PP polypropylene new materials to produce strapping tape;
2. Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping tape acceptance standards;
3. Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.
PP strapping equipment parameters
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Drying barrel (kg) |
100 |
150 |
200 |
200 |
200 |
200 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Different extruder models and output can be customized according to customer requirements.
Applications of PP strapping equipment:
Embossing wheel-------High-precision embossing wheel, clear embossing, adjustable pressure, making the strapping more beautiful.
Wrapping machine--------Constant force winding system, unique design correction device, neat winding, flat and beautiful surface.
Screen Changer--------- Equipped with non-stop automatic screen changer, screen change without stopping, maximize efficiency.
PP strapping equipment can be equipped with an Automatic screen changer or a manual screen changer.
The automatic screen changer does not require downtime to replace the filter, and can produce continuously for 24 hours.
The manual screen changer requires downtime to replace the filter, and the process takes about 30 minutes/time
PP strapping equipment uses raw materials: PP polypropylene drawing grade raw materials, new materials or recycled materials
FAQ:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping tape??
A: L:36 M.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP strapping equipment look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
