Plastic Extruder PP Packing Tape Equipment PP Packing Tape Production Line Servo Winding Machine

Plastic Extruder PP Packing Tape Equipment PP Packing Tape Production Line Servo Winding Machine
Plastic Extruder PP Packing Tape Equipment PP Packing Tape Production Line Servo Winding Machine Plastic Extruder PP Packing Tape Equipment PP Packing Tape Production Line Servo Winding Machine Plastic Extruder PP Packing Tape Equipment PP Packing Tape Production Line Servo Winding Machine Plastic Extruder PP Packing Tape Equipment PP Packing Tape Production Line Servo Winding Machine

Large Image :  Plastic Extruder PP Packing Tape Equipment PP Packing Tape Production Line Servo Winding Machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JT-PP
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50set/month

Plastic Extruder PP Packing Tape Equipment PP Packing Tape Production Line Servo Winding Machine

Description
Name: PP Strapping Tape Production Line Plastic Processed: PP
Processing Type: Extruding Machine Twin Screw Type: Co-rotating Parallel Twin-screw
Winding Machine: Automatic Or Semi-automatic Application: PLC
Highlight:

PP packing tape equipment

,

PP packing tape production line

,

Servo winding machine PP packing tape

Plastic extruder PP packing tape equipment PP packing tape production line Servo winding machine

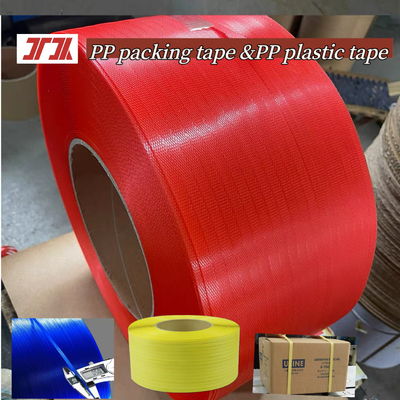

The main raw material of PP strapping tape: PP polypropylene drawing grade resin, due to its good plasticity, strong breaking tensile force, bending resistance, low density, good tensile impact performance, easy to use and other advantages, it is now widely used in various fields.
Raw Materials---------The PP strapping tape is expertly crafted from new PP polypropylene granules or highly efficient recycled materials, maintaining strength and quality.

Specifications--------- Our PP strapping tape offers versatile specifications with a width ranging from 5mm to 19mm and a thickness between 0.3mm to 1.2mm. Furthermore, the length can be tailored specifically to meet the unique demands of each customer.
Color----------------------Tailor the appearance of your PP strapping tape with an array of vibrant colors to choose from, including: pristine white, sleek transparent, sunny yellow, lush green, deep blue, elegant black, and royal purple, crafted to match your exact preferences.
Winding machine: Automatic winding machine or manual winding machine

Extrusion capacity:
Model PP-2 PP-4 PP-6 PP-8 PP-10 PP-12
Raw material PP polypropylene new material/recycled material
Number of tapes 2 4 6 8 10 12
Width(mm) 5-19 5-19 5-19 5-19 5-19 5-19
Thickness(mm) 0.4-1.2 0.4-1.2 0.4-1.2 0.4-1.2 0.4-1.2 0.4-1.2
Line speed(m/min) ≧260-300
PLC control system PLC PLC PLC PLC PLC PLC
Screw Model 90 110 125 135 135 135
Reducer model 200 220 250 280 280 280
Drying barrel (kg) 100 150 200 200 200 200
Screen Changer Automatic/Manua
Production capacity 24H 2.5-3T 6-7T 8-9T 10-11T 12-13T 13--14T

Plastic Extruder PP Packing Tape Equipment PP Packing Tape Production Line Servo Winding Machine 0

Cooling System:
The cooling system of the PP strapping production line adopts a circulating water source, a unique circulating cooling process, and multiple sets of shaping guide rails, which make the strapping cooling, shrinking and shaping more fully, the product more stable, and the size more accurate.

Plastic Extruder PP Packing Tape Equipment PP Packing Tape Production Line Servo Winding Machine 1
FAQ ABOUT PP STRAPPING BAND EXTRUSION LINE

Applicable to balers:

1. Fully automatic baler

2. High-speed baler

3. Semi-automatic baler

4. Handheld electric baler

5. Manual clamp baler


pp strapping roll manufacturing machine
pp strap manufacturing machine
pp strapping roll making machine
pp strap band extrusion line

Plastic Extruder PP Packing Tape Equipment PP Packing Tape Production Line Servo Winding Machine 2

 FQA:

Q: What is the minimum order quantity of the PP strapping tape production line?
A: MOQ: 1 set
Q: What is the extrusion output of the PP strapping tape production line?
A: 80-600KG/H. Different models have different extrusion capacities.
Q: How many strips can the PP strapping tape production line produce?
A: 1-12 strips
Q: What is the price of the PP strapping tape production line?
A: The price varies for different models and can be negotiated.
Q: What is the voltage of the PP strapping tape production line?
A: Standard: 380V/50HZ, which can be customized according to customer requirements.
Q: How long is the delivery date of the PP strapping tape production line?
A: 30-40 Days
