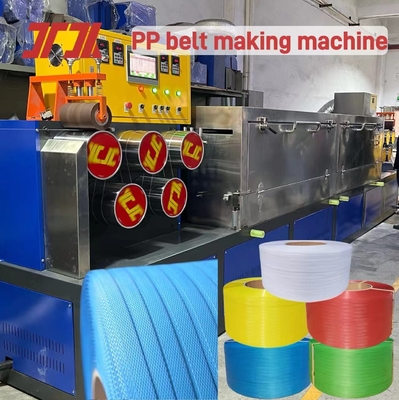

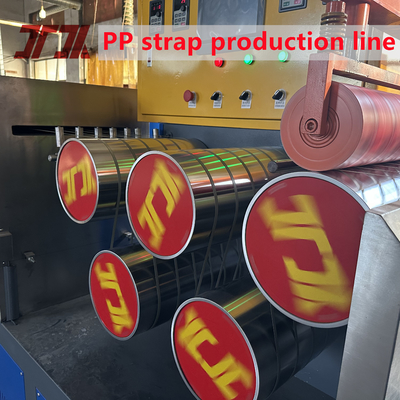

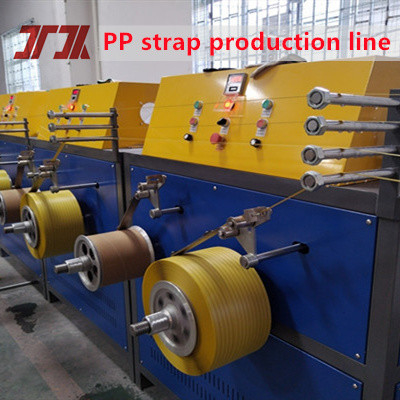

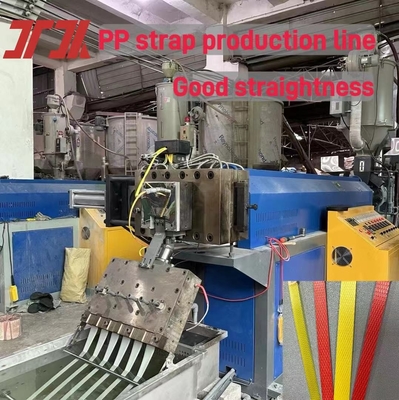

Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer

Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer
Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer
Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer

Large Image :  Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer

Product Details:
Place of Origin: CHINA
Brand Name: PP strap making machine
Certification: IS CEO
Model Number: JTPP-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plastic film
Delivery Time: 30-40days
Payment Terms: L/C, D/A, D/P, T/T
Contact Now

Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer

Description
Video Outgoing-inspection: Provided Strap Tension: Adjustable
Control System: PLC Control System Motor: 37KW(Siemens)
Key Selling Points: Leading German And Japanese Advanced Technology Winder: Double Station Winder
Strap Core Type: Paper/Plastic Warranty: 1 Year
Material: PP Recycled Material/New Raw Material Thickness: 0.4-1.2mm
Width: 5-19mm Screen Changer: Automatic/Manual
Highlight:

PP Plastic Packing Strip Making Machine

,

Automatic Changer PP Strap Making Machine

,

Double-Colors PP Strap Making Machine

Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer



Technical Parameters of PP strap making machine​​

item value
Screw Design Single-screw / Double-screw
Plastic Processed PP
Application Bar, Wire, PIPE, Granules, Sheet, Film, Profile, Plates, Filament, Pelletizing, Straw
Place of Origin China
Warranty 1 Year
Key Selling Points Automatic
Applicable Industries Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Video outgoing-inspection Provided
Warranty of core components 1 Year
Core Components Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw, Other
Machinery Test Report Provided
Screw Material 38CrMoALA
Screw diameter (mm) 75
Voltage 380V 50HZ or customized
Dimension(L*W*H) 20m*2.5m*2.2m
Power (kW) 90
Raw material 100% recycled PP or pellets.
Product Type Extruder
Product PP Band package
Name PP strap Extrusion Machine
After-sales Service Provided Service Machinery Overseas
Finished Products PP strapping band
Key words PP Strap Machine Production Line
Automatic Grade Fully Automaitc
​Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer 4



Advantage of PP strap making machine

1.Special twin screw extrusion technology and single screw extrusion technology can be choosing as per customer needs.
2.Process 100% recycled PP or pellets.
3.Even plasticization and stable extrusion with PLC automatic control for the full line.
4.Number of strap:2/4/6/8 width: 5-19mm thickness:0.4-1.2mm
5.Workers: 2 -3 workers per shift, 12 hours/shift.

Process Flow of PP belt production line

Mix the raw material ratio and stir → plastic particles heating melting → extrusion into water to form a strap embryo → heating stretching molding → embossing → heating and cooling (shaping treatment) → winding → packaging → storage.

Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer 5

FAQ:



A: The brand name of this product is PP STRAP MAKING MACHINE .

2. Q: What is the model number of this product?

A: The model number of this product is JTPP .

3. Q: Where is this product made?

A: This product is made in CHINA .

4. Q: Is this product certified?

A: Yes, this product is certified with IS CEO certification.

5. Q: What is the minimum order quantity for this product?

A: The minimum order quantity for this product is 1 SET .

6. Q: Is the price of this product negotiable?

A: Yes, the price of this product is negotiable.

7. Q: What is the packaging detail for this product?

A: The packaging detail for this product is plastic film .

8. Q: How long does it take for delivery of this product?

A: The delivery time for this product is 30-40days



Double-Colors PP Plastic Packing Strip Making Machine with Automatic Changer 6
