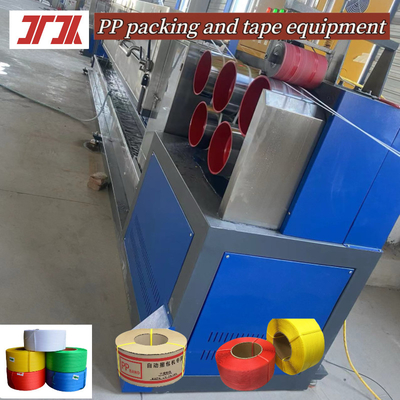

Extruder PP strapping production equipment Servo winding machine 5-19mm width
Product Description of PP strapping production line:
PRODUCT DESCRIPTION
The company has more than 30 years of experience in the strapping equipment manufacturing industry in China. It has a professional R&D team, sales team, production plant, imported processing equipment from Germany, and technical personnel often go abroad for further study and learning. It has more than 50 patented products. In the Chinese packaging industry, our company has a good reputation, advanced technology, and high-end products, and always ranks first. We can provide customers with better equipment and produce higher-end products.
Screw----PP polypropylene belt production machine is made of high-quality materials, screw material is 38CrMoALA, to ensure durability and long-lasting performance. In addition, this machine comes with video factory inspection, which makes for easy and accurate quality control.
PLC------PP strapping equipment adopts advanced technology to ensure high efficiency and precision of production. The machine is easy to operate, and the PLC touch screen control system is ideal for various specifications, supports multiple languages, and is easy to debug.
Raw materials--------PP polypropylene new granular material or recycled material
Screen changer--------Four-net circulation large-area filter screen, 24-hour non-stop screen change, reducing manual operations and advancing production capacity.

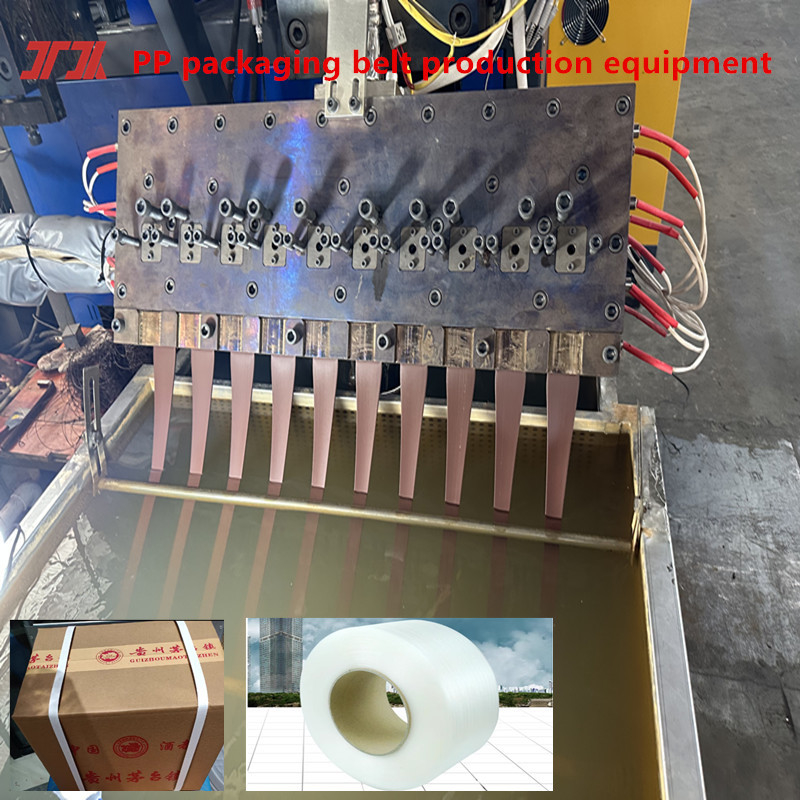

Main die head--------The extrusion flow channel is uniform, and the specifications of the produced PP strapping tape are consistent
Oven------ Constant temperature oven, using heat energy to reduce power loss
Technology-------- Advanced technology, low failure rate, the PP strapping tape produced has small curvature and high elongation, suitable for various semi-automatic strapping machines & fully automatic strapping tapes.

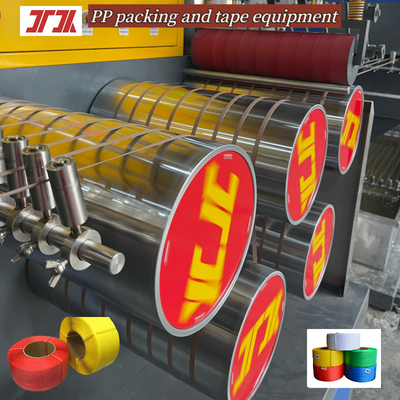

Wrapping machine----------PP strapping tape equipment is equipped with automatic wrapping machine & semi-automatic wrapping machine
Features of PP strapping production line:
- Product Name: PP Strap Making Machine
- Warranty: 1 Year
- Strap Width: 5-19mm
- Screw diameter (mm): 110*3300mm
- Thickness:0.3-1.2mm
- Feeding machine 1 set
- Hopper (150KG) 1 set
- Main machine 1 set
- Cooling water tank (stainless steel) 1 set
- Embossing machine 1set
- Two double-station winders 4 set
- Name: PP Strap Making Machine
- Plastic Strap Production Machine
- Polypropylene Banding Machine
- Polypropylene Strap Manufacture Equipment
Technical Parameters of PP strapping production line:
| Parameter |
Value |
| Plastic Processed |
PP |
| Applicable raw materials |
Recycled Material And Polypropylene |
| Gearbox |
200#(GUOMAO) |
| Paper core diameter |
Ø200*180mm |
| Speed |
260-300m/min |
| Strap Color |
Red/ Green/ Black/ Yellow/ White |
| Strap Width |
5-19mm |
|
Feeding bucket
|
100KG |
| Screw diameter (mm) |
110*3300mm |
Core Technology:
The use of a unique back tooth shaft, so that the packing belts are arranged neatly, no overlapping phenomenon, and no horn shape, so that the packing belt maintains a good straightness, which is more suitable for the use of automatic packing machines, and ensures that the automatic equipment feeds the belts.
FAQ:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
