Siemens Motor 5-19mm PP Strap Making Machine 100KW Power Consumption 0.4-1.2mm Strap Thickness
Product Description:

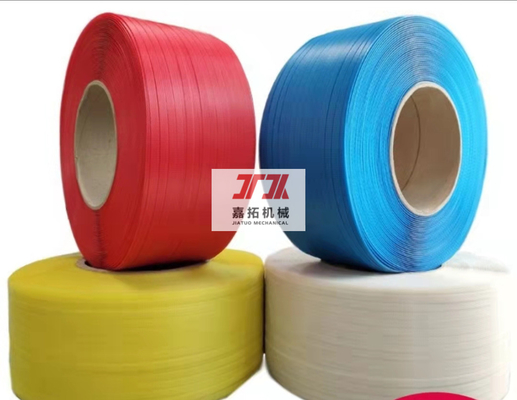

PP strapping tape production line is a high-end intelligent extrusion equipment that can produce PP tape: width: 5-19mm, thickness: 0.3-1.2mm
Raw materials-----PP strapping equipment can produce plastic raw materials:
100%recycled materials or PP polypropylene new materials to produce strapping tape;
Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping tape acceptance standards;
Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.
Technical Parameters:
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |

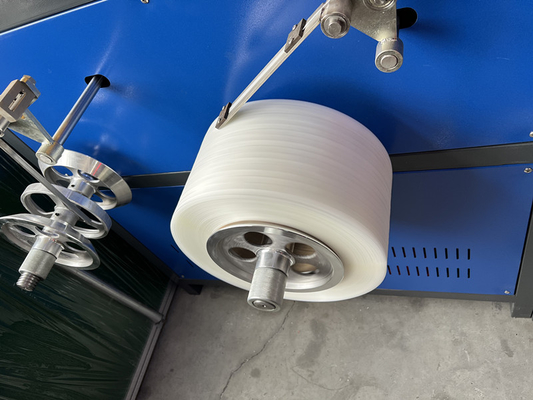

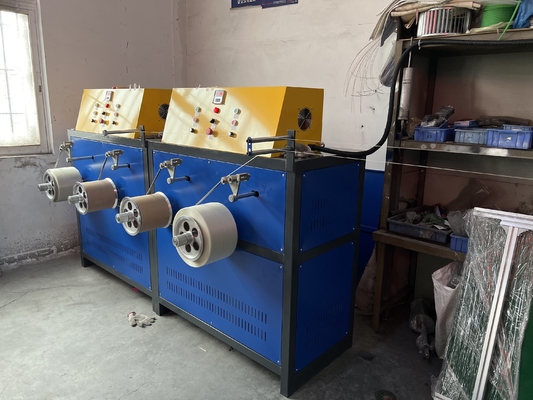

| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |

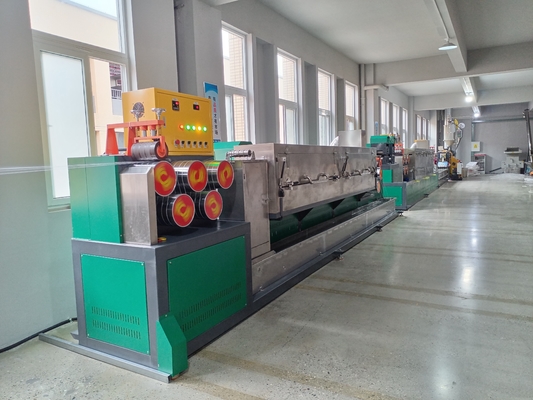

The main components of PP strapping equipment:
Feeder---- transfer PP raw materials into the machine.
Extruder----heat and melt the PP raw materials and extrude them into shape.
Molding mold---- make the molten PP tape embryo pass through the mold to form a strip.
Cooling water tank----cool the extruded PP tape embryo to ensure its shaping.
Tractor----pull out the cooled strapping tape to maintain a stable production speed.
Oven---- heat the strapping tape to improve its strength and toughness.
Support and Services:
PP Strap Making Machine Technical Support and Service
We provide technical support and service for the PP Strap Making Machine. Our team of highly-skilled engineers and technicians are available to address any questions or concerns you may have. Our goal is to ensure that you get the most out of your PP Strap Making Machine.
We provide comprehensive technical support and service for the PP Strap Making Machine, including:
- Installation and setup of the machine
- Diagnosis and troubleshooting of any technical issues
- Maintenance and repair of the machine
- Replacement of any defective parts
- Software updates and upgrades
We also offer training and support services to help you get the most out of the PP Strap Making Machine. Our team will provide you with the necessary training and support to ensure that you are able to maximize the performance of the machine. We also offer consulting services to help you identify potential improvements or modifications that can be made to the machine.
If you have any questions or concerns about the PP Strap Making Machine, please contact us and our team will be happy to assist you.
FQA:
Q: What are the specifications that the PP strapping production line can produce?
A: Width: 5-19mm, thickness: 0.3-1.2mm.
Q: What's the price of this machine please?
A: We have different extrusion capacities and different models, and the corresponding prices are also different.
Q:Can the length of the PP strapping production line be customized?
A: YES
Q:What is the transaction method of PP strapping production line?
EXW ,FOB,CIF
