High-Performance 100KW PP Strap Making Machine for 1-4 Strapping Production Line

High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line
High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line
High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line

Large Image :  High-Performance 100KW PP Strap Making Machine for 1-4 Strapping Production Line

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPP-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50set/month

High-Performance 100KW PP Strap Making Machine for 1-4 Strapping Production Line

Description
Product Type: PP Packing Belt Extrusion Line Raw Material: Polypropylene PP Raw Material Pellets, Recycled Pellets
Processing Type: Extruding Machine Screw Design: 1 To 2, 3, 4
Capacity: 200kg/h Power: 100KW
Driven Type: Electric Application: Packaging Strap
Automation: Automatic Warranty: 1 Year
Highlight:

100KW PP Strap Making Machine

,

4 Line PP Strap Making Machine

Auto 380V 50HZ PP Plastic Strap Production Line PP Strap Making Machine



PRODUCT DESCRIPTION



PP strapping production line 1 to 4 product parameters:

Name: PP 1 to 4 strapping production line

Model number: JTPP-110

Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials

Number of screws: 1 Screw

Number of extruded belts: 4

Width range: 5-19mm

Thickness range: 0.4-1.2mm

Production capacity: 200kg/h

Installation size: L38*W2.0*H4.0(m)

Model No. Screw Size No. of strap Capacity Total Power Width Range Thickness Range Installation Dimensions
JTPP-90 2800mm 2 100kg/h 80kw 5-19mm 0.4-1.2mm 30*2.0*4.0M
JTPP-100 2800mm 3 150kg/h 90kw 5-19mm 0.4-1.2mm 30*2.2*4.0M
JTPP-110 3300mm 4 200kg/h 100kw 5-19mm 0.4-1.2mm 38*2.0*4.0M
JTPP-110 3300mm 6 130kg/h 100kw 5-19mm 0.4-1.2mm 38*2.0*4.0M

High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line 0

Advantage of our machine

  • PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and

drying that save a large number of equipment investment and reduce the production cost by 30%;

  • Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;

  • With the multi-purpose machine, produce the PP PET straps in different specifications directly and don not need to change the mould head;

  • Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock

resistance are up to the international grade;

  • Low Energy consumption, but high production capability;

  • Easy to operate, save the manpower and two persons for one production line on average.

High-Performance 100KW  PP Strap Making Machine for 1-4 Strapping Production Line 1

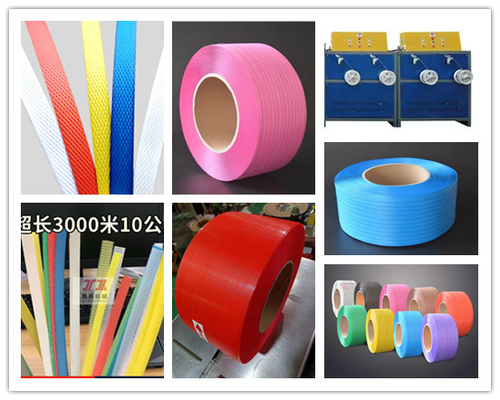

Features of PP strapping production line:

1. It is suitable for all levels of recycled plastic particles, and produces sandwich belts and PP environmentally friendly packing belts;
2. It can be used to directly produce manual packing belts;
3. It can also be directly processed into hand-use, machine-use, printing packing tape, ultra-wide, ultra-thin, ultra-narrow, transparent, dyeing, and printing PP packing tape;
4. It is currently the most cost-effective and competitive product on the market, and is popular among small and medium-sized investors;
5. It can produce all kinds of manual belts, machine-use PP packing belts and export belts.

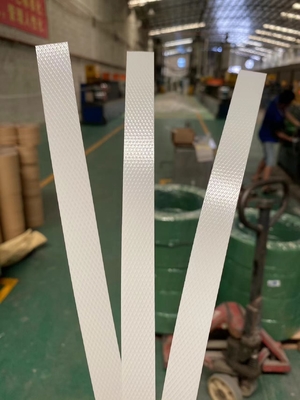

Model Strap Width Strap Thickness Break Load Net Weight Strap Length Core Size
PP05005 5mm 0.5mm >40kg 10kg >6700M 200mm
PP06006 6mm 0.6mm >50kg 10kg >5800M 200mm
PP08005 8mm 0.5mm >60kg 10kg >3600M 200mm
PP09005 9mm 0.5mm >80kg 10kg >3300M 200mm
PP09006 9mm 0.6mm >90kg 10kg >3000M 200mm
PP09007 9mm 0.7mm >100kg 10kg >2500M 200mm
PP09008 9mm 0.8mm >120kg 10kg >2300M 200mm
PP12006 12mm 0.6mm >120kg 10kg >2300M 200mm
PP12007 12mm 0.7mm >130kg 10kg >2000M 200mm
PP12008 12mm 0.8mm >150kg 10kg >1660M 200mm
PP13506 13.5mm 0.6mm >130kg 10kg >2000M 200mm
PP13507 13.5mm 0.7mm >150kg 10kg >1700M 200mm
PP13508 13.5mm 0.8mm >160kg 10kg >1440M 200mm
PP13510 13.5mm 1.0mm >170kg 10kg >1250M 200mm
PP15005 15mm 0.5mm >130kg 10kg >2100M 200mm
PP15006 15mm 0.6mm >140kg 10kg >1830M 200mm
PP15008 15mm 0.8mm >160kg 10kg >1250M 200mm
PP15010 15mm 1.0mm >180kg 10kg >1100M 200mm
PP18008 18mm 0.8mm >220kg 10kg >1100M 200mm


FAQ



Q1:Are you a trading company or a manufactory?

A1:We are a manufactory,can give u best service.


Q2:When can I get my machine after I paid?

A2:We will deliver the machines on time as the date we agreed both side.



Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.



Q4:What's your guarantee or the warranty of the quality if we buy your machines?

A4:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years.



Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
