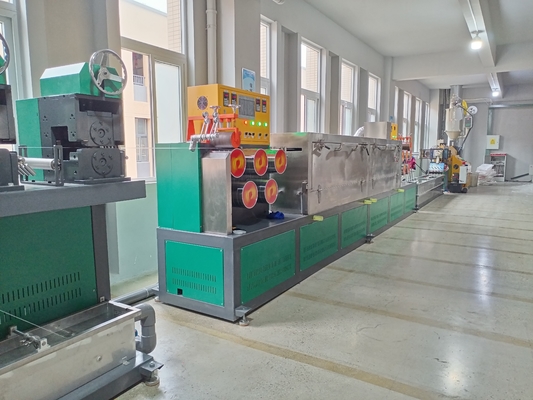

Customized 5-19mm PP strapping production machine PP PET strapping production line in advanced equipment and technology
PP Plastic Packing Belt Making Machine PET Strap Tape Extruding Machine
Quick Detail Of PP Strap Making Machine
1) The raw materials of PP strapping equipment do not need to be dried and treated separately. This machine is equipped with an automatic cycle preheating and drying system, which saves a lot of equipment investment and reduces production costs by 30%;
2) The PP strapping production line is produced with: 100% new materials or recycled materials, which greatly reduces costs;
3) The raw materials of the PP strapping production line can be added with other calcium carbonate materials to reduce production costs.
4) The PP strapping production line has the advantages of low energy consumption, high output, and intelligent operation.
5) The PP strapping production line is easy to operate, PLC microcomputer control, simple operation, and easy debugging.
EXTRUSION PARAMETERS TABLE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Features Of Plastic PP Extrusion Line

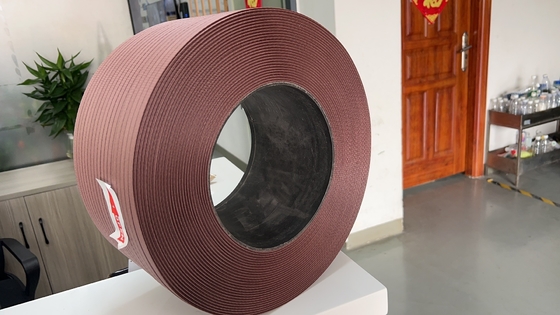

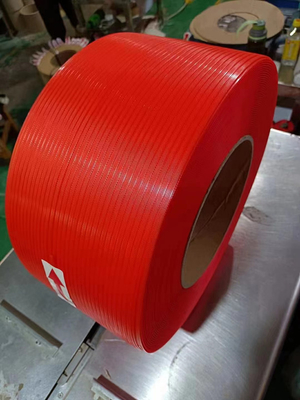

All kinds of packing belts produced by the company can be used for all kinds of automatic unmanned baling machines at home and abroad. High precision embossing wheel, clear embossing, more color, more beautiful.

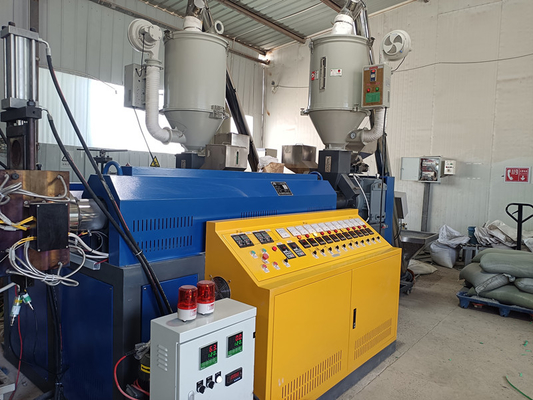

High precision and high quality screw, unique PLC control system, with large extrusion capacity, good plasticizing, high hardness, wear resistance and other characteristics.
Foreign CNC machine tool cutting, high precision die parts, so that the product quality stability, thickness error range is less than the "plastic packaging belt acceptance standard".
Features of embossing wheel:
1. The embossing wheel is nitrided and heat-treated to achieve a surface hardness of 60 degrees, which is strong and durable. The surface texture of the strapping tape pressed out by this embossing machine is clear and rough enough, and the automatic strapping machine uses strong belt feeding.
2. The upper and lower flower wheels of the embossing machine are equipped with synchronous gears to ensure synchronous rotation of the upper and lower wheels, ensuring that the flower spinning on both sides of the strapping tape is completely consistent, increasing the beauty and transparency of the strapping tape.
3. When assembling the upper and lower flower wheels, a fixed gap is left to prevent collision, which extends the service life of the flower wheels
About us:
We have more than 30 years of manufacturing experience in the PP/PET strapping industry, and our R&D and after-sales personnel often go abroad to study;
We are a manufacturing factory with our own production workshop, and all accessories are processed by our own lathes.
We have our own production team, R&D team, after-sales team, sales team, etc.
The quality of the machines we produce is stable and the after-sales service is guaranteed.
FAQ
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
