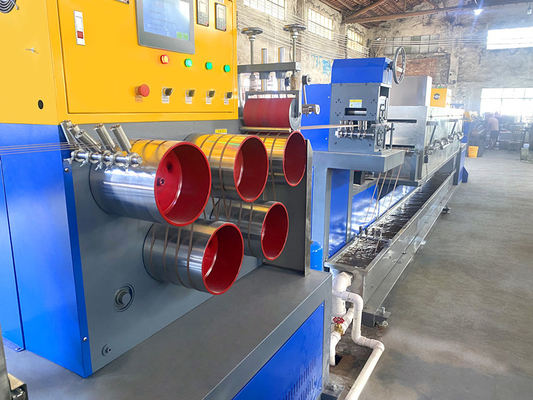

High Efficiency PP Packing Belt Machine PP Strap Production Line With Automatic Control

High Efficiency PP packing belt production equipment with Automatic Control

Product Description of PP Strap Manufacturing Machine:

The PP strapping tape production line is a high-end intelligent equipment with a PLC control system, a special screw for the extruder, a non-stop screen changer, etc. The PP strapping tapes produced are of consistent specifications and beautiful appearance, and are widely used in many industries.

1. Raw materials-----PP strapping equipment can produce plastic raw materials: recycled materials or PP polypropylene new materials to produce strapping tape;

2. Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping tape acceptance standards;

3. Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.

4. PLC system----The equipment adopts an intelligent PLC Chinese/English version control system, which is simple and easy to understand, beautiful and generous, sturdy and durable, long life, and low failure rate. The equipment has an exclusive parameter memory system, which can store data after each specification is produced, and the parameters can be directly adjusted during the next production.

Features of PP Strap Manufacturing Machine:

• Product Name: PP Strap Making Machine
• Strap Width: 5-19mm
• Screw diameter (mm): 1110*3300mm
• Gearbox model:200#
• Raw material:Polypropylene PP raw material pellets, recycled pellets.
• Motor power: 37kw (Siemens)
• Host inverter:37kw (INVT)
• Screen changer: Non-stop screen changer
• pp strapping band making machine
• strapping band making machine
• pp strap manufacturing machine
• pp strapping band making machine

Technical Parameters of PP Strap Manufacturing Machine:

Applications of PP Strap Manufacturing Machine:

• The raw materials of the PP strapping production line can be recycled materials or mixed new materials to produce PP strapping.
  2.High-precision and high-quality screw, using well-known brands, unique parameter design, large extrusion, good plasticization, high hardness, good wear resistance. Equipped with a quantitative extrusion system. The width and thickness of the belt are the same, and its error range is small, which meets the national acceptance standards for strapping;
  3.Foreign high-quality CNC machine tools and high-precision mold parts cutting make the product molding more qualified

Process flow  of PP Strap Manufacturing Machine

① Feeding →② stirring →③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven preheating →⑦ primary stretching →⑧ secondary stretching →⑨ embossening → oven tempering and setting → cooling → finished product winding

Support and Services of PP Strap Manufacturing Machine
